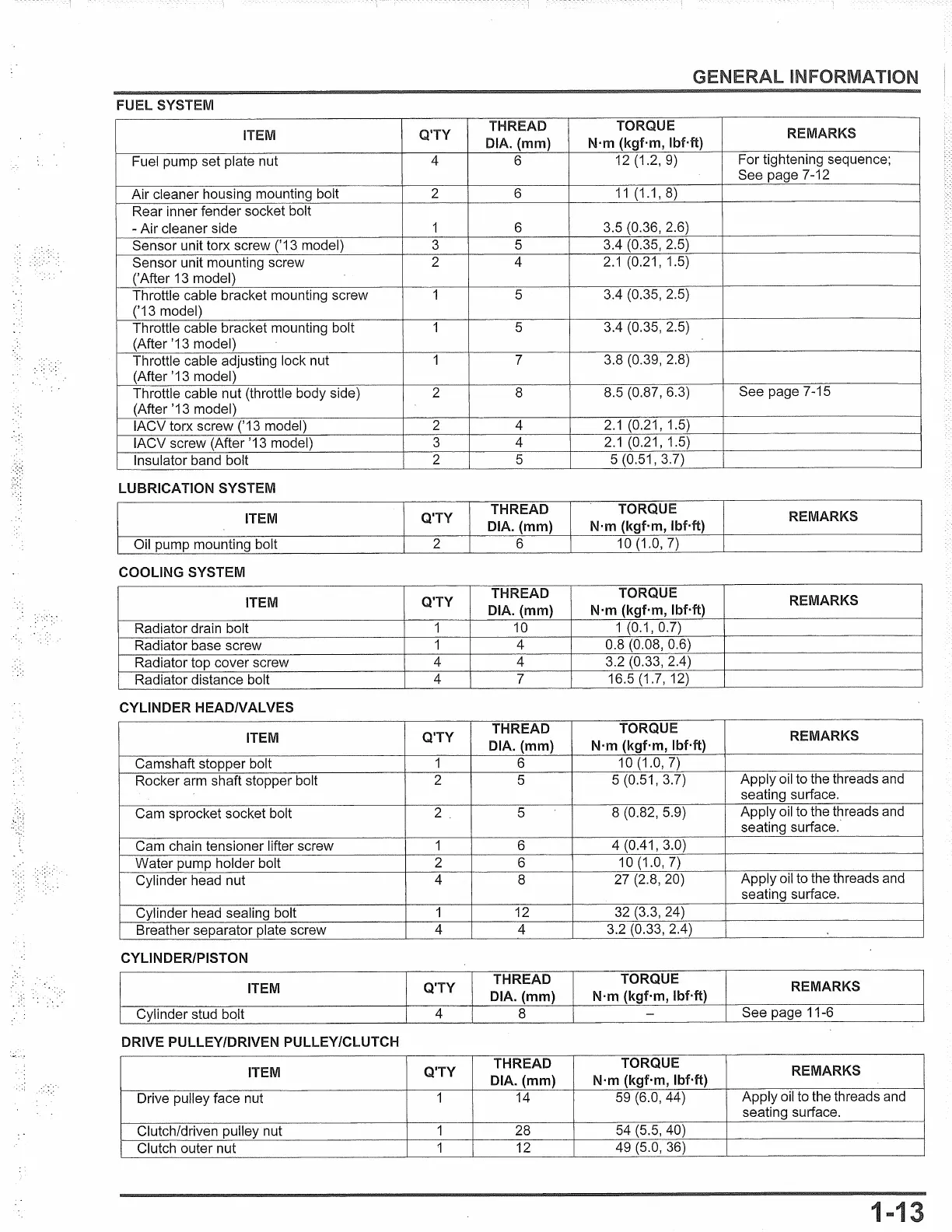

INFORMATION
FUEL
SYSTEM
ITEM
Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m, lbMt)
Fuel pump set plate nut
4
6 12 (1.2,
9)
For tightening sequence;
See page 7-12
Air cleaner housing mounting bolt
2
6
11
(1.1,
8)
Rear inner fender socket bolt
- Air cleaner side
1 6 3.5 (0.36, 2.6)
Sensor unit torx screw ('13 model)
3
5 3.4 (0.35, 2.5)
Sensor unit mounting screw
2
4
2.1
(0.21, 1.5)
('After 13 model)
Throttle cable bracket mounting screw
1
5
3.4 (0.35, 2.5)
('13 model)
Throttle cable bracket mounting bolt
1 5 3.4 (0.35, 2.5)
(After '13 model)
Throttle cable adjusting lock nut
1
7 3.8 (0.39, 2.8)
(After '13 model)
Throttle cable nut (throttle body side)
2 8 8.5 (0.87, 6.3)
See page 7-15
(After '13 model)
IACV torx screw ('13 model)
2
4
2.1
(0.21, 1.5)
IACV screw (After '13 model)
3
4
2.1
(0.21, 1.5)
Insulator band bolt
2 5 5 (0.51, 3.7)
LUBRICATION SYSTEM
ITEM Q'TY
THREAD
TORQUE
REMARKS
DIA. (mm) N·m (kgf-m, lbf·ft)
Oil pump mounting bolt
2 6
10(1.0,7)
COOLING SYSTEM
ITEM Q'TY
THREAD
TORQUE
REMARKS
DIA. (mm) N·m (kgf·m, lbf·ft)
Radiator drain bolt
1 10
1(0.1,0.7)
Radiator base screw
1
4
0.8 (0.08, 0.6)
Radiator top cover screw
4 4 3.2 (0.33, 2.4)
Radiator distance bolt
4
7
16.5 (1.7, 12)
CYLINDER HEAD/VALVES
ITEM
Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m, lbf·ft)
Camshaft stopper bolt
1
6 10 (1.0,
7)
Rocker arm shaft stopper bolt
2 5 5 (0.51, 3.7) Apply oil to the threads and
seating surface.
Cam sprocket socket bolt
2
5 8 (0.82, 5.9)
Apply oil to the threads and
seating surface.
Cam chain tensioner lifter screw
1
6
4 (0.41, 3.0)
Water pump holder bolt
2
6
10(1.0,7)
Cylinder head nut
4
8 27 (2.8, 20)
Apply oil to the threads and
seating surface.
Cylinder head sealing bolt
1
12
32 (3.3, 24)
Breather separator plate screw
4
4
3.2 (0.33, 2.4)
CYLINDER/PISTON
ITEM
Q'TY
THREAD
TORQUE
REMARKS
DIA. (mm) N·m (kgf·m, lbf·ft)
Cylinder stud bolt
4
8
-
See page 11-6
DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
ITEM
Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m, lbf·ft)
Drive pulley face nut
1 14 59 (6.0, 44) Apply oil to the threads and
seating surface.
Clutch/driven pulley nut
1
28
54 (5.5, 40)
Clutch outer nut
1
12
49 (5.0, 36)
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
