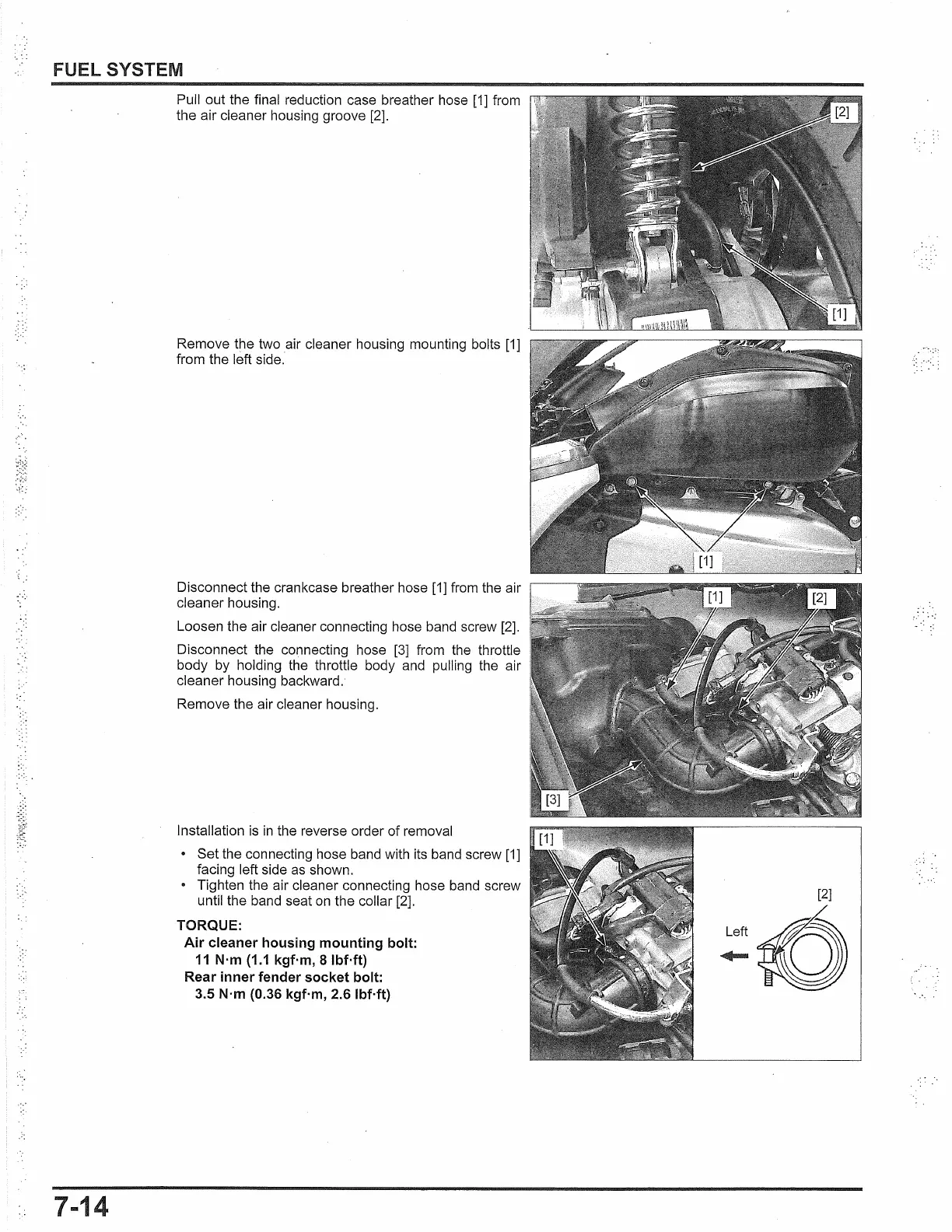

FUEL SYSTEM
7-14
Pull out the final reduction case breather hose
[1]
from
the air cleaner housing groove [2].
Remove the two air cleaner housing mounting bolts [1]
from the left side.
Disconnect the crankcase breather hose [1] from the air
cleaner housing.
Loosen the air cleaner connecting hose band screw
[2].
Disconnect the connecting hose
[3]
from the throttle
body by holding the throttle body and pulling the air
cleaner housing backward.
Remove the air cleaner housing.
Installation
is
in
the reverse order of removal
• Set the connecting hose band with
its
band screw
[1]
facing left side
as
shown.
Tighten the air cleaner connecting hose band screw
until the band seat
on
the collar [2].
TORQUE:
Air cleaner housing mounting bolt:
11
N·m
(1.1
kgf·m, 8
lbMt)
Rear inner fender socket bolt:
3.5 N·m (0.36 kgf·m, 2.6 lbf·ft)
[2]
~o
