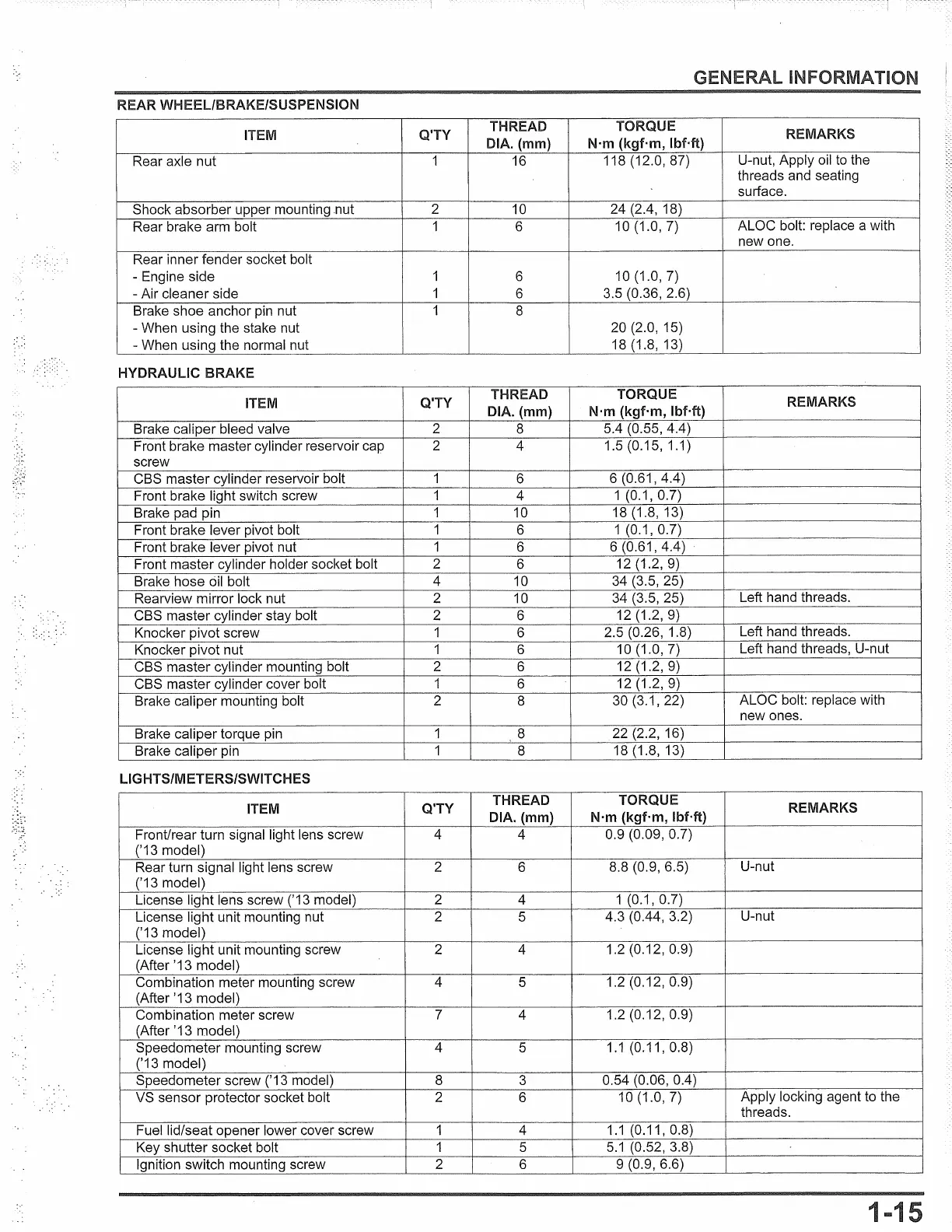

INFORMATION
REAR WHEEL/BRAKE/SUSPENSION
ITEM Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m,
lbMt)
Rear axle nut
1
16
118(12.0,87)
U-nut, Apply oil
to
the
threads and seating
surface.
Shock absorber upper mounting
.nut
2
10
24 (2.4, 18)
Rear brake arm bolt
1 6 10 (1.0, 7)
ALOC bolt: replace a with
new one.
Rear inner fender socket bolt
- Engine side
1
6
10
(1.0, 7)
- Air cleaner side
1
6
3.5 (0.36, 2.6)
Brake shoe anchor pin nut
1
8
- When using the stake nut
20 (2.0, 15)
- When using the normal nut
18(1.8,13)
HYDRAULIC
BRAKE
ITEM Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m,
lbMt)
Brake caliper bleed valve
2 8
5.4 (0.55, 4.4)
Front brake master cylinder reservoir cap
2
4
1.5 (0.15, 1.1)
screw
CBS master cylinder reservoir bolt
1 6
6 (0.61, 4.4)
Front brake light switch screw
1 4
1 (0.1,0.7)
Brake pad pin
1
10
18(1.8,13)
Front brake lever pivot bolt
1 6
1(0.1,0.7)
Front brake lever pivot nut
1 6 6 (0.61, 4.4)
Front master cylinder holder socket bolt
2 6
12 (1.2,
9)
Brake hose
oil
bolt
4
10
34 (3.5, 25)
Rearview mirror lock nut
2
10
34 (3.5, 25)
Left hand threads.
CBS master cylinder stay bolt
2 6 12 (1.2,
9)
Knocker pivot screw
1
6
2.5 (0.26, 1.8)
Left hand threads.
Knocker pivot nut
1 6
10(1.0,7)
Left hand threads, U-nut
CBS master cylinder mounting bolt
2 6 12 (1.2,
9)
CBS master cylinder cover bolt
1
6
12 (1.2,
9)
Brake caliper mounting bolt
2
8
30 (3.1, 22)
ALOC bolt: replace with
new ones.
Brake caliper torque pin
1 8 22 (2.2, 16)
Brake caliper pin
1
8
18(1.8,13)
LIGHTS/METERS/SWITCHES
ITEM Q'TY
THREAD TORQUE
REMARKS
DIA. (mm) N·m (kgf·m,
lbMt)
Front/rear turn signal light lens screw
4 4
0.9 (0.09, 0.7)
('13 model)
Rear turn signal light lens screw
2 6 8.8 (0.9, 6.5)
U-nut
('13 model)
License light lens screw ('13 model)
2
4
1 (0.1, 0.7)
License light unit mounting nut
2
5
4.3 (0.44, 3.2)
U-nut
('13 model)
License light unit mounting screw
2
4
1.2 (0.12, 0.9)
(After '13 model)
Combination meter mounting screw
4 5
1.2 (0.12, 0.9)
(After '13 model)
Combination meter screw
7
4
1.2 (0.12, 0.9)
(After '13 model)
Speedometer mounting screw
4 5
1.1
(0.11, 0.8)
('13 model)
Speedometer screw ('13 model)
8 3 0.54 (0.06, 0.4)
VS
sensor protector socket bolt
2 6 10 (1.0, 7)
Apply locking agent to the
threads.
Fuel lid/seat opener lower cover screw
1 4
1.1
(0.11, 0.8)
Key shutter socket bolt
1 5
5.1
(0.52, 3.8)
Ignition switch mounting screw
2 6 9 (0.9, 6.6)
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
