Honda PCX150 2013 User Manual

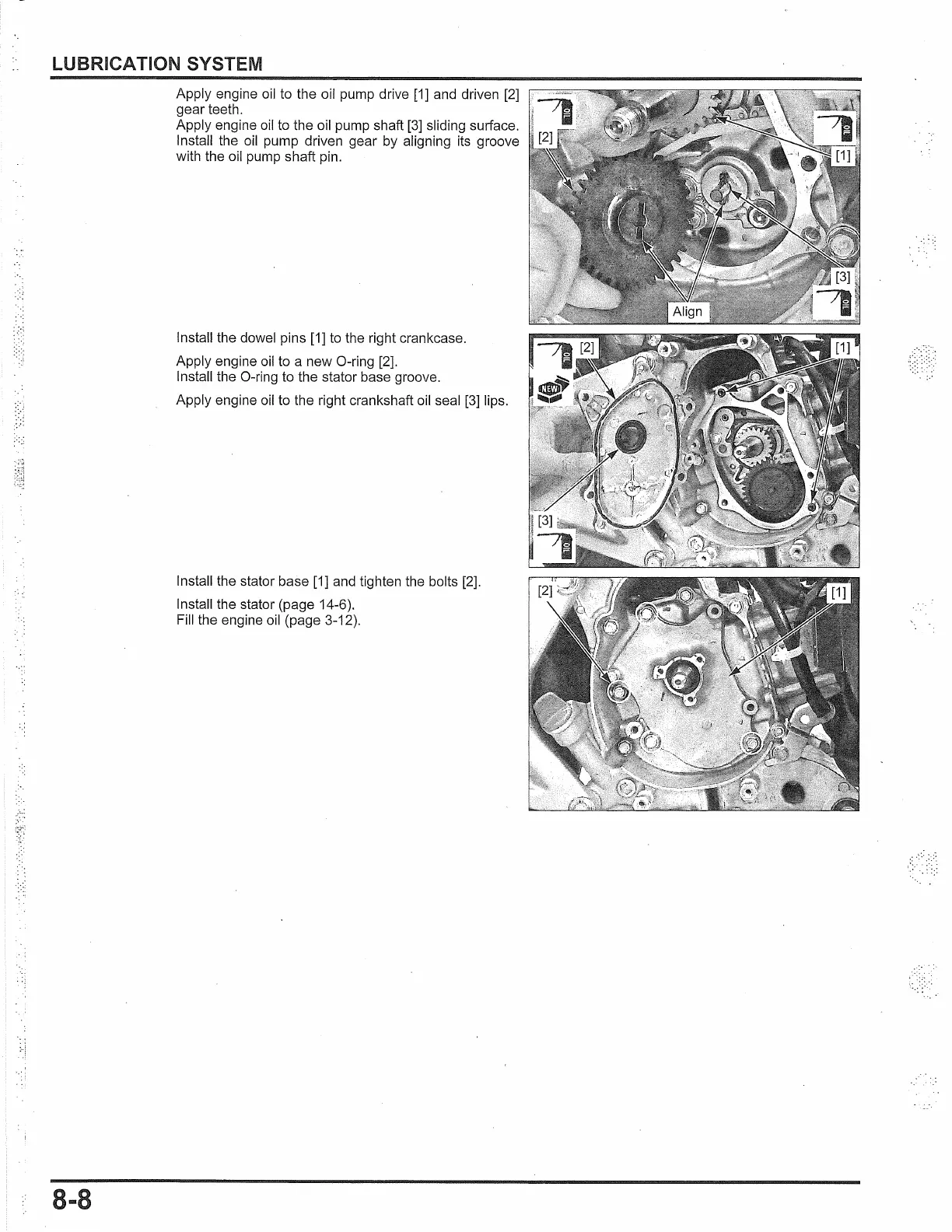

LUBRICATION SYSTEM
8-8
Apply engine oil to the oil pump drive
[1]
and driven [2]
gear teeth.
Apply engine oil to the oil pump shaft
[3]
sliding surface.
Install the oil pump driven gear by aligning its groove
with the oil pump shaft pin.
Install the dowel pins [1] to the right crankcase.
Apply engine oil to a new 0-ring [2].
Install the 0-ring to the stator base groove.
Apply engine oil to the right crankshaft oil seal
[3]
lips.
Install the stator base [1] and tighten the bolts [2].
Install the stator (page 14-6).
Fill the engine oil (page 3-12).

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
