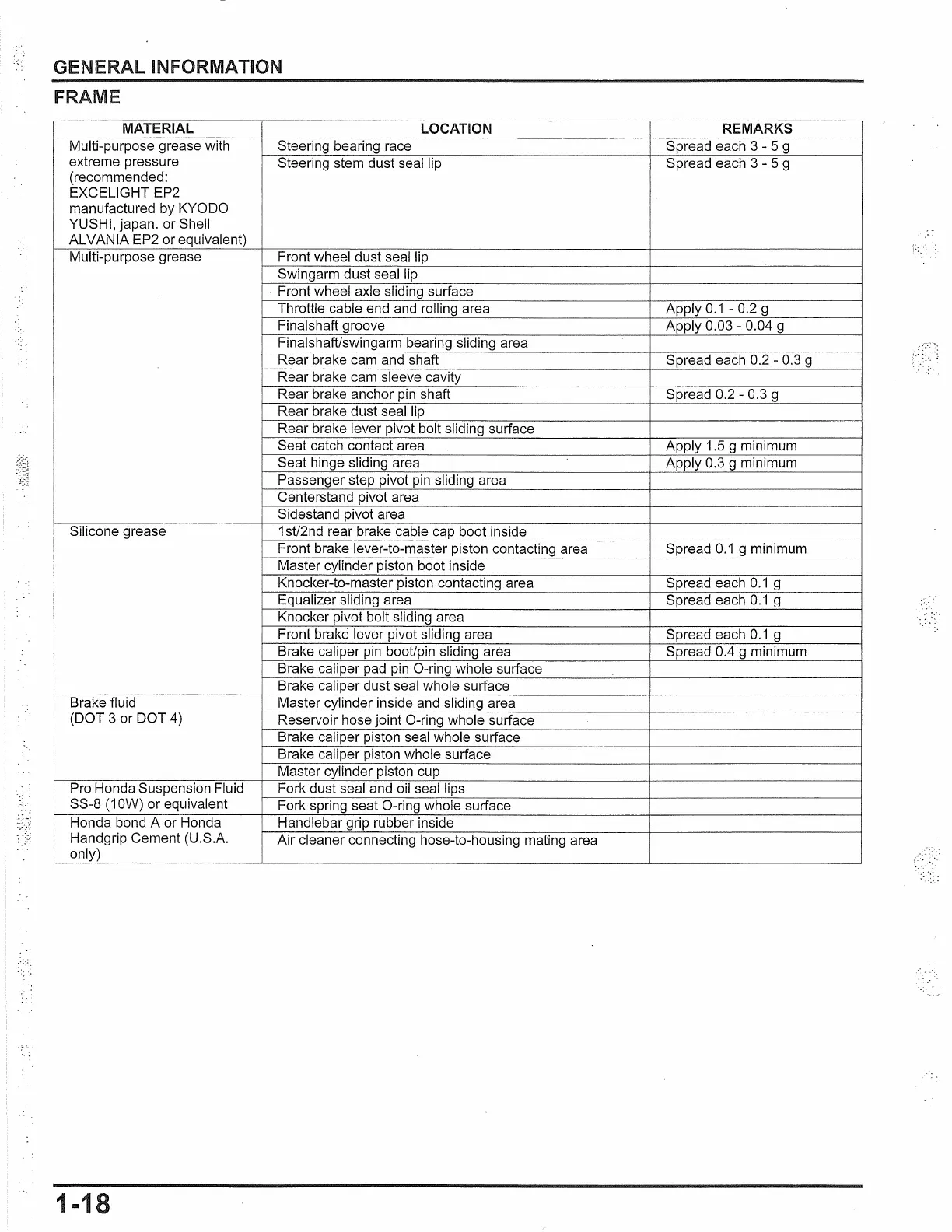

GENERAL INFORMATION
FRAME
MATERIAL LOCATION REMARKS
Multi-purpose grease with Steering bearing race
Spread each 3 - 5 g
extreme pressure
Steering stem dust seal lip Spread each 3 - 5 g
(recommended:
EXCELIGHT EP2
manufactured by KYODO
YUSHI, japan. or Shell
AL VAN IA EP2 or equivalent)
Multi-purpose grease Front wheel dust seal lip
Swingarm dust seal lip
Front wheel axle sliding surface
Throttle cable end and rolling area
Apply
0.1
- 0.2 g
Finalshaft groove
Apply 0.03 - 0.04 g
Finalshaft/swingarm bearing sliding area
Rear brake cam and shaft Spread each 0.2 - 0.3 g
Rear brake cam sleeve cavity
Rear brake anchor pin shaft
Spread 0.2 - 0.3 g
Rear brake dust seal lip
Rear brake lever pivot bolt sliding surface
Seat catch contact area
Apply 1.5 g minimum
Seat hinge sliding area
Apply 0.3 g minimum
Passenger step pivot pin sliding area
Centerstand pivot area
Sidestand pivot area
Silicone grease 1st/2nd rear brake cable cap boot inside
Front brake lever-to-master piston contacting area Spread
0.1
g minimum
Master cylinder piston boot inside
Knocker-to-master piston contacting area Spread each
0.1
g
Equalizer sliding area Spread each
0.1
g
Knocker pivot bolt sliding area
Front brake lever pivot sliding area
Spread each
0.1
g
Brake caliper pin boot/pin sliding area Spread 0.4 g minimum
Brake caliper pad pin 0-ring whole surface
Brake caliper dust seal whole surface
Brake fluid Master cylinder inside and sliding area
(DOT 3 or DOT
4)
Reservoir hose joint 0-ring whole surface
Brake caliper piston seal whole surface
Brake caliper piston whole surface
Master cylinder piston cup
Pro Honda Suspension Fluid
Fork dust seal and oil seal lips
SS-8
(1
OW)
or equivalent
Fork spring seat 0-ring whole surface
Honda bond A or Honda Handlebar grip rubber inside
Handgrip Cement (U.S.A.
only)
Air cleaner connecting hose-to-housing mating area
1-18
