To prevent loss of
tension, do not
compress the valve
spring more than
necessary
to install
the cotters.

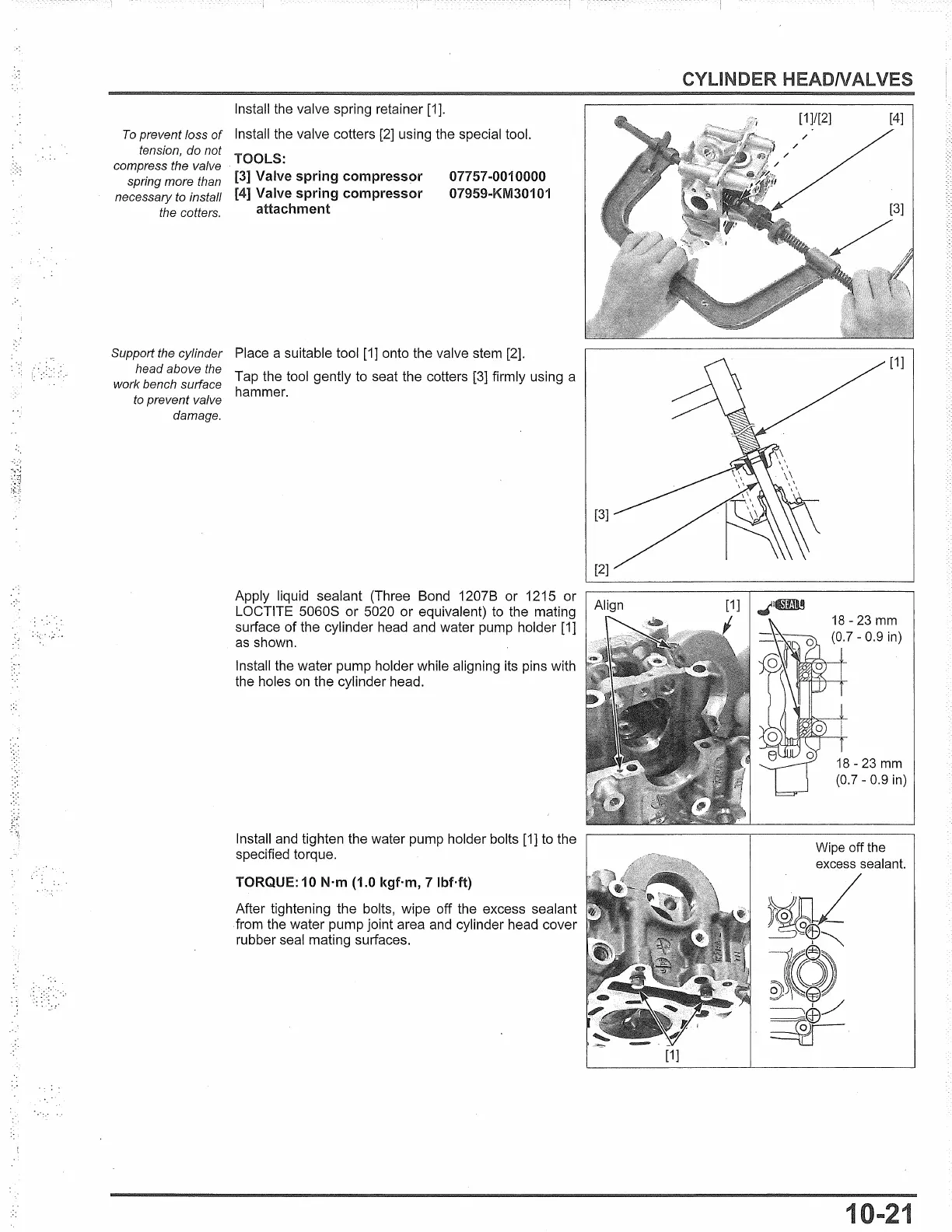

Install the valve spring retainer [1].
Install the valve cotters [2] using the special tool.
TOOLS:
[3] Valve spring compressor
[4] Valve spring compressor
attachment
07757 -0010000
07959-KM30101
Support the cylinder Place a suitable tool [1] onto the valve stem [2].
head above the
work bench surface
Tap the tool gently to seat the cotters [3] firmly using a
to prevent valve
damage.
hammer.
Apply liquid sealant (Three Bond 1207B or 1215 or
LOCTITE 5060S or 5020 or equivalent)
to the mating
surface of the cylinder head and water pump holder
[1]
as shown.
Install the water pump holder while aligning its pins with
the holes
on the cylinder head.
Install and tighten the water pump holder bolts
[1] to the
specified torque.
TORQUE: 10 N·m (1.0 kgf·m, 7 lbHt)
After tightening the bolts, wipe off the excess sealant
from the water pump joint area and cylinder head cover
rubber seal mating surfaces.
[3]
[2]
Align
-
[1]
CYLINDER
[1]
18 - 23 mm
(0.7 - 0.9 in)
18-23mm
(0.7 - 0.9 in)
Wipe off the
excess sealant.
~
IQ)
-,®_/
~
1 1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
