Honda PCX150 2013 User Manual

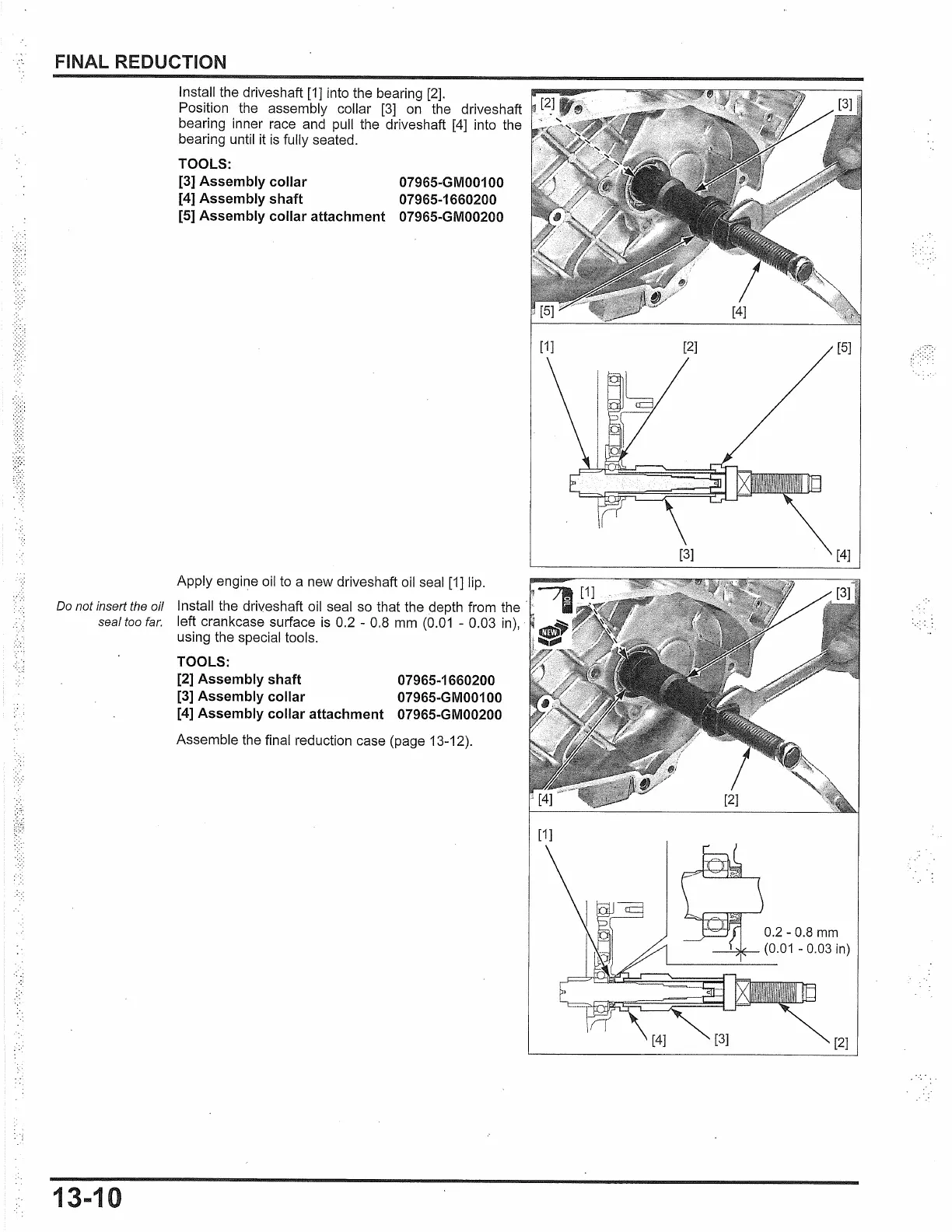

FINAL REDUCTION
Install the driveshaft
[1]
into the bearing
[2].
Position the assembly collar
(3]
on
the driveshaft
bearing inner race and pull the driveshaft
[4]
into the
bearing until it
is
fully seated.
TOOLS:
[3] Assembly collar 07965-GM00100
[4] Assembly shaft 07965-1660200
[5] Assembly collar attachment 07965-GM00200
Apply engine
oil
to
a new driveshaft oil seal
[1]
lip.
Do not insert the oil
Install the driveshaft oil seal
so
that the depth from the
seal too
far.
left crankcase surface
is
0.2 - 0.8
mm
(0.01
- 0.03
in),
1
using the special tools.
TOOLS:
[2] Assembly shaft 07965-1660200
[3] Assembly collar 07965-GM00100
[4] Assembly collar attachment 07965-GM00200
Assemble the final reduction case (page 13-12).
13-10
[1]
[2]
[5]
[4]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
