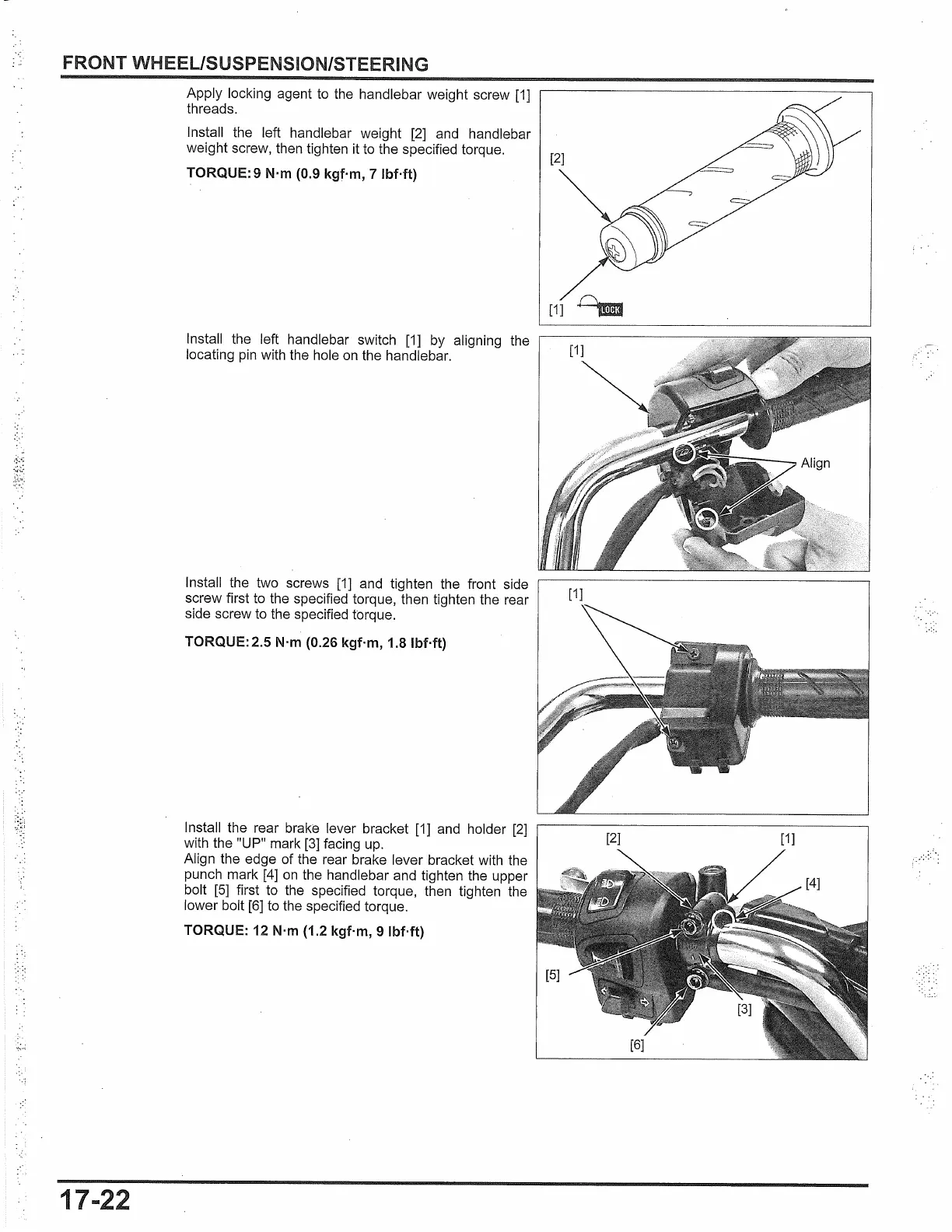

FRONT WHEEL/SUSPENSION/STEERING
17-22
Apply locking agent
to
the handlebar weight screw
[1]
threads.
Install the left handlebar weight
[2]
and
handlebar
weight screw, then tighten it to the specified torque.
TORQUE: 9 N·m (0.9 kgf·m, 7
lbHt)
Install the left handlebar switch [1] by aligning the
locating
pin
with the hole
on
the handlebar.
Install the two screws
[1]
and tighten the front side
screw first
to
the specified torque, then tighten the rear
side screw
to
the specified torque.
TORQUE: 2.5 N·m (0.26 kgf.m, 1.8
lbHt)
Install the rear brake lever bracket [1] and holder
[2]
with the
"UP"
mark
[3]
facing
up.
Align the edge of the rear brake lever bracket with the
punch mark
[4]
on
the handlebar and tighten the upper
bolt
[5]
first
to
the specified torque, then tighten the
lower bolt
[6]
to
the specified torque.
TORQUE: 12 N·m (1.2 kgf-m, 9
lbHt)
-
'
---=
[2]
_,.=:::::_:;,
c:=--
[1]
[2]
[1]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
