Honda PCX150 2013 User Manual

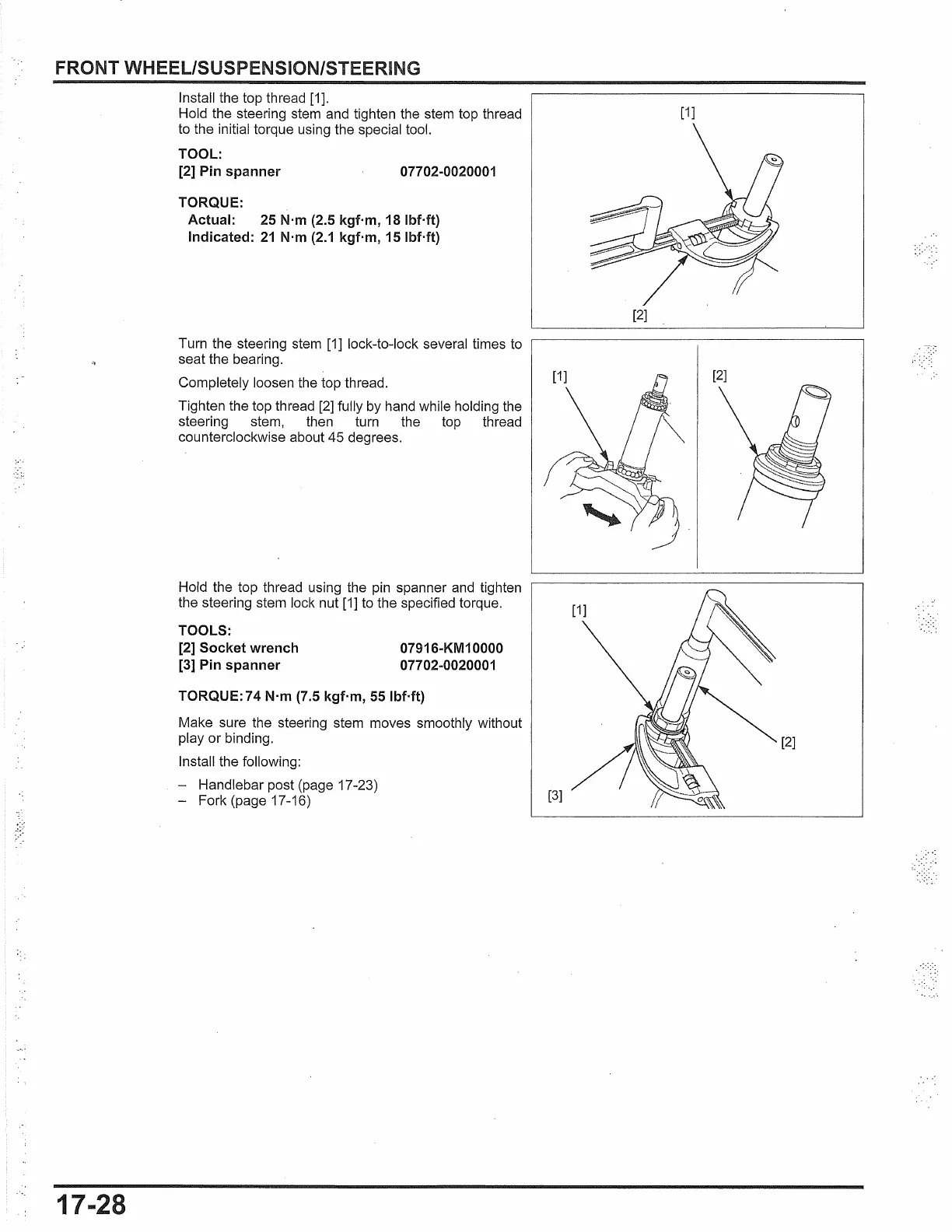

FRONT WHEEL/SUSPENSION/STEERING
17-28
Install the top thread [1].
Hold the steering stem and tighten the stem top thread
to the initial torque using the special tool.
TOOL:
[2] Pin spanner
07702-0020001
TORQUE:
Actual: 25 N·m (2.5 kgf·m, 18 lbMt)
Indicated:
21
N·m
(2.1
kgf·m, 15 lbMt)
Turn the steering stem [1] lock-to-lock several times to
seat the bearing.
Completely loosen the top thread.
Tighten the top thread
[2]
fully by hand while holding the
steering stem, then turn the top thread
counterclockwise about 45 degrees.
Hold the top thread using the pin spanner and tighten
the steering stem lock nut
[1]
to
the specified torque.
TOOLS:
[2]
Socket wrench
[3] Pin spanner
07916-KM10000
07702-0020001
TORQUE: 74 N·m (7.5 kgf·m, 55 lbMt)
Make sure the steering stem moves smoothly without
play or binding.
Install the following:
- Handlebar post (page 17-23) [
3
]
- Fork (page 17-16)
[1]
[2]
[2]
[2]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
