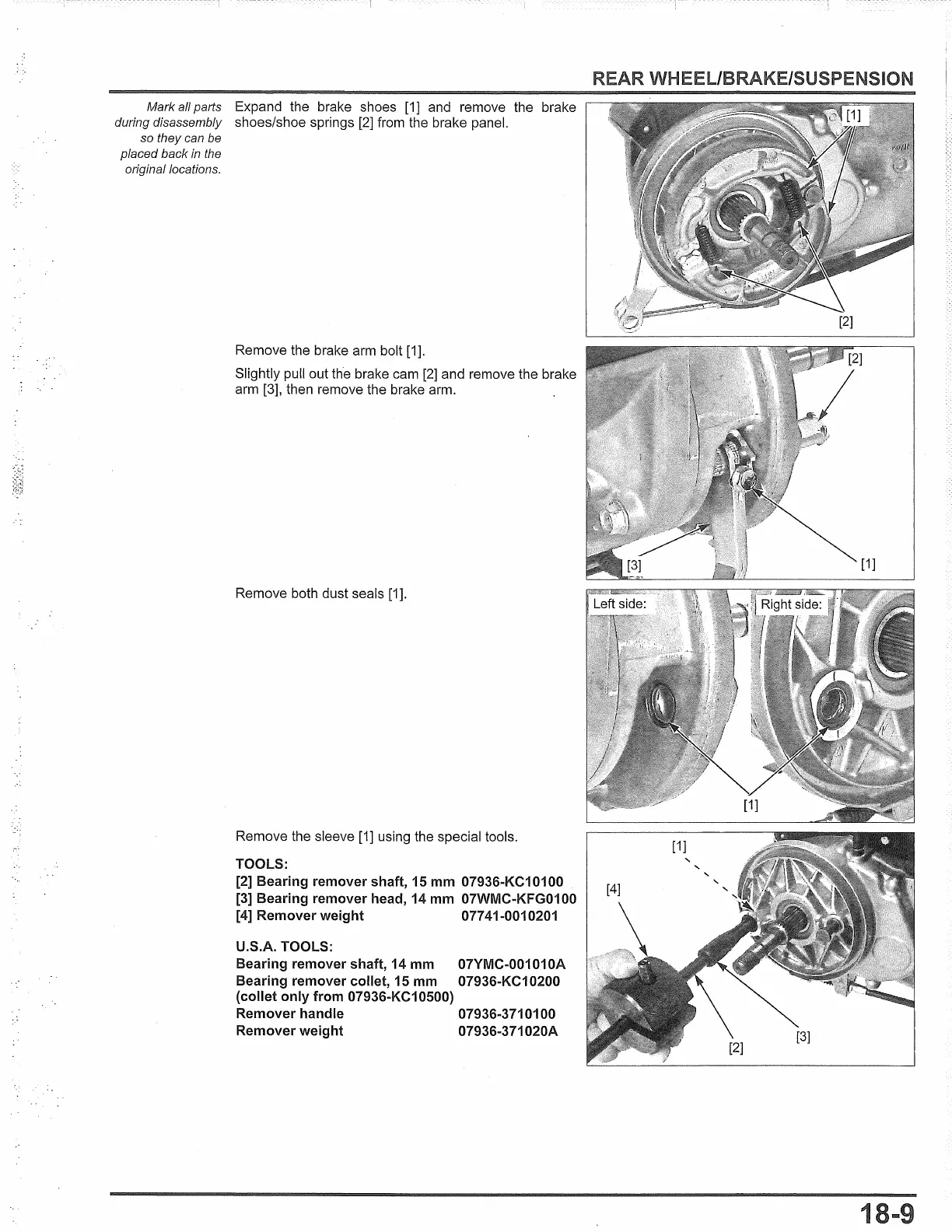

Mark all parts Expand the brake shoes [1] and remove the brake
during disassembly shoes/shoe springs [2] from the brake panel.
so they can be
placed back in the
original locations.
Remove the brake arm bolt [1 ].
Slightly pull out the brake cam [2] and remove the brake
arm [3], then remove the brake arm.
Remove both dust seals [1].
Remove the sleeve
[1] using the special tools.
TOOLS:
[2] Bearing remover shaft, 15 mm 07936-KC10100
[3] Bearing remover head, 14 mm 07WMC-KFG0100
[4] Remover weight 077 41-0010201
U.S.A. TOOLS:
Bearing remover shaft, 14
mm 07YMC-00101 OA
Bearing remover collet, 15 mm 07936-KC10200
(collet only from 07936-KC10500)
Remover handle 07936-3710100
Remover weight 07936-371020A
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
