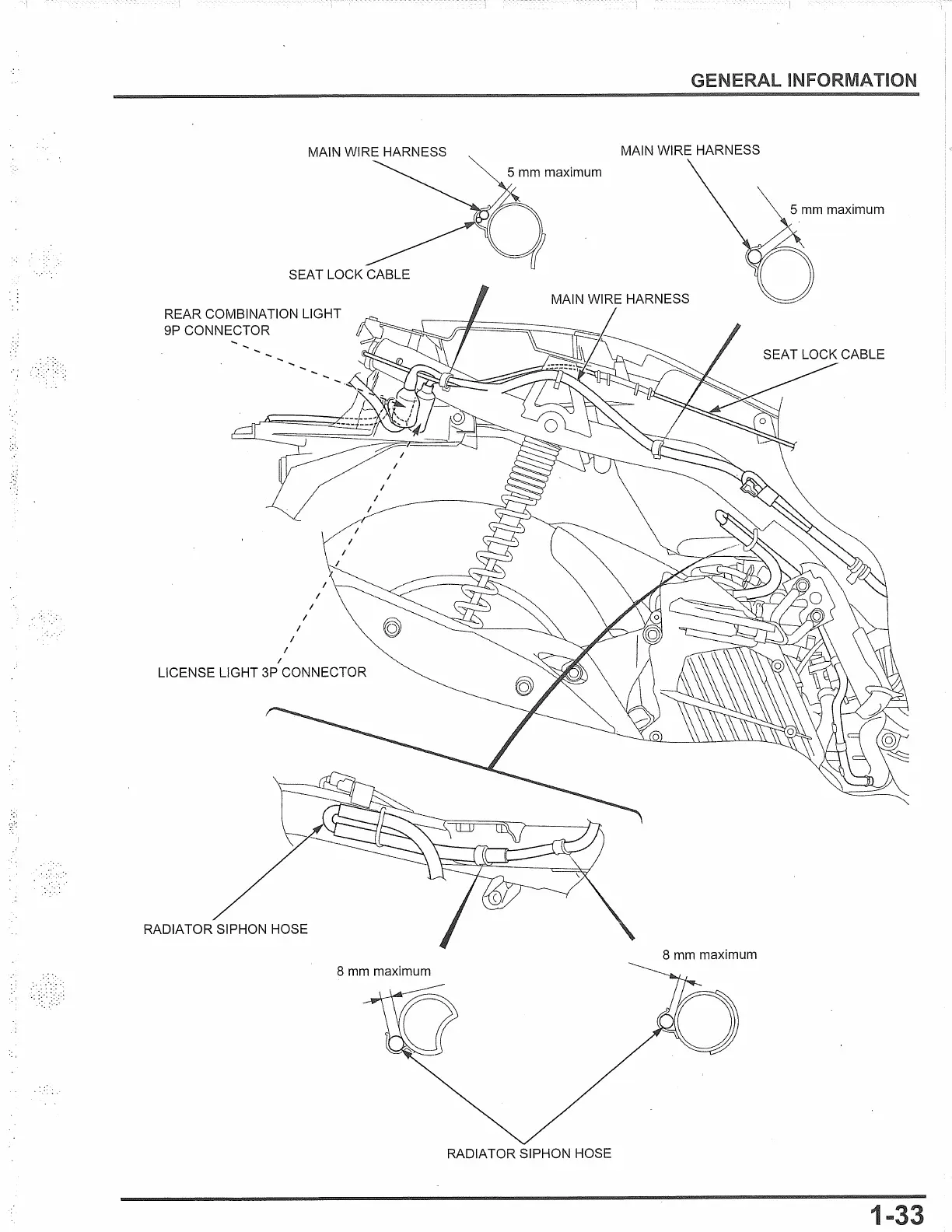

MAIN WIRE HARNESS
SEAT LOCK CABLE
REAR COMBINATION LIGHT
9P CONNECTOR
I
I
I
I
I
LICENSE LIGHT 3P CONNECTOR
RADIATOR SIPHON HOSE
8
mm
maximum
RADIATOR SIPHON HOSE
INFORMATION
MAIN WIRE HARNESS
5
mm
maximum
8
mm
maximum
1
