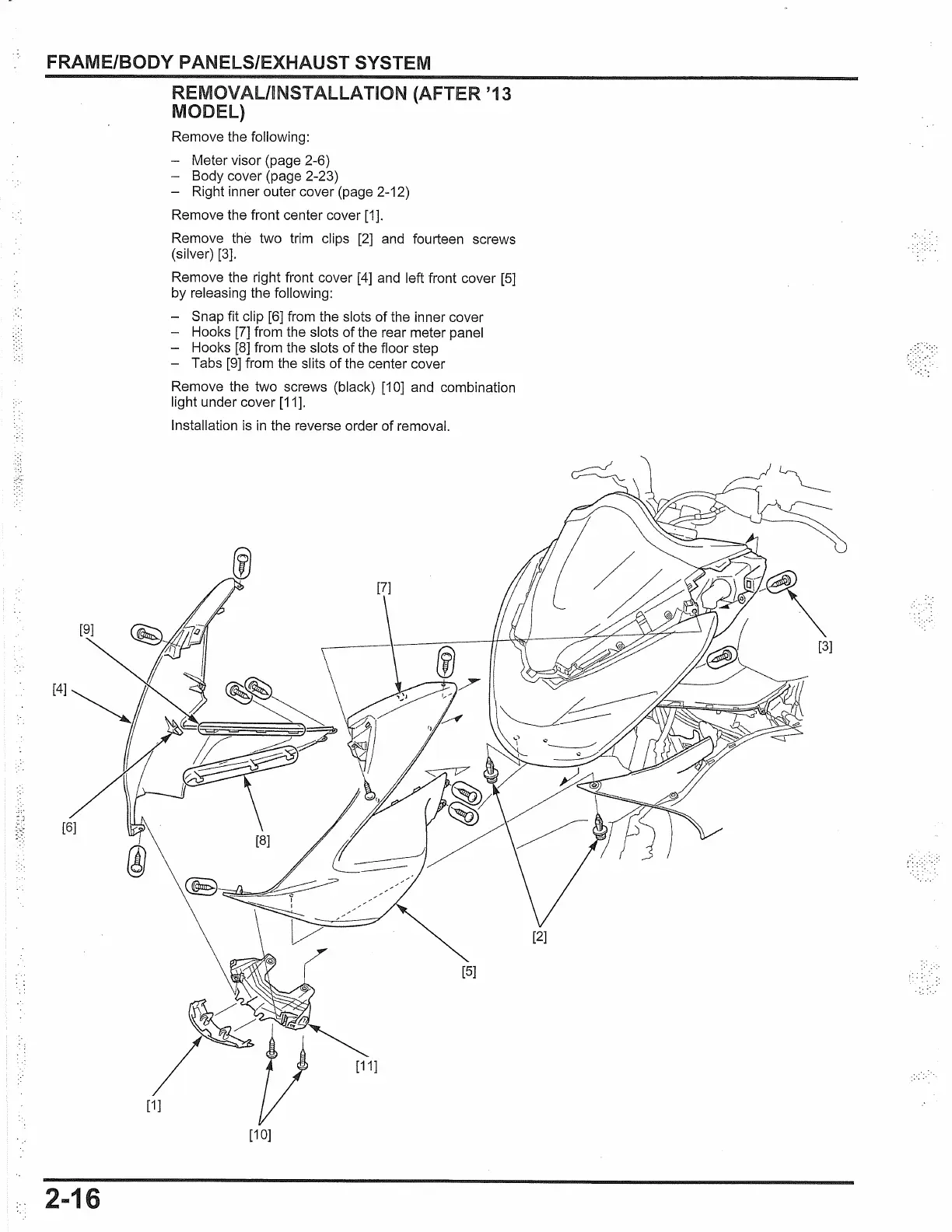

FRAME/BODY PANELS/EXHAUST SYSTEM
2-16
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the following:
- Meter visor (page 2-6)
- Body cover (page 2-23)
- Right inner outer cover (page 2-12)
Remove the front center cover [1].
Remove the two trim clips
[2]
and fourteen screws
(silver) [3].
Remove the right front cover [4] and left front cover
[5]
by releasing the following:
Snap fit clip [6] from the slots of the inner cover
- Hooks [7] from the slots of the rear meter panel
- Hooks
[8]
from the slots of the floor step
- Tabs
[9]
from the slits of the center cover
Remove the two screws (black)
[1
O]
and combination
light under cover [11].
Installation
is
in
the reverse order of removal.
[10]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
