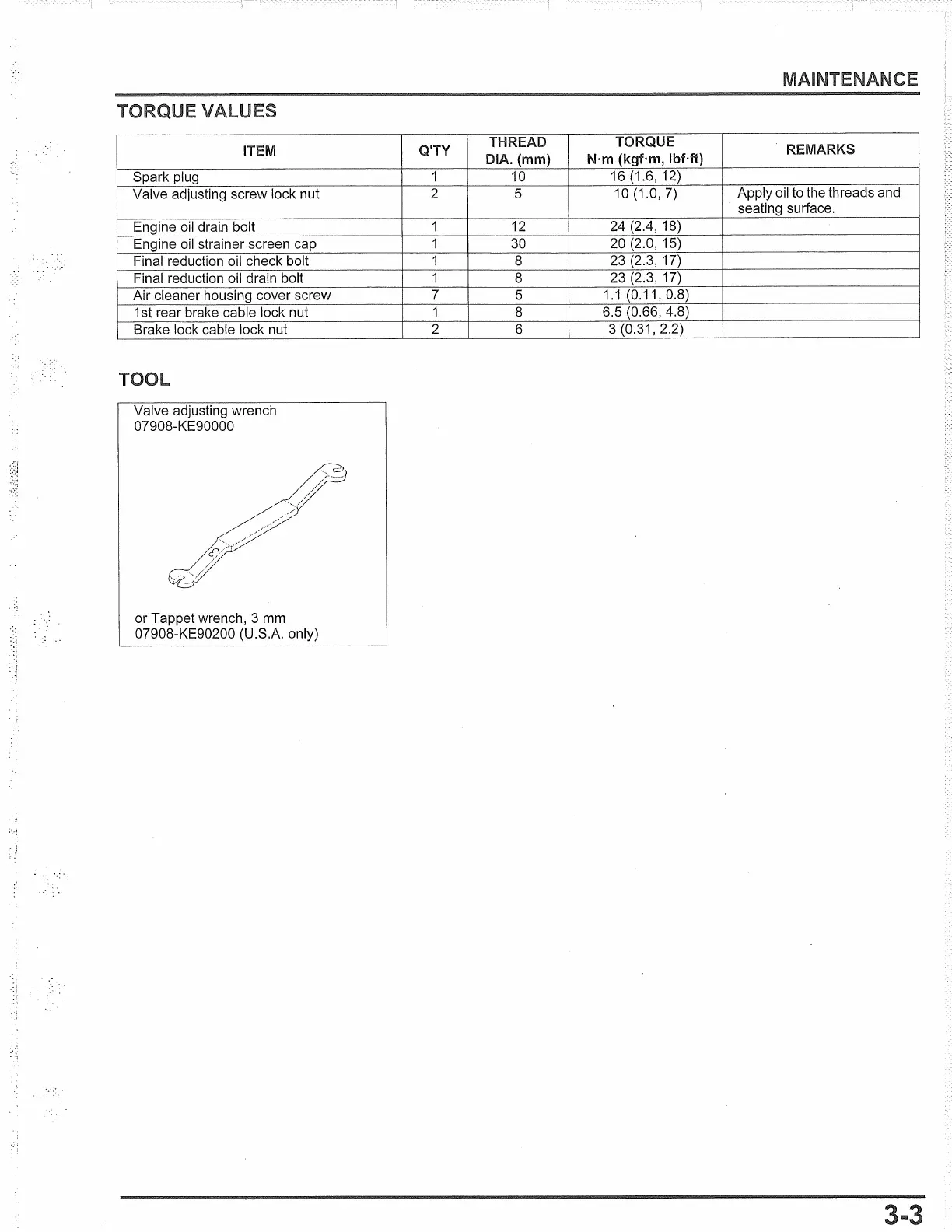

Honda PCX150 2013 User Manual

ITEM
Spark plug
Valve adjusting screw lock nut
Engine oil drain bolt
Engine
oil
strainer screen cap
Final reduction oil check bolt
Final reduction oil drain bolt
Air cleaner housing cover screw
1st rear brake cable lock nut
Brake lock cable lock nut
TOOL
Valve adjusting wrench
07908-KE90000
r
>-~
/
~
,
'
or Tappet wrench, 3
mm
07908-KE90200 (U.S.A. only)
Q'TY
1
2
1
1
1
1
7
1
2
THREAD
TORQUE
REMARKS
DIA. (mm) N·m (kgf·m,
lbHt)
10
16 (1.6, 12)
5 10 (1.0,
7)
Apply oil to the threads and
seating surface.
12
24 (2.4, 18)
30
20 (2.0, 15)
8 23 (2.3, 17)
8
23 (2.3, 17)
5
1.1
(0.11, 0.8)
8
6.5 (0.66, 4.8)
6 3 (0.31, 2.2)

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
