Xenon/Granit User Guide 111
The commands to which the scanner responds are listed on page 112. The [ESC] is
a 1B in hex. A typical command string is [ESC] x,. [ESC] x is the escape command,
and the comma is the terminator, which is required.
Example: Commands may be strung together to create custom response sequences. An
example of a command string is listed below.
[ESC]4,[ESC]5,[ESC]6,
The above example will make a scanner beep low, then medium, then high.
Example: A good read beep is required for any item on file, but a razz or error tone is required
if the item is not on file. In this case,
[ESC]7, is sent from the host to the scanner for an on-file product
[ESC]8,[ESC]8, is sent from the host to the scanner for a not-on-file product
When a bar code is scanned, the scanner enters a timeout period until either the
host ACK sequence is received, or the timeout expires (in 10 seconds, by default).
Once Host ACK is enabled, the system works as follows when a bar code is
scanned:
• The scanner reads the code and sends data to the base to transmit to the host
system. No audible or visual indication is emitted until the scanner receives an
escape command. The scanner read illumination goes out when there’s a
successful read.
• Scanner operation is suspended until 1) a valid escape string is received from
the host system or 2) the scanner times out.
• Once condition 1 or 2 above has been met, the scanner is ready to scan again,
and the process repeats.
A time-out occurs if the scanner does not receive a valid escape command within
10 seconds. A time-out is indicated by an error tone. If a time-out occurs, the oper-
ator should check the host system to understand why a response to the scanner
was not received.

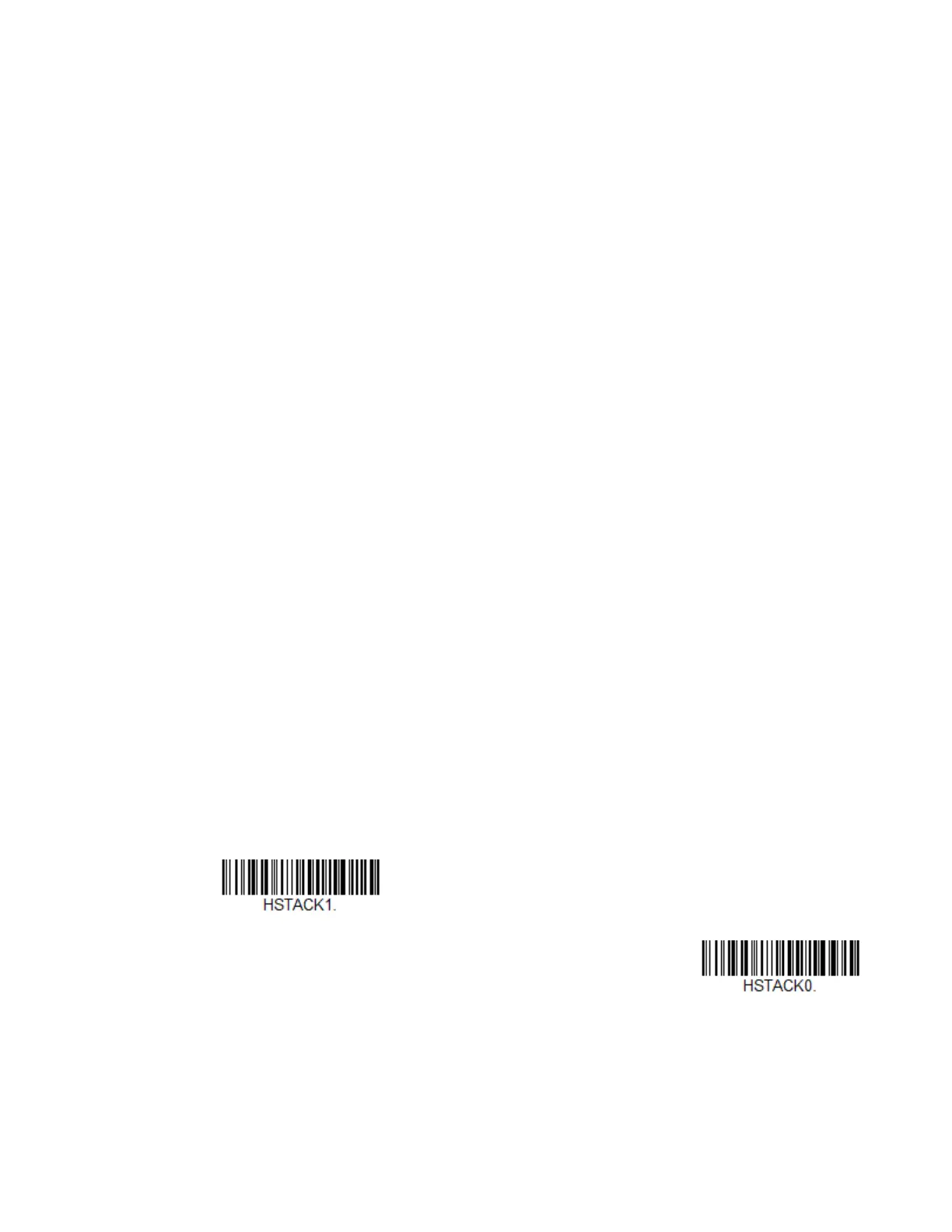

Host ACK On/Off
