4 Xenon/Granit User Guide
The unit defaults to a USB PC Keyboard. Refer to page 20 for other USB terminal
settings.
For additional USB programming and technical information, refer to “USB Applica-
tion Note,” available at www.honeywellaidc.com.
Connect with Keyboard Wedge
A scanner or cordless base can be connected between the keyboard and PC as a
“keyboard wedge,” where the scanner provides data output that is similar to key-
board entries.
Note: The Granit 1980i does not support the keyboard wedge interface.
The following is an example of a keyboard wedge connection:
1. Turn off power and disconnect the keyboard cable from the back of the termi-
nal/computer.
2. Connect the appropriate interface cable to the device and to the terminal/
computer.

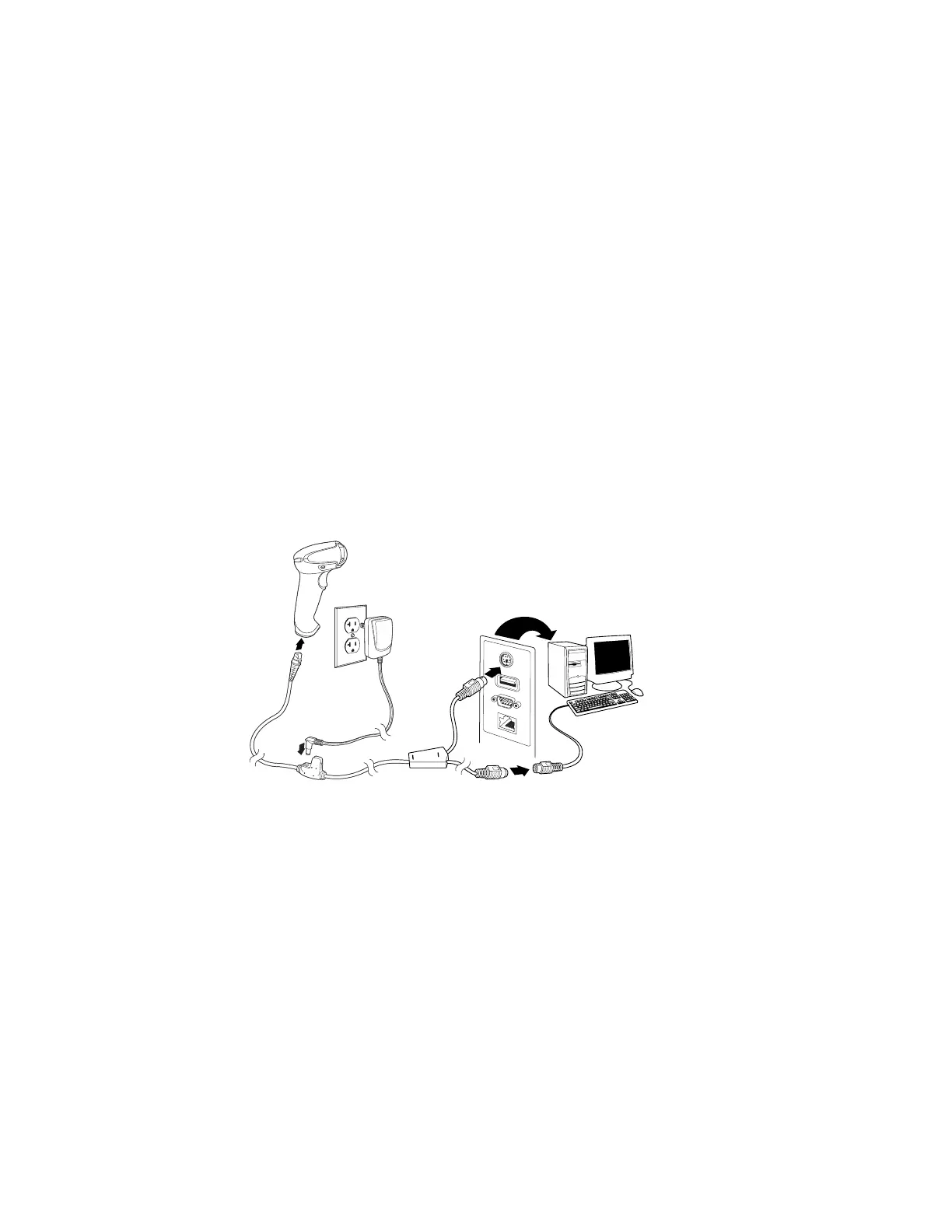

Corded Xenon Scanner Keyboard Wedge Connection:
