HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6.8.1 10-Port 10GBase LAN/WAN-XFP Line Processing Unit
S(LPUS-100)
The right-most five ports are numbered in the format of "slot number/0/port number" and the left-most
five ports are numbered in the format of "slot number/1/port number".
Overview

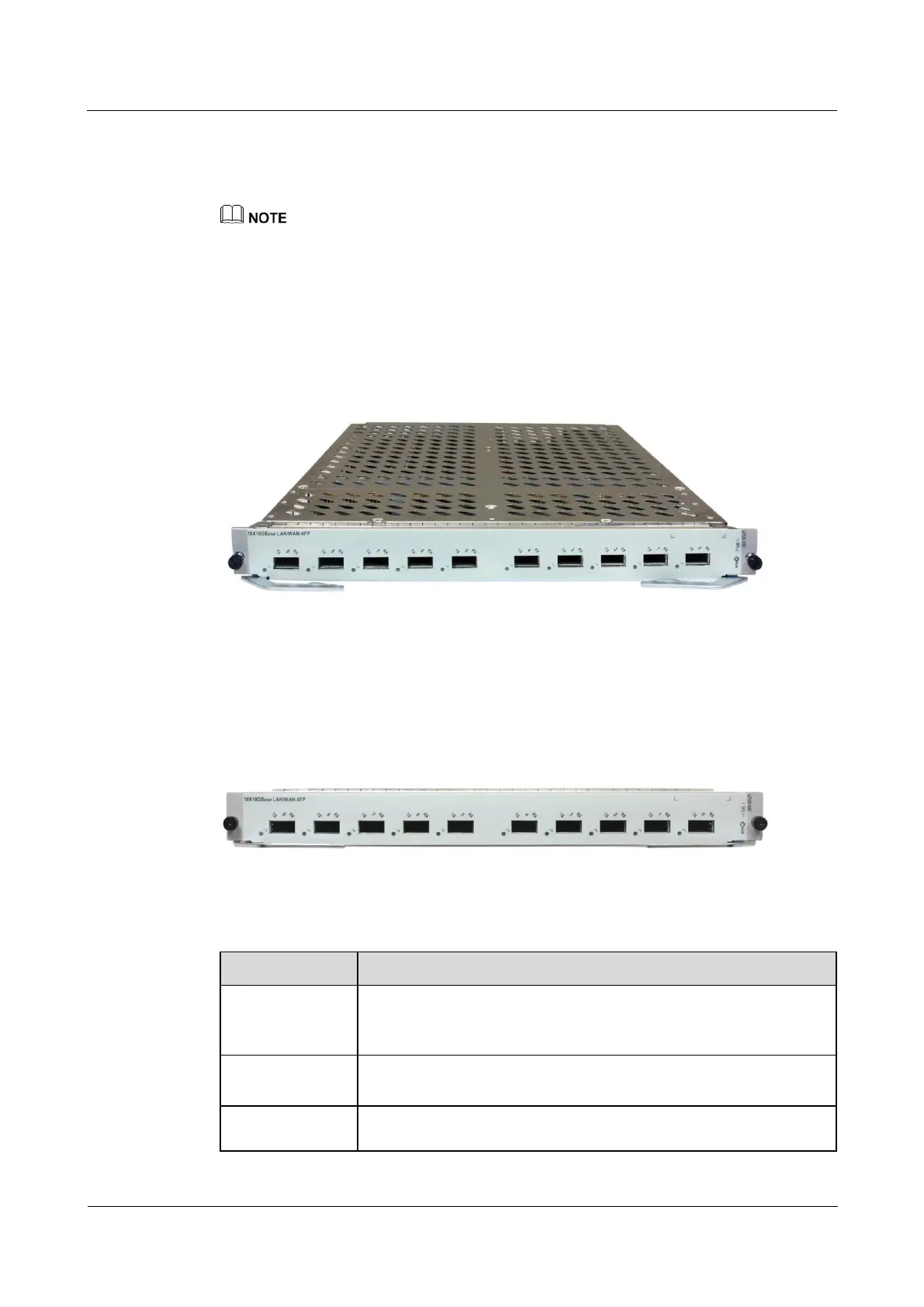

Figure 6-29 shows the appearance of the 10-Port 10GBase LAN/WAN-XFP Line Processing
Unit S. 1588v2 and HQoS are not supported on this board.
Figure 6-29 Appearance of the 10-Port 10GBase LAN/WAN-XFP Line Processing Unit S
Panel
Figure 6-30shows the panel appearance of the 10-Port 10GBase LAN/WAN-XFP Line
Processing Unit S. Table 6-75 describes the indicators on the panel.
Figure 6-30 Panel appearance of the 10-Port 10GBase LAN/WAN-XFP Line Processing Unit S
Table 6-75 Indicators on the panel of the 10-Port 10GBase LAN/WAN-XFP Line Processing Unit
S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for six seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
