HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6.11.3 10-Port 10GBase LAN/WAN-SFP+ Line Processing Unit
S(LPUS-101)
Overview

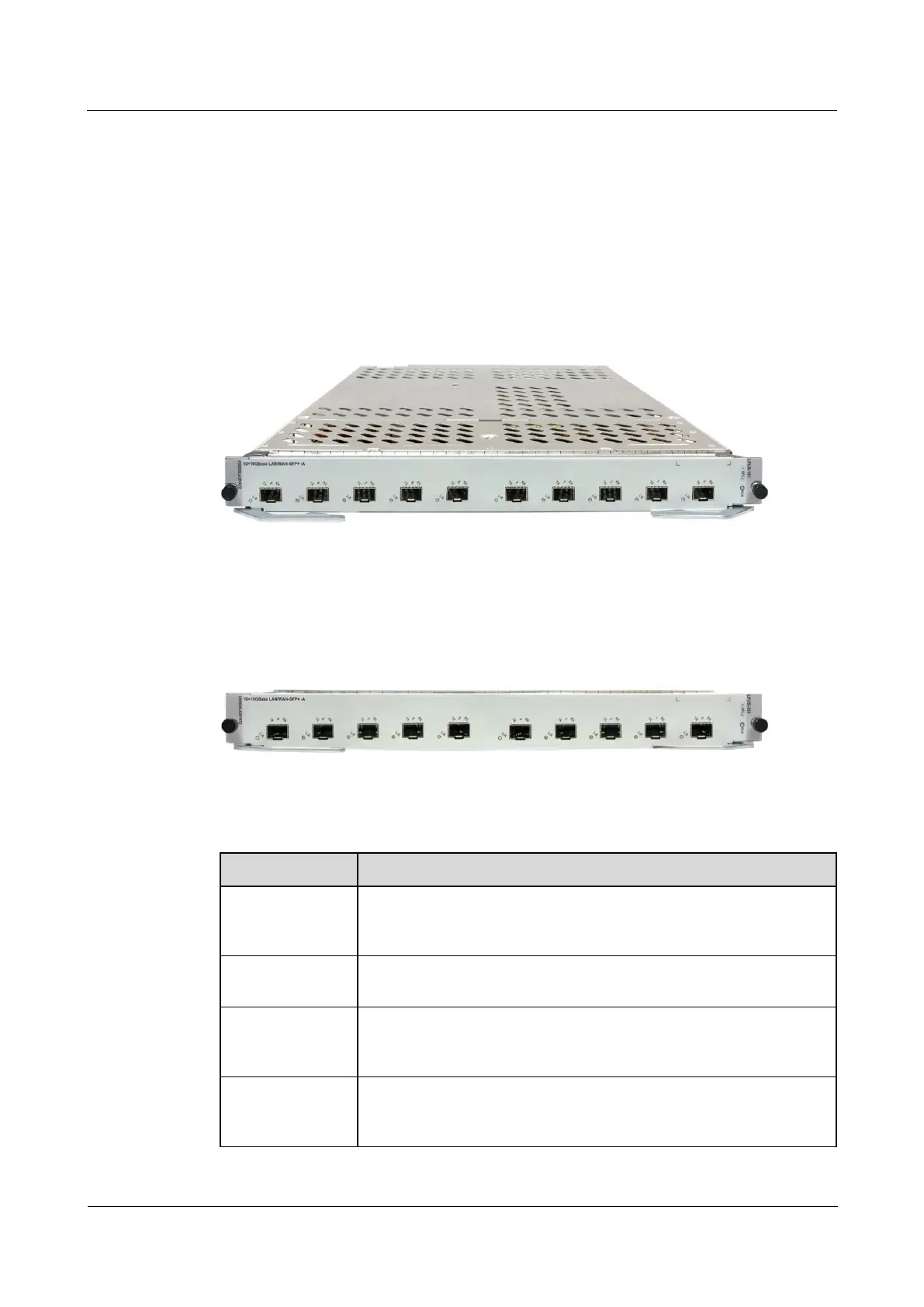

Figure 6-56 shows the appearance of the 10-Port 10GBase LAN/WAN-SFP+ Line Processing
Unit S(LPUS-101). The ten ports can be configured to work in LAN or WAN mode, HQoS is
not supported on this board.
Figure 6-56 Appearance of the 10-Port 10GBase LAN/WAN-SFP+ Line Processing Unit S
Panel
Table 6-145 lists the indicators on the panel.
Figure 6-57 Appearance of the 10-Port 10GBase LAN/WAN-SFP+ Line Processing Unit S
Table 6-144 Indicators on the panel of the 10-Port 10GBase LAN/WAN-SFP+ Line Processing
Unit S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
