6.12.3 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P51-A)
Overview
Either the LAN or WAN mode can be configured for each interface on the 2-Port 10GBase
LAN/WAN-SFP+ flexible card A. The flexible card occupies one 1/2-width flexible card slot.

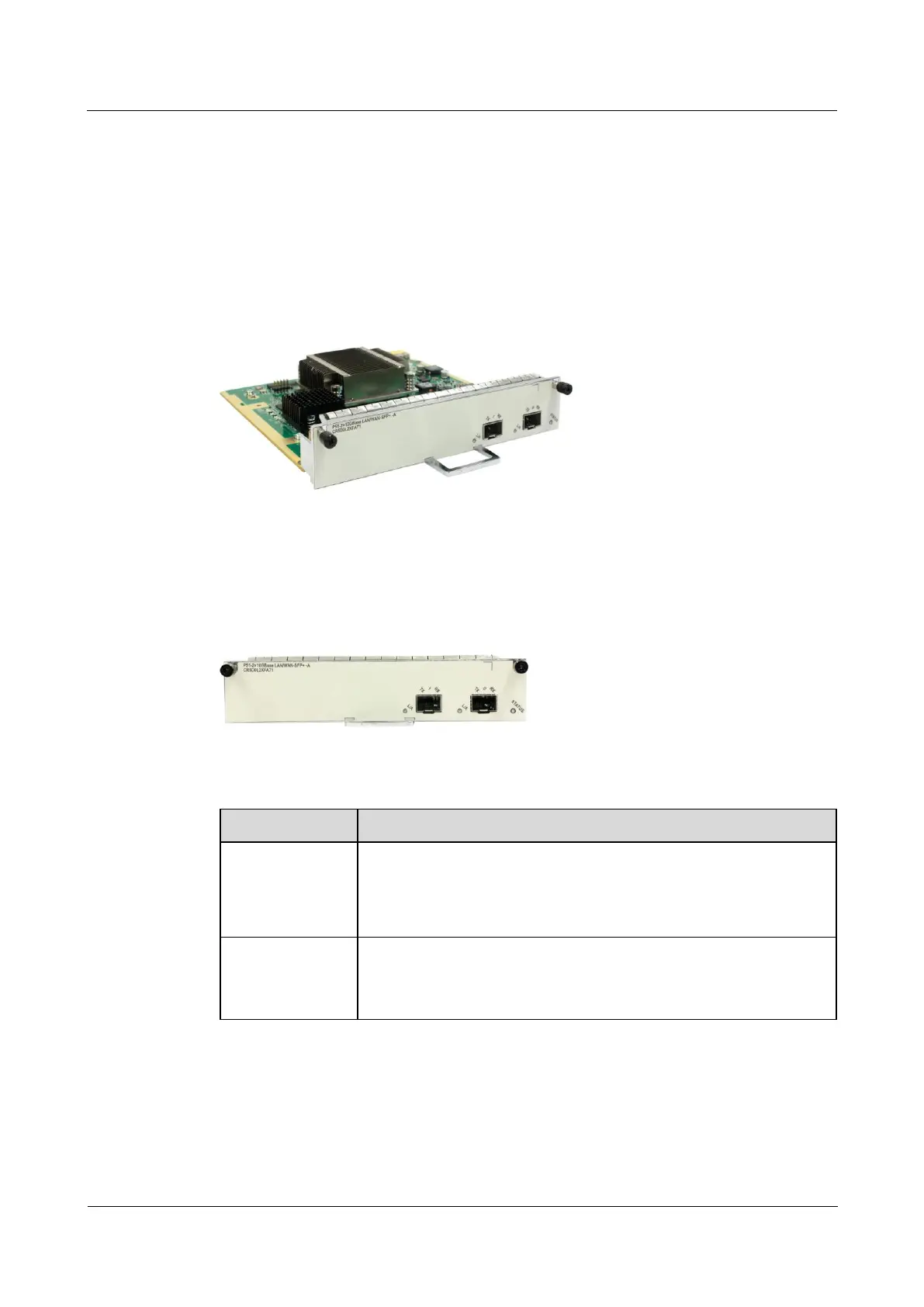

Figure 6-64 shows the appearance of the 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A.
Figure 6-64 Appearance of the 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A
Panel
Table 6-164 lists the indicators on the panel.
Figure 6-65 Appearance of the 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A
Table 6-163 Indicators on the panel of the 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the FPIC is in the alarm
state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
Interface Attributes
Table 6-164 lists the interface attributes of the 2-Port 10GBase LAN/WAN-SFP+ Flexible
Card A.
