6.23.12 8-Port 100/1000 Base-X-SFP Flexible Card A (Supporting
1588v2)
Overview
Figure 6-227 shows 8-port 100/1000 Base-X-SFP Flexible Card A (Supporting 1588v2).
The 8-port 100/1000 Base-X-SFP Flexible Card A is called E8GFB for short. It is an flexible
card that supports IEEE1588v2. The E8GFB is applicable to the 10 G LPU (that is LPUF-10)
and supports the following interface modules:

GE optical module, providing features of GE optical interfaces

FE optical module, providing features of FE optical interfaces

Electrical interface SFP module, providing features of the 1000M electrical interfaces

Intermixing of the preceding modules

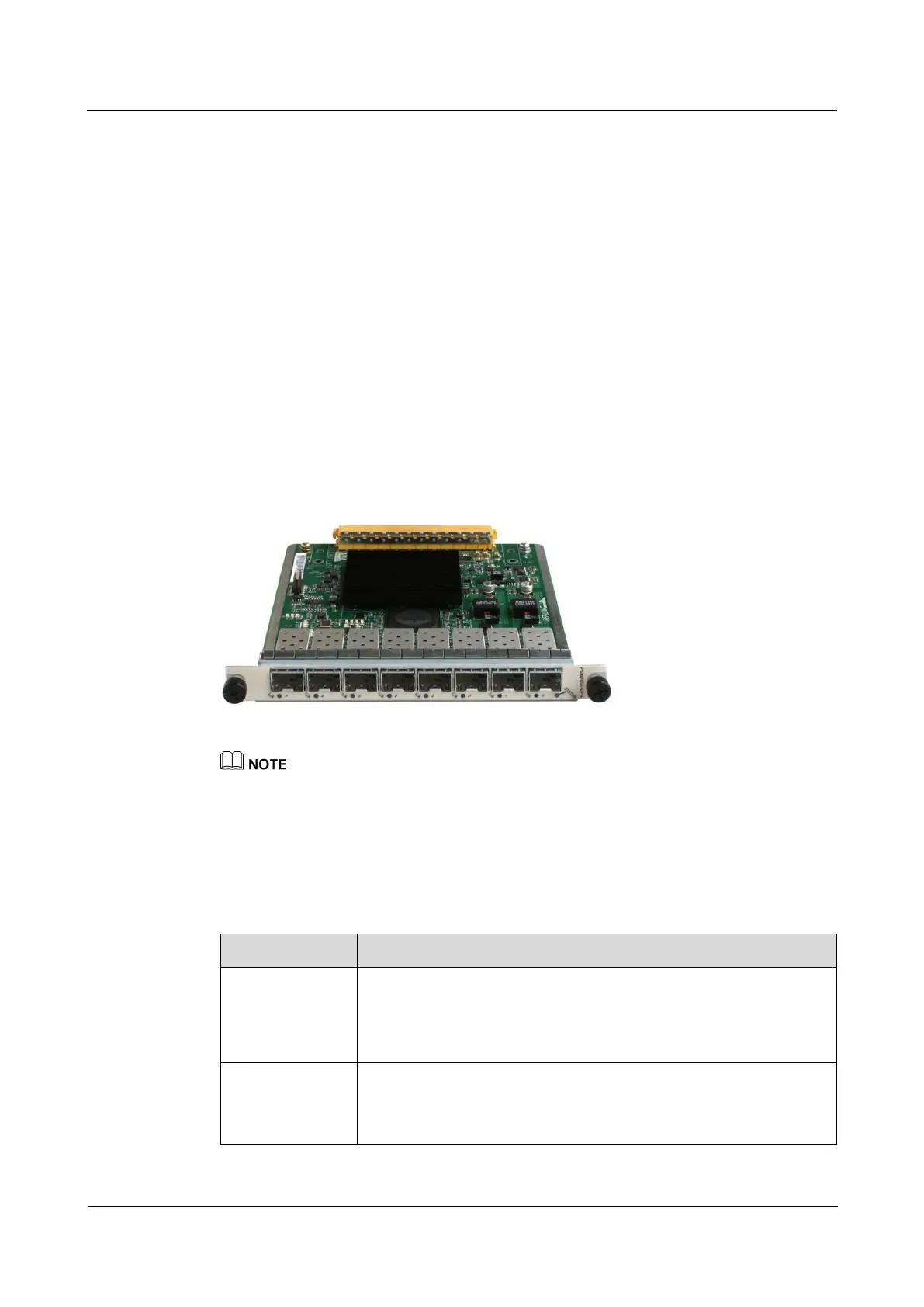

Figure 6-227 Appearance of the 8-port 100/1000 Base-X-SFP Flexible Card A (Supporting
1588v2)
The 8-port 100/1000 Base-X-SFP Flexible Card A does not support convergence when installed on an
LPU (LPUF-50, occupying four sub-slots).
Panel
Table 6-645 describes the indicators on the panel.
Table 6-645 Indicators on the panel of the 8-port 100/1000 Base-X-SFP Flexible Card A
Indicator
Description
STATUS
indicator (green)
If the indicator blinks every 2s (0.5 Hz), the flexible card is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the flexible card is in the
alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
