HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 0% to 95%
Storage temperature: -40°C to +70°C ( -40°F to 158°F )
Storage humidity: 0% to 95%
6.18.3 48-Port 100/1000Base-X-SFP Integrated Line Processing
Unit(LPUI-41)
The right-most twenty-four ports are numbered in the format of "slot number/0/port number" and the
left-most twenty-four ports are numbered in the format of "slot number/1/port number".
Overview
Figure 6-149 shows 48-port 100/1000Base-X SFP Integrated Line Processing Unit.
GE optical module, providing features of GE optical interfaces.
FE optical module, providing features of FE optical interfaces.
Electrical interface SFP module, providing features of the 1000M electrical interfaces.
Intermixing of the preceding modules.

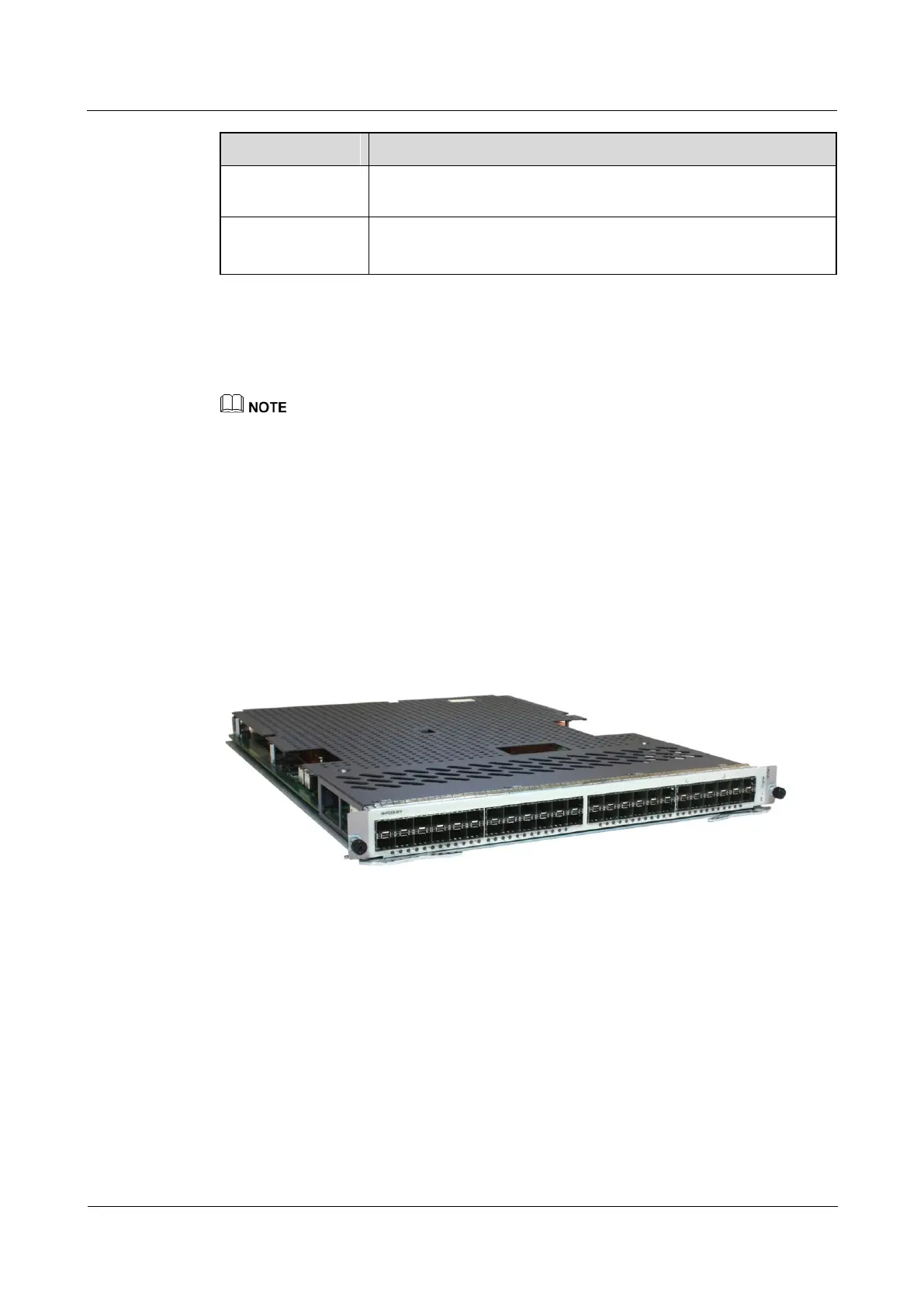

Figure 6-149 Appearance of the 48-port 100/1000Base-X SFP Integrated Line Processing Unit
Panel
Figure 6-150shows the panel appearance of the 48-port 100/1000Base-X SFP Integrated Line
Processing Unit. Table 6-410 describes the indicators on the panel.
