6.22.4 1-Port 10GBase LAN/WAN-XFP FPIC E
Overview

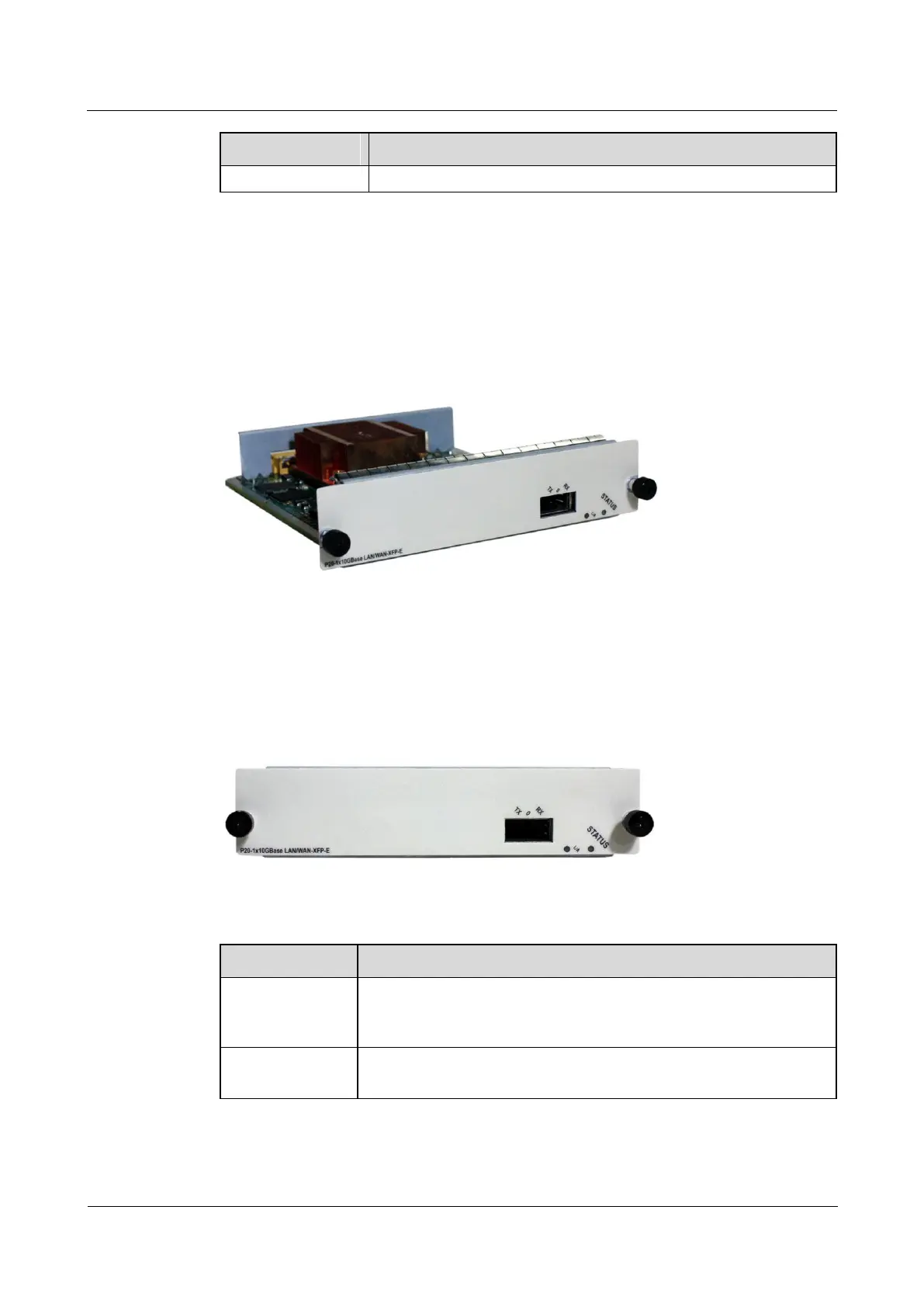

Figure 6-182 shows the appearance of the 1-port 10GBase LAN/WAN-XFP FPIC E.
Figure 6-182 Appearance of the 1-port 10GBase LAN/WAN-XFP FPIC E
Panel
Figure 6-183 shows the panel appearance of the 1-port 10GBase LAN/WAN-XFP FPIC E.
Table 6-520 lists the indicators on the panel.
Figure 6-183 Panel appearance of the 1-port 10GBase LAN/WAN-XFP FPIC E
Table 6-520 Indicators on the panel of the 1-port 10GBase LAN/WAN-XFP FPIC E
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
