Huawei RH2288H V3 User Manual

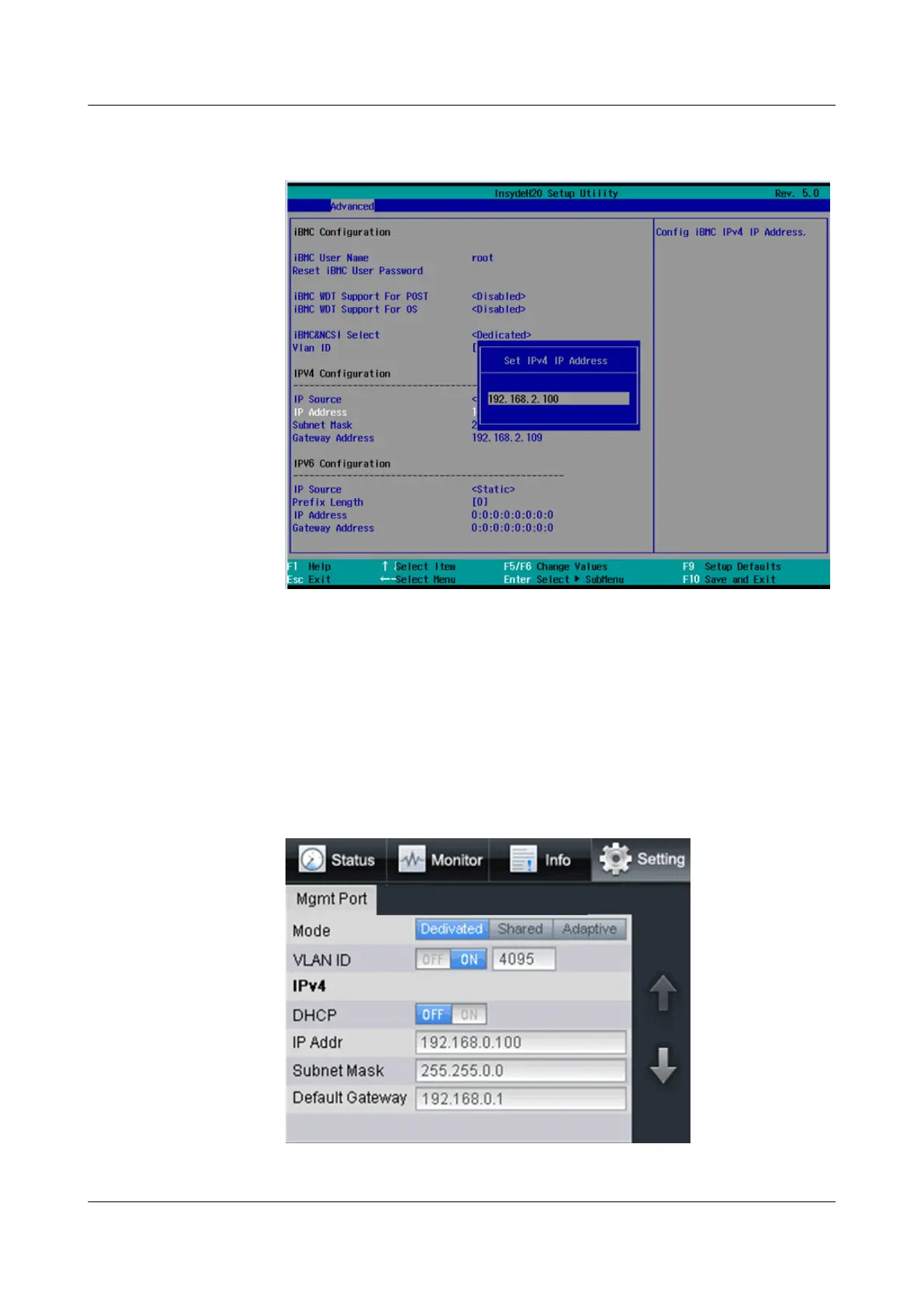

Figure 5-20 Setting the IPv4 address of the iBMC management network
port
i. Set the parameter in IPV4 Conguration and IPV6 Conguration for the
iBMC management network port in the same way.
j. Press F10 to save settings and exit.
● Set the IP address by using the LCD.
a. On the LCD, click the Setting tab.
The Setting screen is displayed, as shown in Figure 5-21.
Figure 5-21 Setting
RH2288H V3 Server
User Guide 5 Conguring the RH2288H V3
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 141

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
