Huawei RH2288H V3 User Manual

Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.

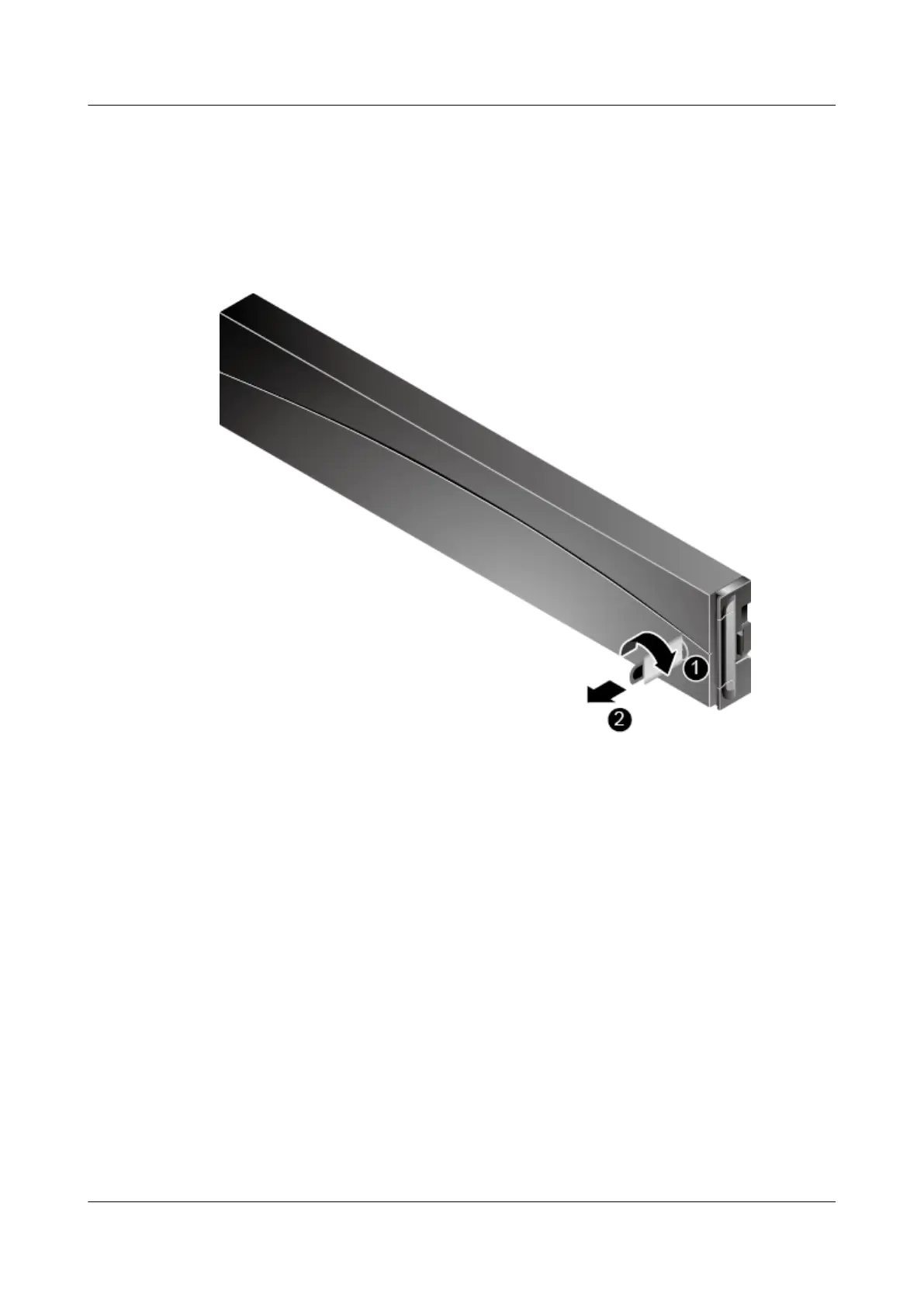

Step 2 Unlock the front bezel by turning the key clockwise, and remove the key for
proper storage. See Figure 7-1.
Figure 7-1 Unlocking the front bezel
Step 3 Press the button and remove the front bezel. See Figure 7-2.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 150

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
