Huawei RH2288H V3 User Manual

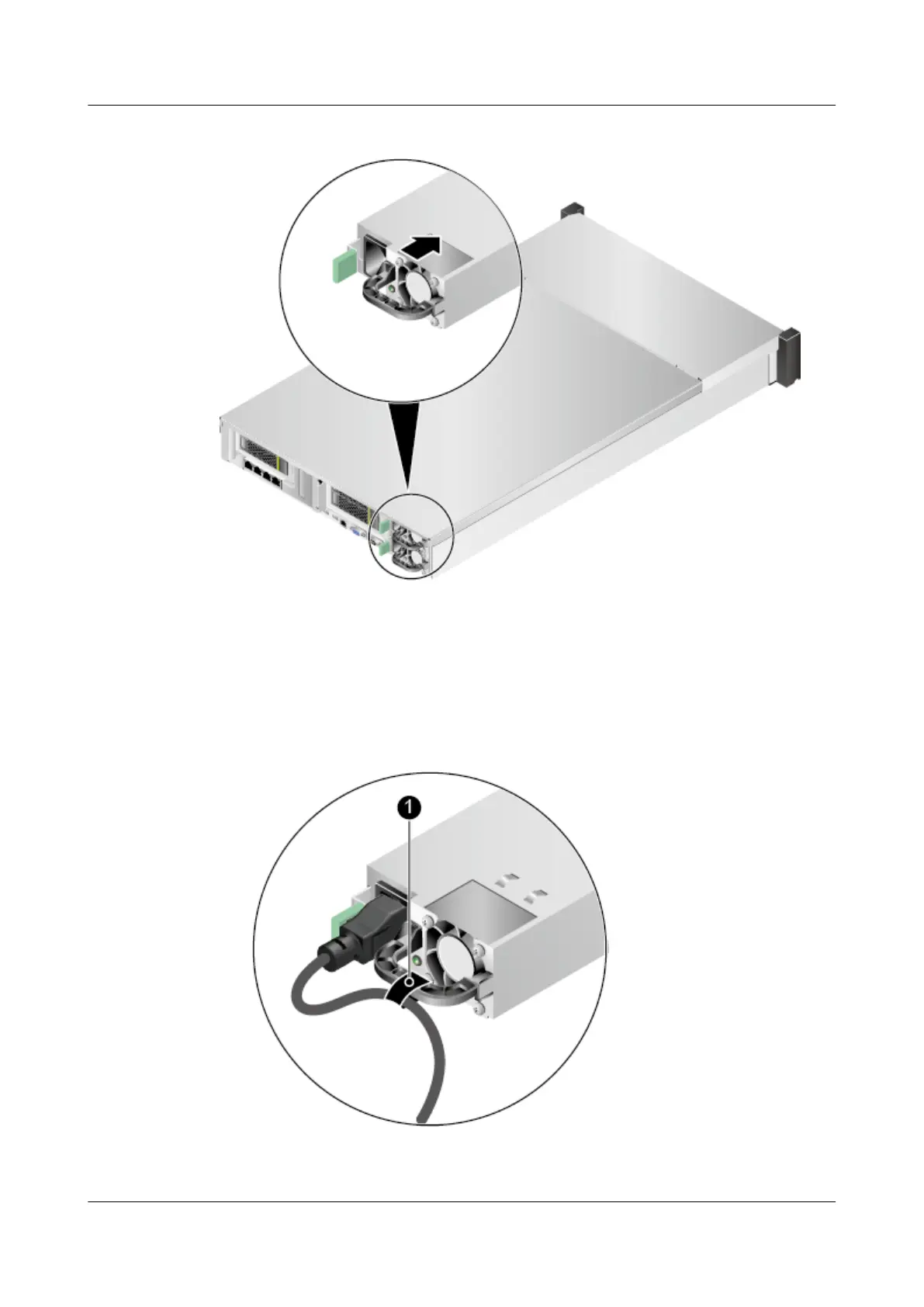

Figure 7-15 Installing an AC PSU
Step 5 Connect the power cable to the PSU.
● If the PSU has a velcro strap, use the velcro strap to bind the power cable to
the middle of the PSU handle after connecting the power cable to the PSU to
prevent power cable poor contact or disconnection. See Figure 7-16.
Figure 7-16 Connecting a power cable (secured with the PSU using a velcro
strap)
● If the PSU has a plastic clip, perform the following steps to connect the power
cable:
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 162

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
