Figure 7-65 Ports with rubber plugs
Step 5 Align the connector on the screw-in RAID controller card with the slot on the
mainboard, and slowly insert the screw-in RAID controller card into the
mainboard. See (1) in Figure 7-66.

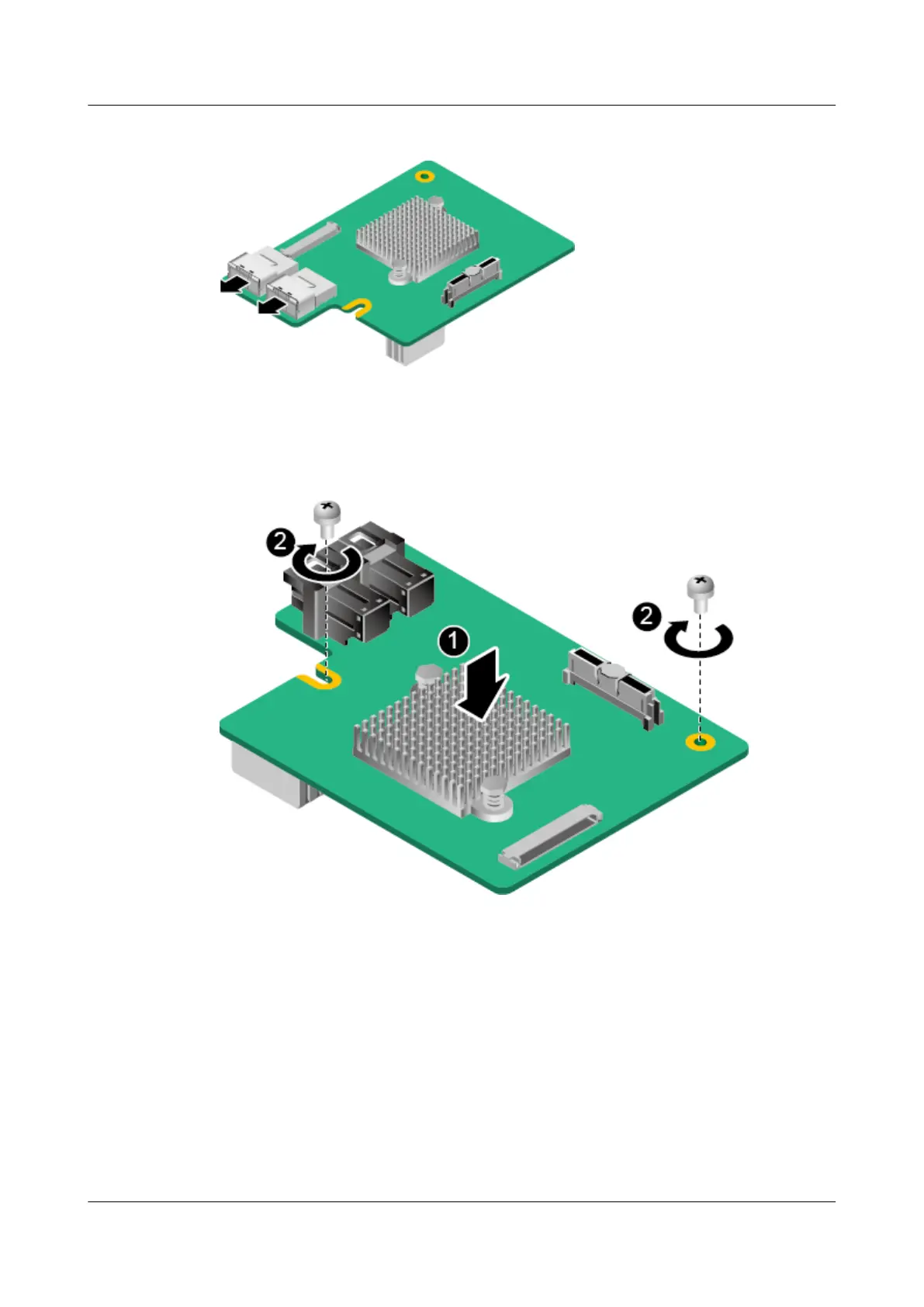

Figure 7-66 Installing a RAID controller card
Step 6 Tighten the screws on the RAID controller card. See (2) in Figure 7-66.
Step 7 Connect cables to the RAID controller card. For details, see 2.7 Internal Cabling.
Step 8 Install full-height full-length riser cards if they are required. For details, see 7.20
Installing a Riser Card.
Step 9 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 10 Install the RH2288H V3. For details, see 3.4 Installing the Server.
Step 11 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 206

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
