Huawei RH2288H V3 User Manual

NO TICE
Do not use any tool or sharp object to lift the securing rod on the CPU socket.
Otherwise, the server may be damaged.

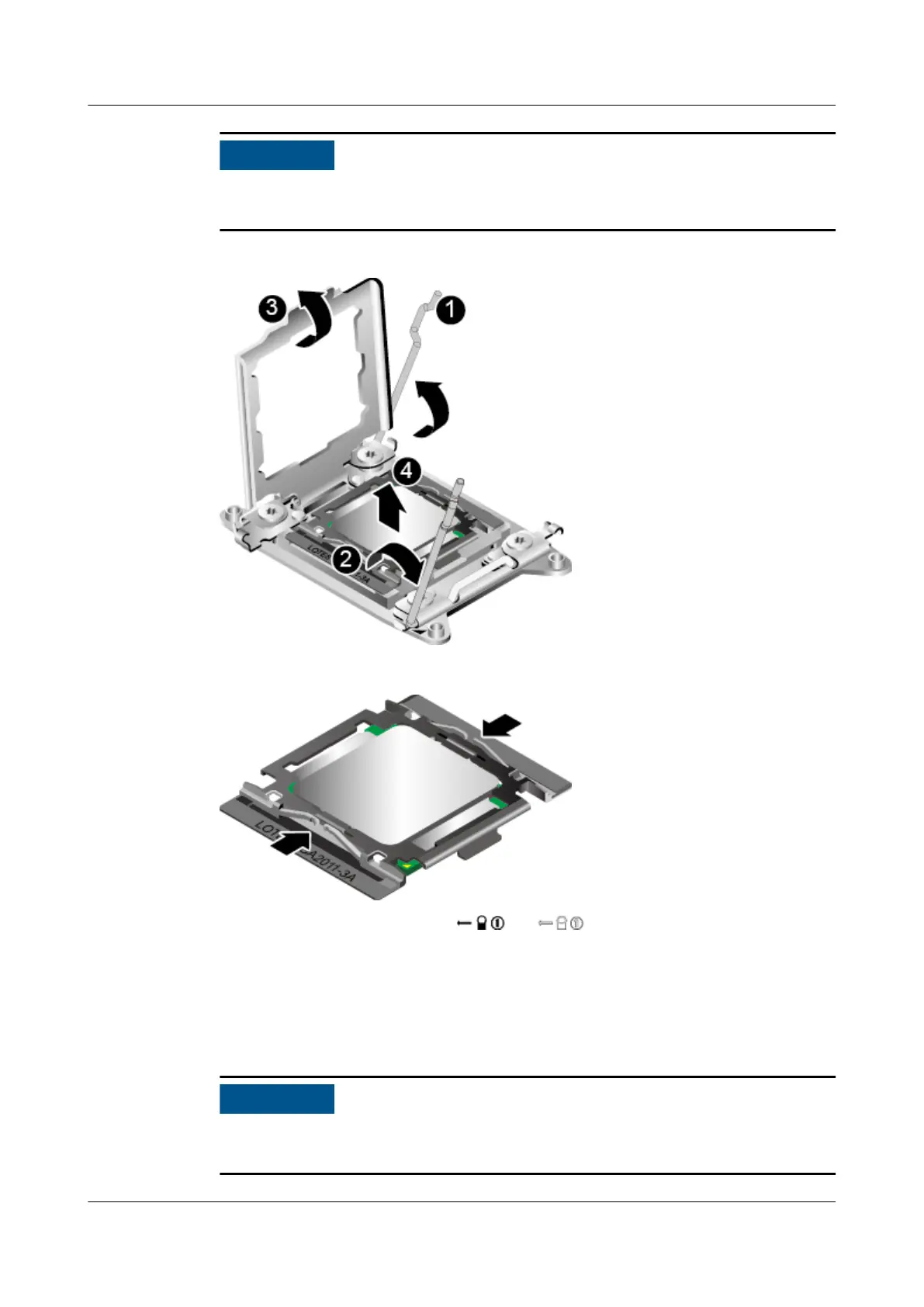

Figure 7-77 Removing the CPU
Figure 7-78
Positions for squeezing a CPU carrier
Step 13 Raise the securing rod near the or label. See (2) in Figure 7-77.
Step 14 Lift the load plate to a fully open position, squeeze two sides of the CPU carrier
(shown in Figure 7-78), and raise the carrier with the CPU inside vertically. See
(3) and (4) in Figure 7-77.
Step 15 Use a tissue to clean
o any residual thermal paste from the CPU, and place the
CPU carrier with the CPU inside in an ESD bag.
NO TICE
Ensure that CPU sockets are populated with CPUs or protective covers during
transportation and storage.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 220

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
