Step 4 Check that the CPU socket does not have bent pins and is free from foreign
objects.
NO TICE
If a CPU socket has bent pins or foreign objects, stop installing the CPU and
contact Huawei technical support.
Step 5 Before installing a CPU or heat sink, use tissues to clean up the oil, remaining
thermal compound, or foreign objects on their surfaces.
Step 6 Wear
nger cots and latch the CPU into one side of the CPU carrier. See Figure
7-80.

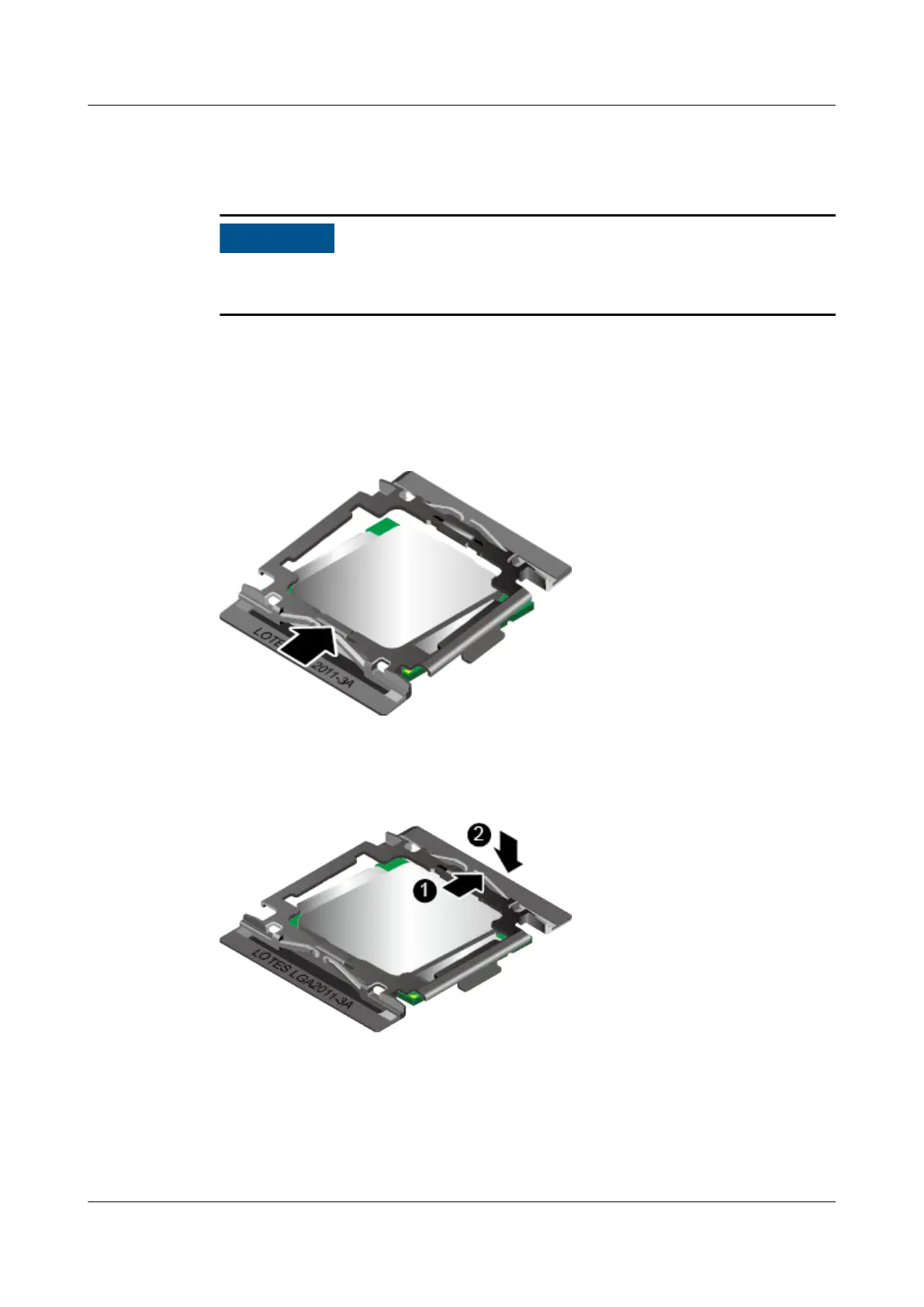

Figure 7-80 Latching a CPU into one side of a CPU carrier
Step 7 Pull out the other side of the CPU carrier and squeeze the carrier downward to
latch the CPU. See Figure 7-81.
Figure 7-81 Pulling out the other side of a CPU carrier
Step 8 Ensure that the CPU is properly latched into the two sides of the CPU carrier. See
Figure 7-82.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 222

Huawei RH2288H V3 Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1.5 TB, 24 DDR4 DIMM slots
Storage	Supports up to 12 x 3.5-inch or 25 x 2.5-inch SAS/SATA HDDs/SSDs
RAID Support	RAID 0, 1, 10, 5, 50
Network	2 or 4 x GE ports
Power Supply	2 x hot-swappable PSUs
Management	iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
