Step 9 Install PSUs. For details, see 7.10 Installing a PSU.
Step 10 Install the FlexIO card. For details, see 7.46 Installing a FlexIO Card.
Step 11 Install the RAID controller card. For details, see 7.32 Installing a Screw-in RAID
Controller Card.
Step 12 Install the CPUs. For details, see 7.40 Installing a CPU.
Step 13 Install the DIMMs. For details, see 7.42 Installing a DIMM.
Step 14 Connect all internal cables. For details, see 2.7 Internal Cabling.
Step 15 Install the fan module brackets in the chassis. See Figure 7-101.

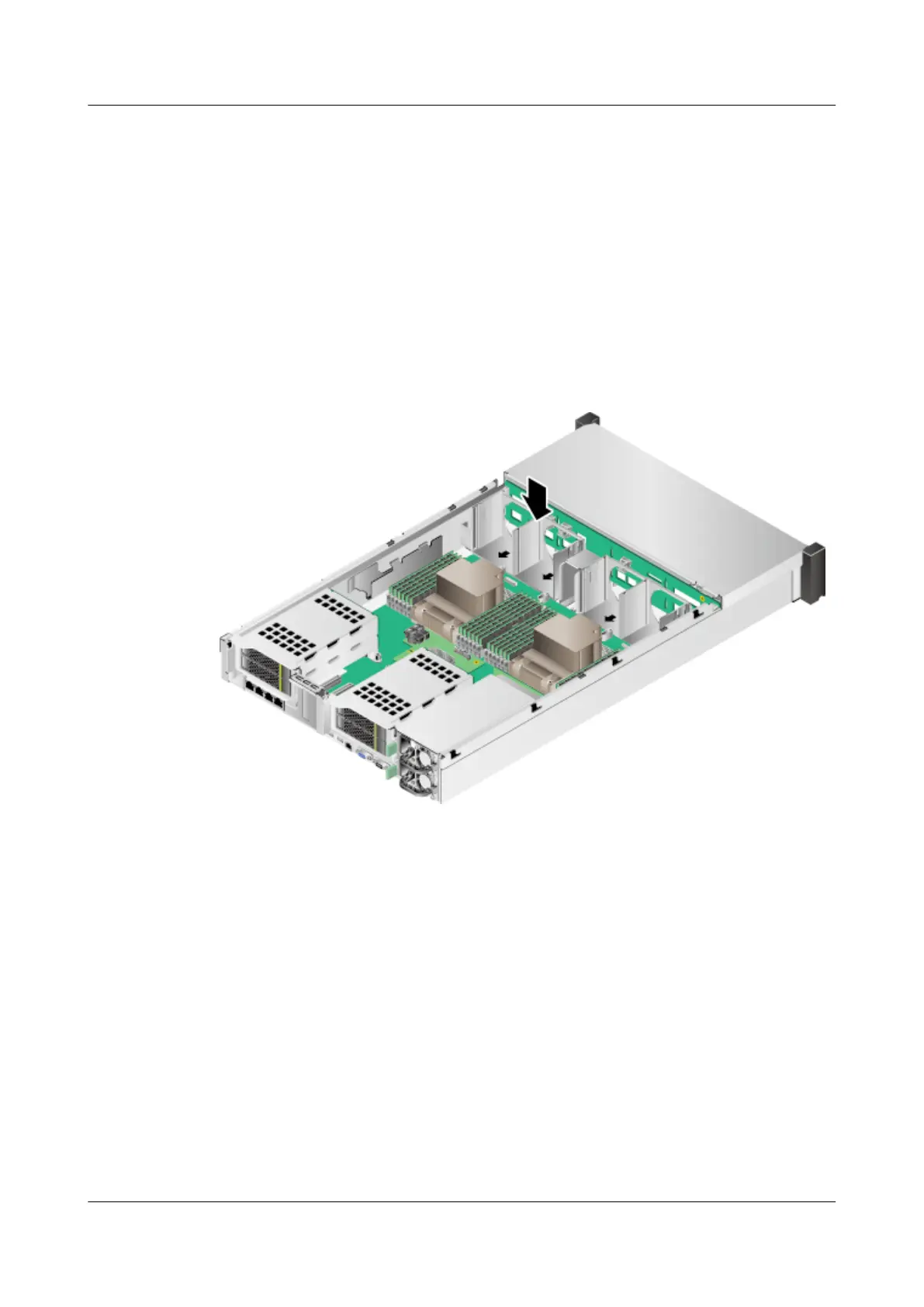

Figure 7-101 Installing fan module brackets
Step 16 Install the fan modules. For details, see 7.16 Installing a Fan Module.
Step 17 Install the air duct. For details, see 7.14 Installing the Air Duct.
Step 18 Install the riser cards. For details, see 7.20 Installing a Riser Card.
Step 19 Install the supercapacitor if it is required. For details, see 7.37 Installing the
Supercapacitor (Screw-in RAID Controller Card).
Step 20 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 21 Install the RH2288H V3. For details, see 3.4 Installing the Server.
Step 22 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
Step 23 Power on the RH2288H V3. For details, see 4.1 Powering On the Server.
Step 24 Burn the original SN into the new mainboard after replacement. For details, see
section "Modifying Electronic Labels" in the
SmartKit User Guide (for Engineers)
.
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 238
