Internal Disk Drives
Removal
1. Turn off power as described in “Powering Off the System” on page 415
2. Place the drawer in the rear service position as described in “Rear Service Position” on page 463.
3. Remove the two thumbscrews and remove the back top cover.
4. Remove the screw from the back of the disk drive carrier.

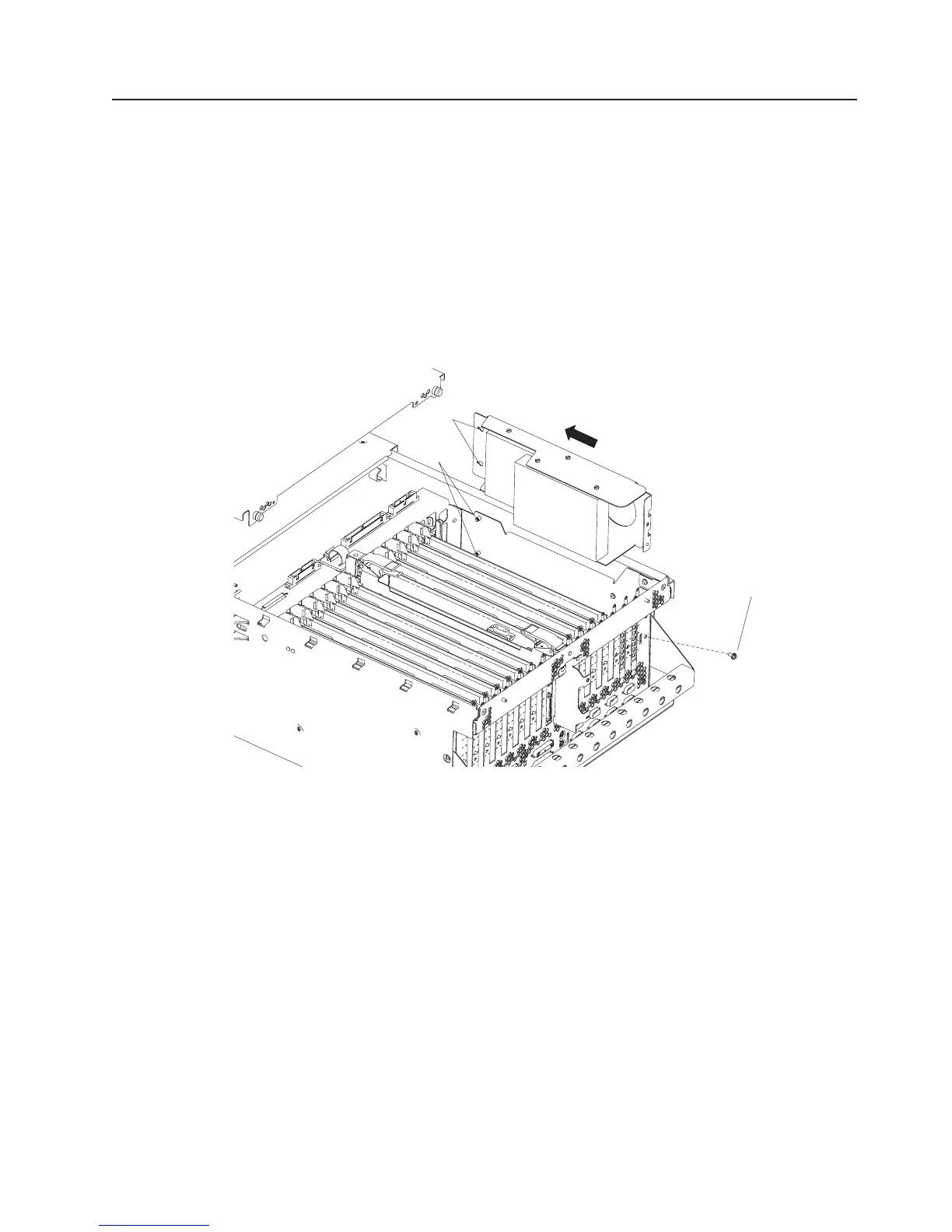

5. Slide the carrier forward and remove. The carrier has keyed slots (1) that engage mounting posts (2)
on the chassis.
6. Disconnect the internal cables from the drives.
7. If you are replacing a defective boot drive, remove the mounting screws (3) from the carrier.
1
3
2
Chapter 10. Removal and Replacement Procedures 453
