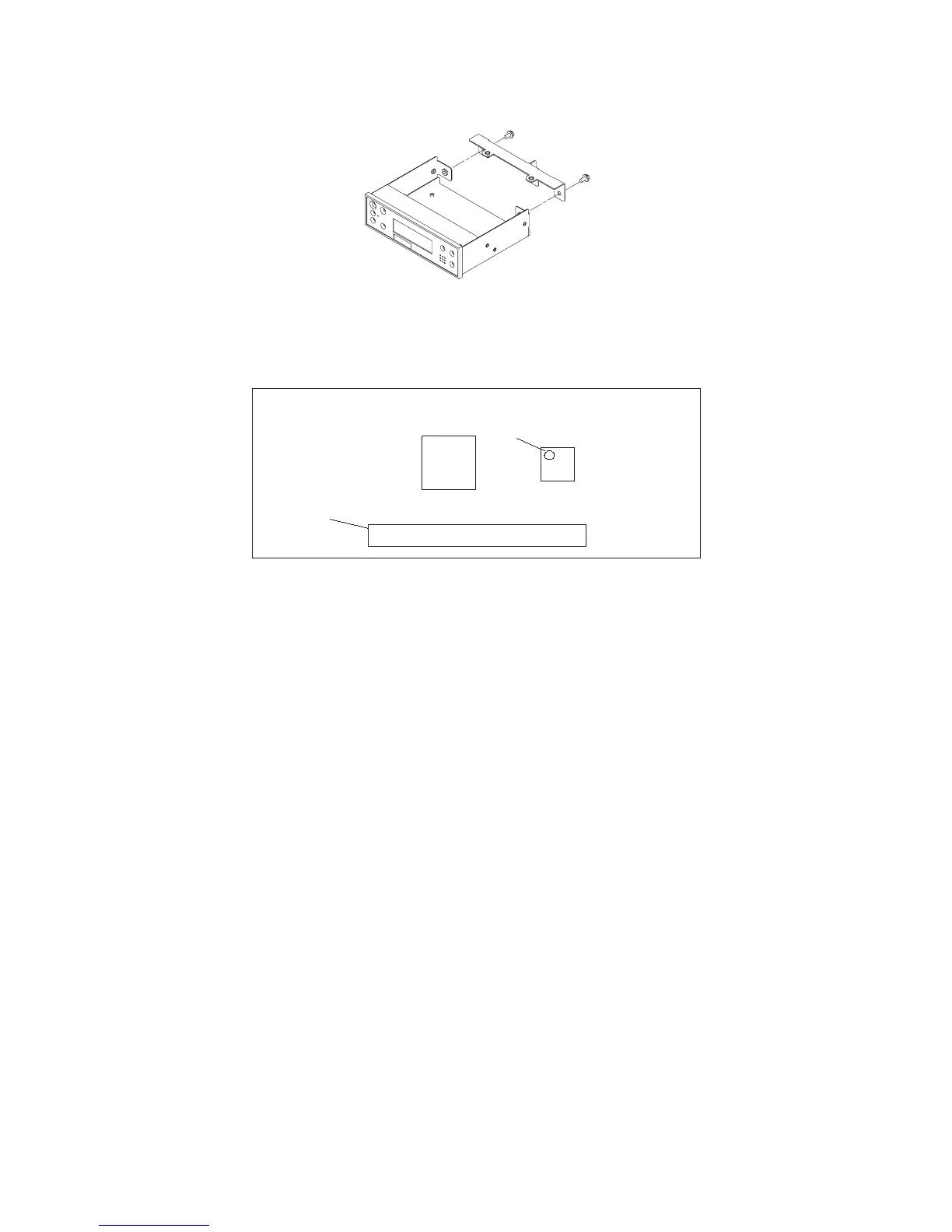

9. Remove the operator panel from the mounting bracket.

Replacement

1. Remove the VPD module from the old operator panel and insert it in the new operator panel. Make

sure you insert the module in the same position as it was in the old panel.

1 VPD Module

2 Cable Connector

To replace, perform removal steps in reverse order.
