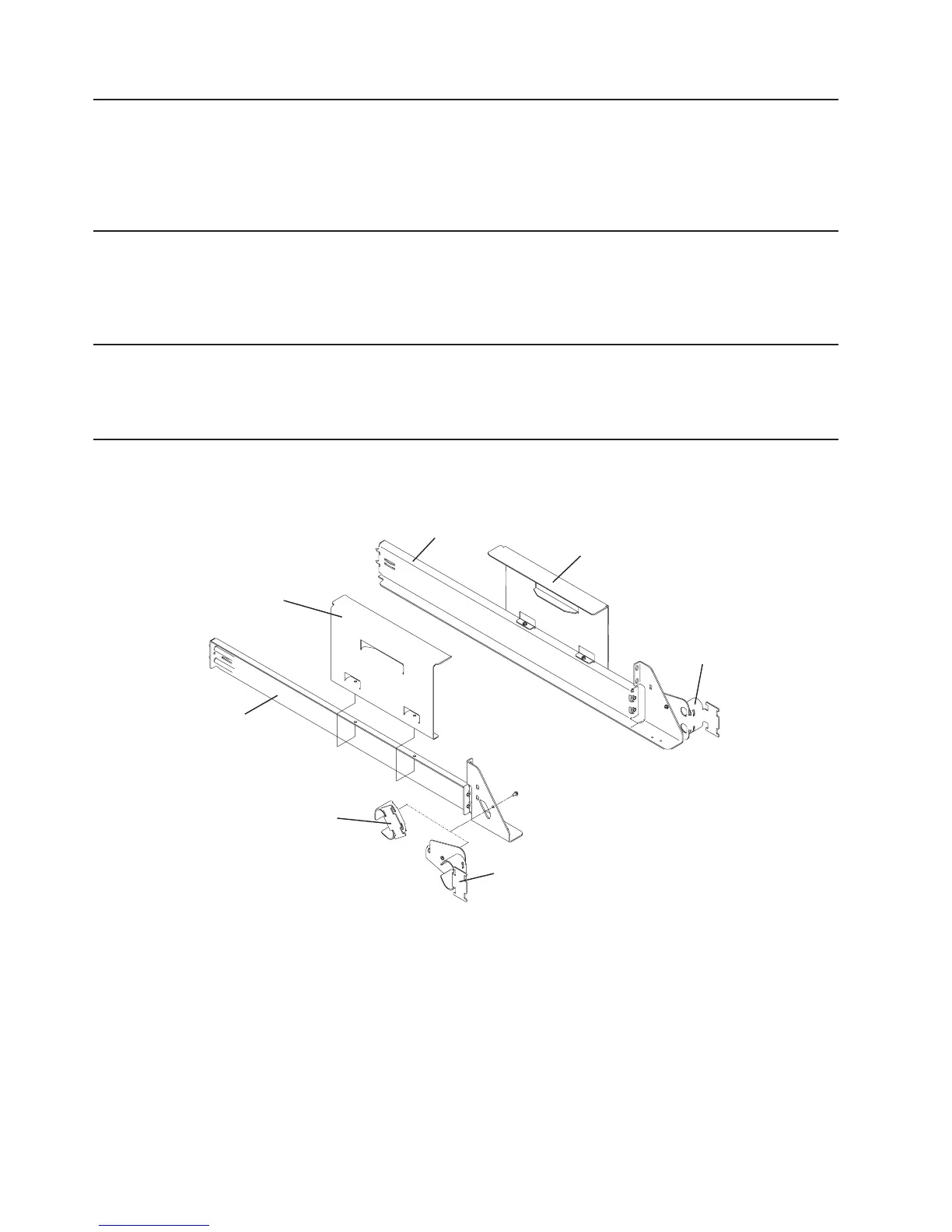

Drawer Rail Assembly and Installation
The drawer rails require assembly before you put them in your rack.
Use two screws, part number 00G1268, to attach an anti-tip guide (2), part number 09P0327, to each rail.
The left rail (1) is part number 03N3845 and the right rail (5) is part number 03N3847.
Rails for an S00 Type Rack
Use one screw, part number 00G1268, to attach a Model S00 type cable guide (4), part number 11K0826,
to the right rail. The model S00 type rack does not have enough room on the left side of the rack for a
cable guide. Install a guide only on the right rails.
Rails for a T00 Type Rack
Use one screw, part number 00G1268, to attach a Model T00 type cable guide (3), part number 00P2402,
to each rail. The model T00 type rack has room for guides on both the left and the right rails.
Rail Installation
As you install the right rail into the rack, install the drawer latch reset bracket, part number 11K0851,
above the right rail. Refer to the Installation Guide for your system drawers to install the rails in your rack.
1
2
3
4
5
3
2
536 Service Guide
