Index Part Number Units Per Assy Description

1 03N3845 1 Left rail assembly

2 03N3847 1 Right rail assembly

3 09P0327 2 Anti-tip bracket

4 00P2402 2 Channel cable bracket (T00 Rack)

5 11K0826 2 Channel cable bracket (S00 Rack)

6 11K0851 1 Reset bracket

7 See note 2 CD-ROM drive

8 41L5691 1 CD-ROM carrier

9 76H4091 1 Diskette drive

10 41L5688 1 Diskette drive carrier

00G1268 As required Screw - M4

33G3907 As required Screw - M3

Note:

See RS/6000 and Eserver pSeries Diagnostic Information for Multiple Bus Systems for part numbers.

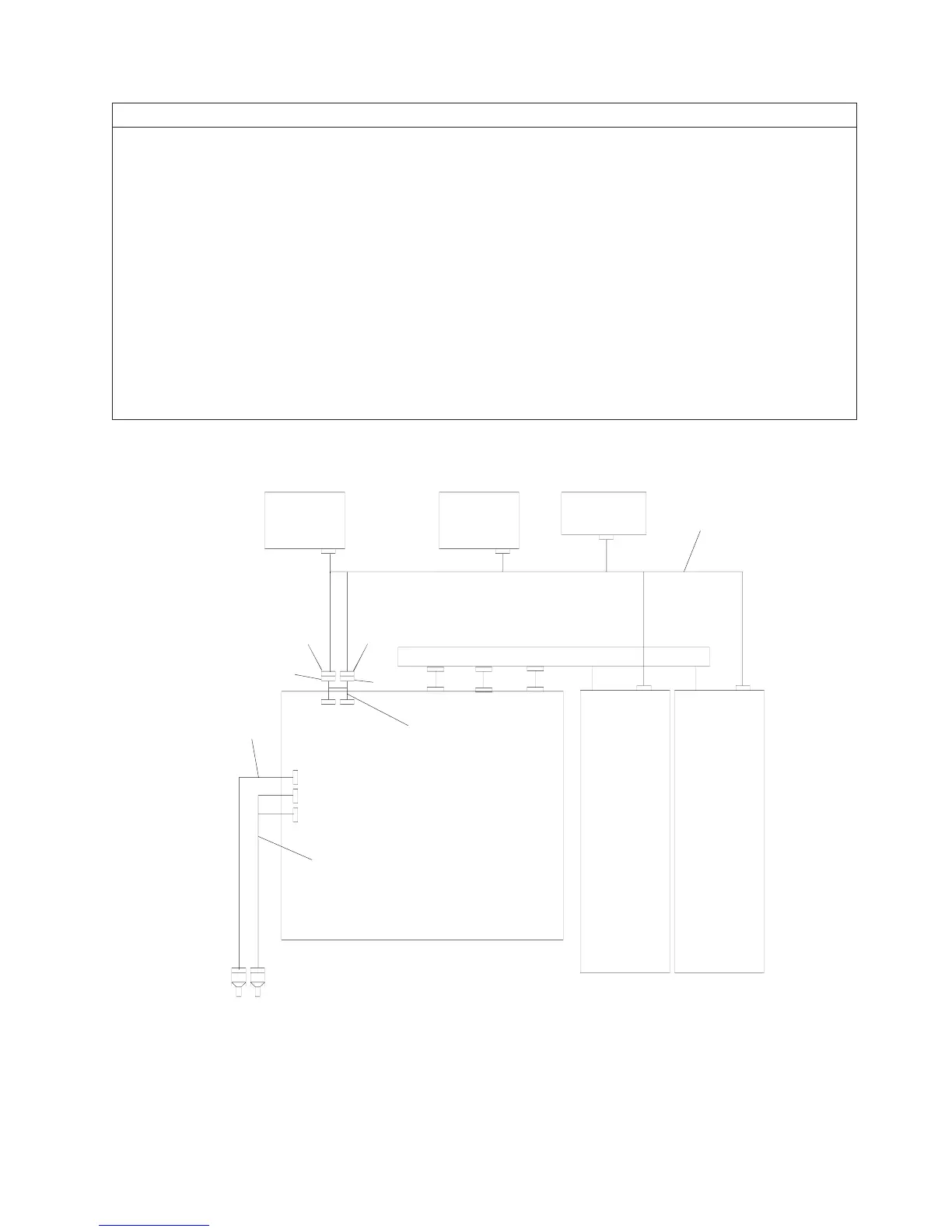

CEC Drawer Internal Cables

System Board

JTAG

V/S COMM

Power

Supply 2

Power

Supply 1

LED Board

Fan 2

Fan 1

J12

+12 V

+3.3 VG

J10

J11

P13

S14

S16

S17

S18

S15

J15

J13

Chapter 11. Parts Information 479
