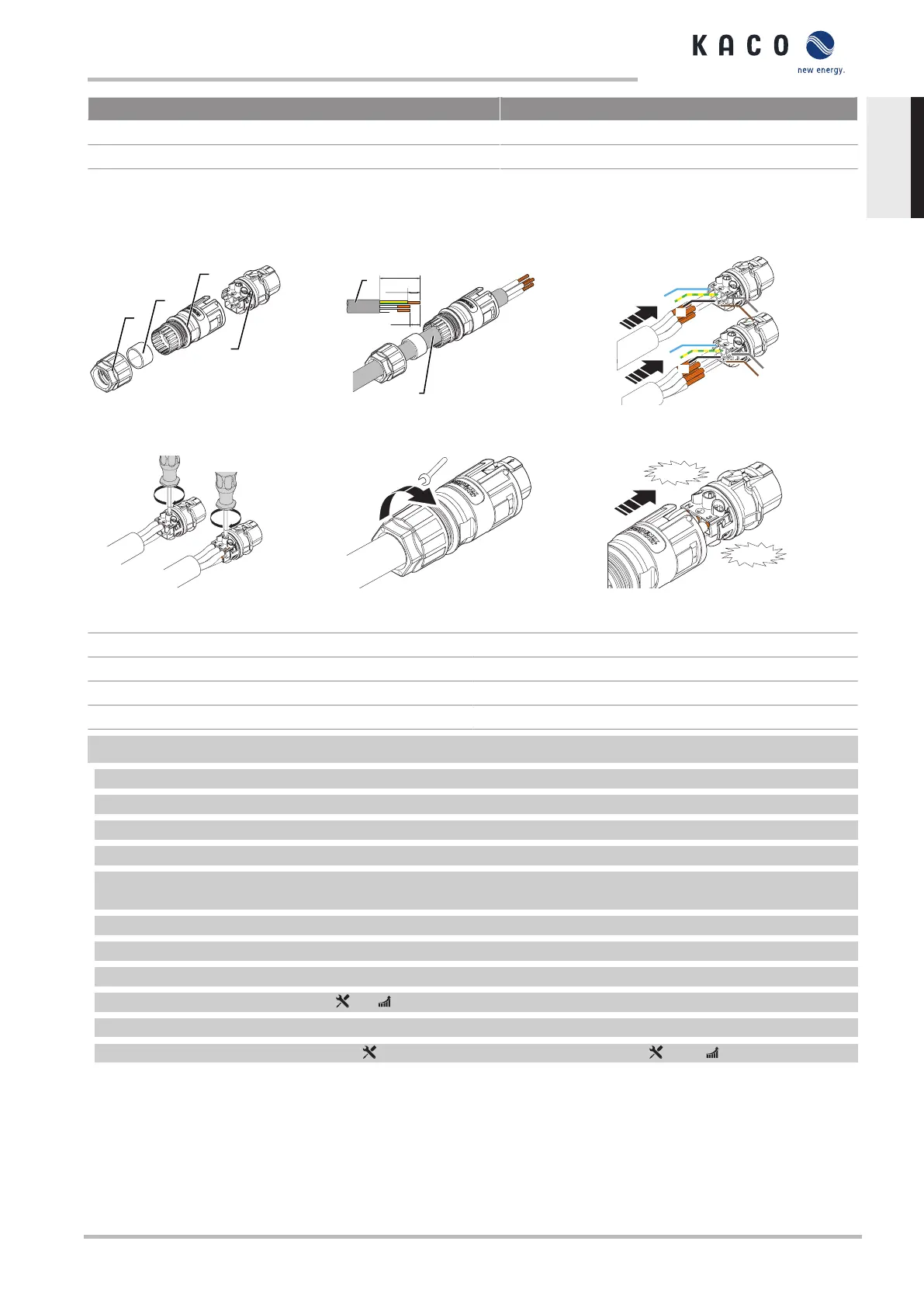

7.4 Connecting the device to the power grid
7.4.1 Configuring the AC connection plug
1
2
3
4
Fig.11: AC connection plug
0,47 In
(12mm)
1,97 In
(50mm)
0,31 In
(8mm)
6
5
50 mm
12 mm
8 mm
Fig.12: Strip the insulation from the
cable
L3
L2
N
PE
L1
L3
L2
N
PE
L1
Fig.13: Connect wires to the contact
carrier
1 Nm
1 Nm
Fig.14: Tighten screws on the housing
30
6,5 Nm
Fig.15: Tighten the cable screw fitting
CLICK
!
C
LICK
!
Fig.16: Press contact carrier into the
housing
Key
1 Cable fitting 4 Contact carrier
2 Seal 5 Line
3 Housing 6 Cable lengths
↻ Connection area opened.
1 Slide the cable fitting over the cable.
2 Select seal according to cable diameter used.
3 Slide the housing and seal over the cable.
4 Remove the insulation from the cable. [sl. 50 mm]
5 Shorten the wires N, L1 by 8 mm if a single-phase connection is present or shorten the wires N, L1, L2, L3 by the same
length in case of a 3-phase connection.
6 Strip the wires N, L1 in case of a single-phase connection or N, L1, L2, L3 in case of a 3-phase connection by 12 mm.
7 Flexible wires must be fitted with wire sleeves in accordance with DIN 46228.
8 Insert wires into the contacts in accordance with the markings on the contact carrier.
9 Tighten screws on contact carrier. [ S_2/ 1 Nm]
10 Press contact carriers into the housing with an audible "click".
11 Secure the housing with a screwdriver [ W_29] and tighten the cable screw fitting. [ W_29/ 6.5 Nm]
» Make the electrical connections.
