16 LIGHTING SYSTEM, INSTRUMENTS 101

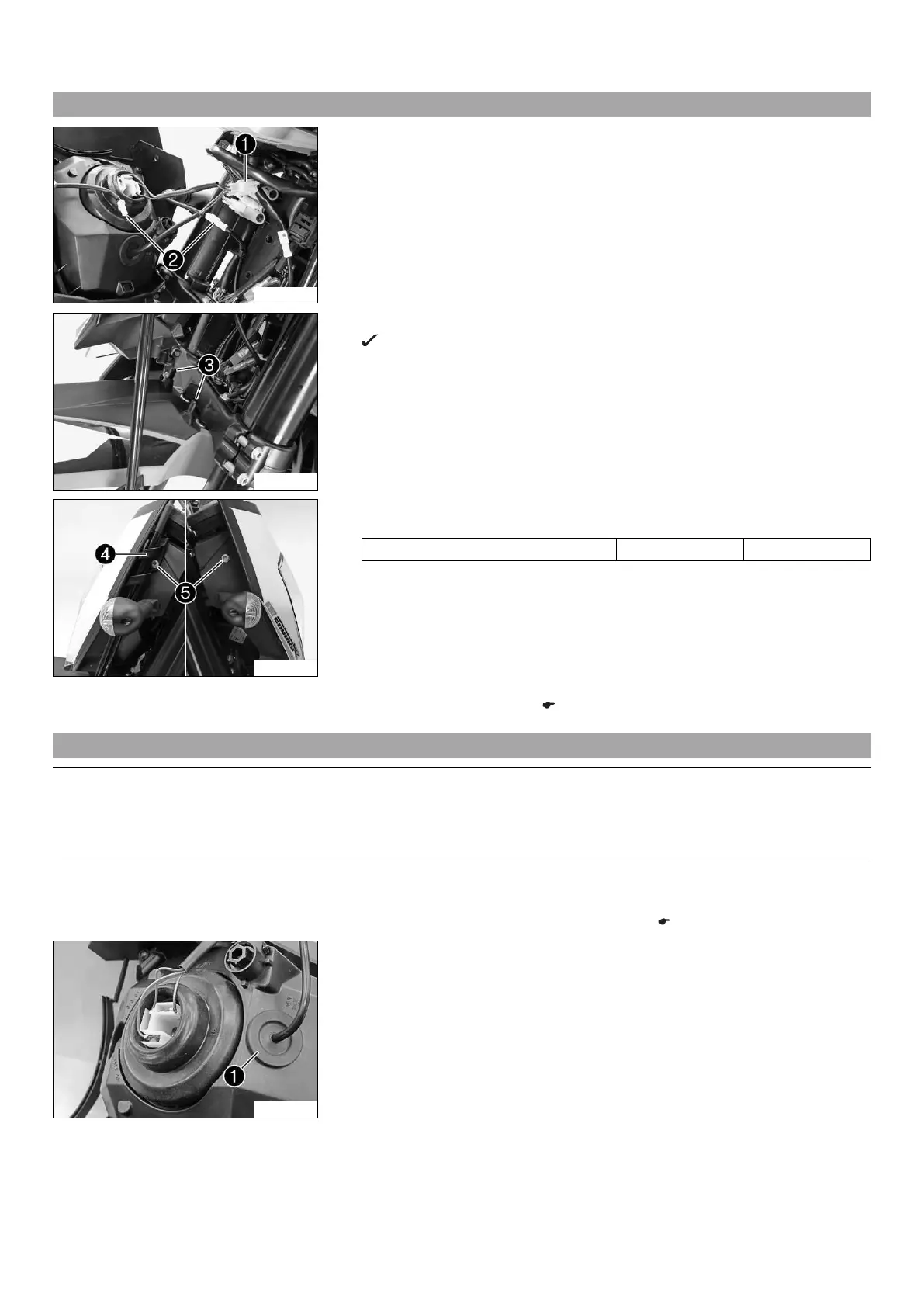

16.5 Installing the headlight mask with the headlight
601794-11
Main work
– Connect the connectors of headlight 1 and turn signal lights 2.
– Check lighting function.
601810-10
– Remove the cloth from the fender and position the headlight mask.
Holding lugs 3 reach into the headlight mask.
601793-11
– Position brake line guide 4. Mount and tighten screws 5.
Guideline
Screw, headlight mask M5 5 Nm (3.7 lbf ft)
Finishing work
– Check the headlight setting. ( p. 100)
16.6 Changing the parking light bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 100)
600610-12
Main work
– Remove protection cap 1.
