KTM 690 Enduro R EU 2012 User Manual

17 ENGINE 149
300079-11

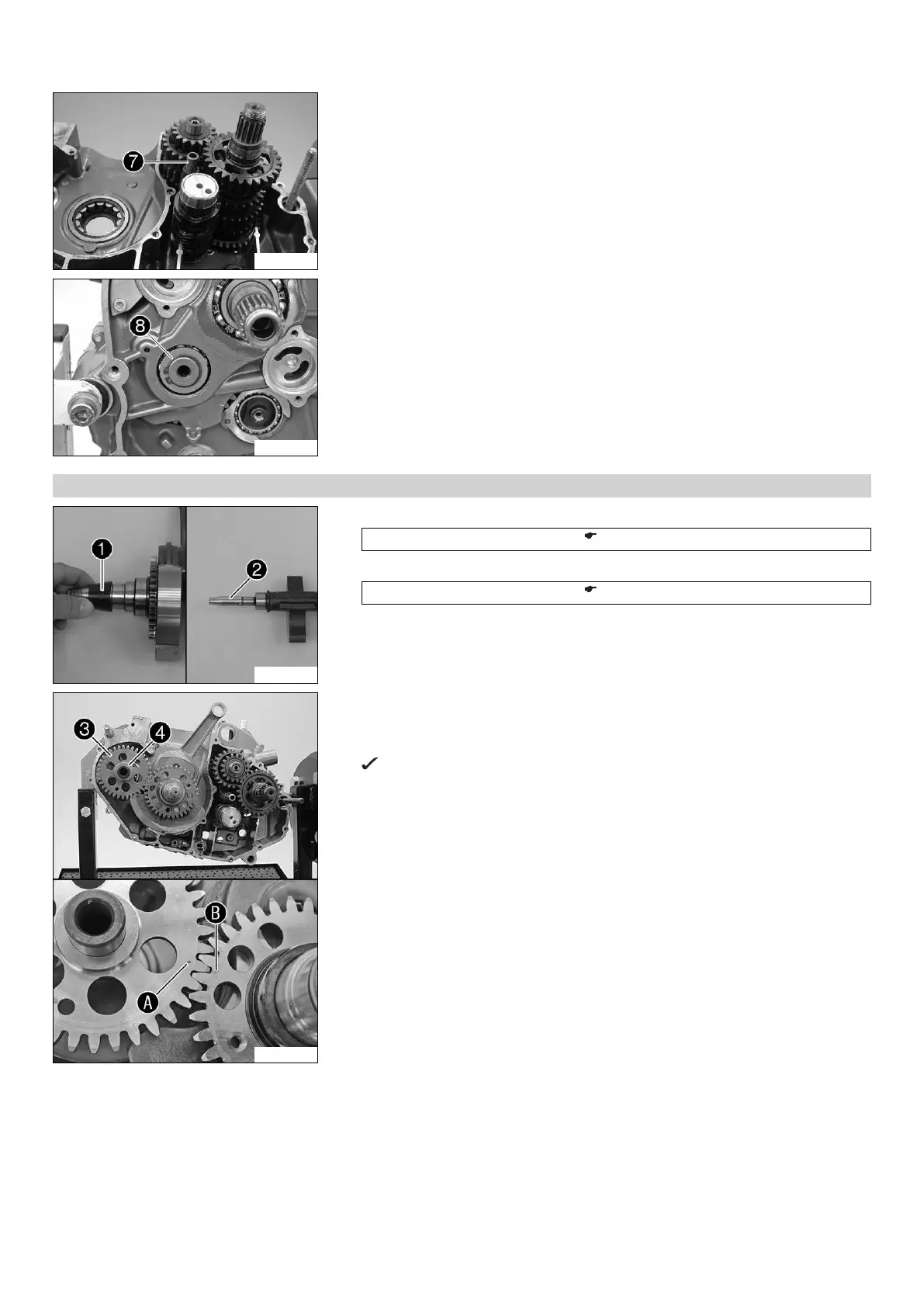

– Install the shift rail 7.
– Check the transmission for smooth operation.
300082-11
– Install the shim 8 and lock ring of the countershaft.
17.5.2 Installing crankshaft and balancer shaft
302136-10
– Mount the special tool 1 on the alternator side of the crankshaft.
Mounting sleeve (75029080000) ( p. 221)
– Mount the special tool 2 on the balancer shaft.
Mounting sleeve (58529005000) ( p. 215)
302135-10
– Push the crankshaft into the bearing seat and take off the special tool.
– Grease the shaft seal rings of the balancer shaft.
– Push the balancer shaft 3 into the bearing seat and take off the special tool.
Align marks A and B.
– Mount stop disk 4.
