6 FORK, TRIPLE CLAMP 24

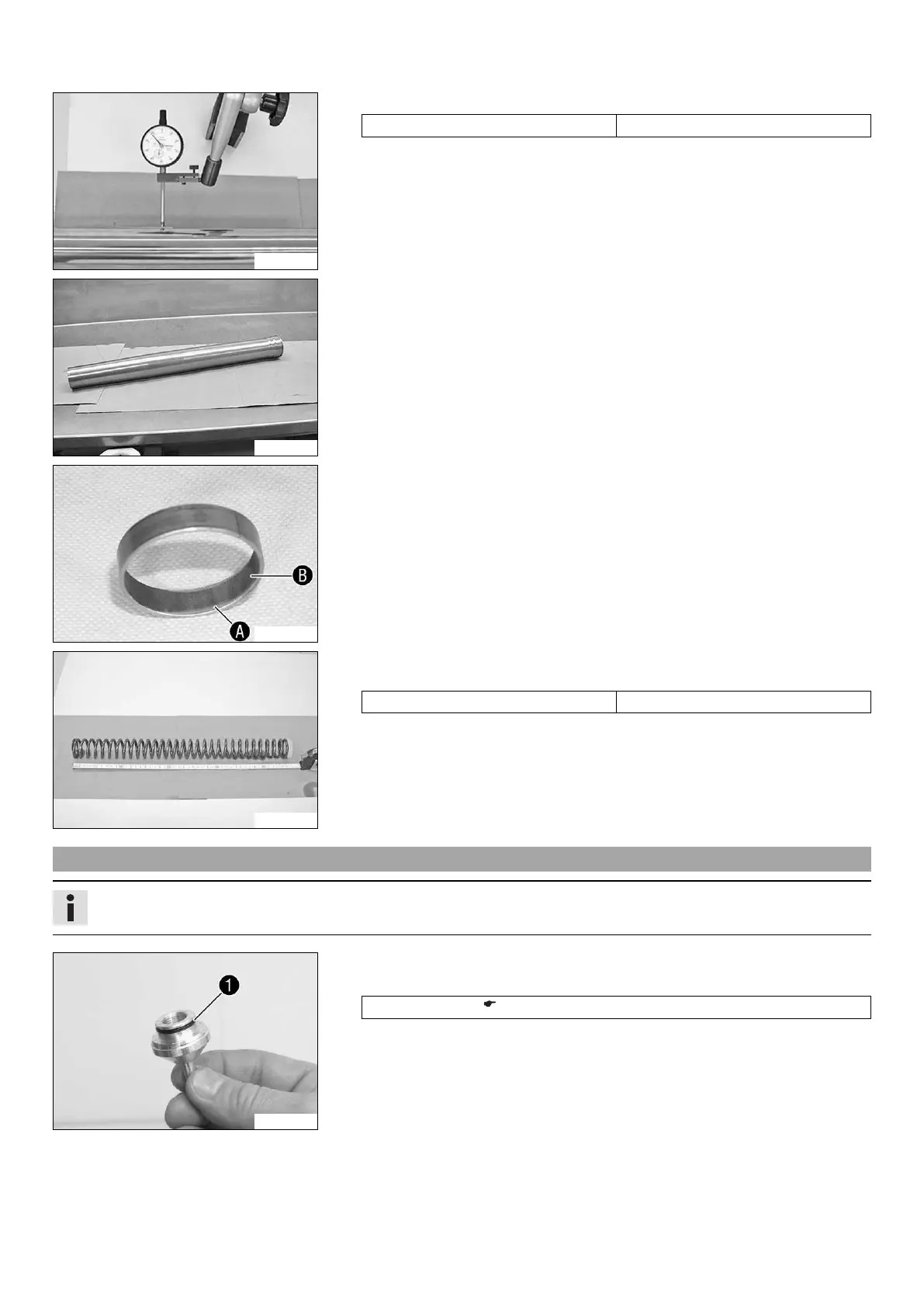

200685-10
– Measure the run-out of the inner tube.
Run-out of inner tube ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is greater than the specified value:
– Replace the inner tube.
200632-10
– Check the outer tube for damage.
» If damage is found:
– Replace the outer tube.
200665-10
– Check the surface of the sliding bushings.
» If the bronze-colored layer A under sliding layer B is visible:
– Replace the sliding bushings.
200666-10
– Check the spring length.
Guideline
Spring length with preload spacer(s) 472 mm (18.58 in)
» If the measured value is greater than the specified value:
– Reduce the strength of the pretensioning bushes.
» If the measured value is less than the specified value:
– Increase the strength of the preload spacers.
6.14 Assembling the tap compression
Info
The steps are identical for both fork legs.
201484-11
– Mount O-ring 1.
– Lubricate the O-ring.
Lubricant (T158) ( p. 212)
