17 ENGINE 104

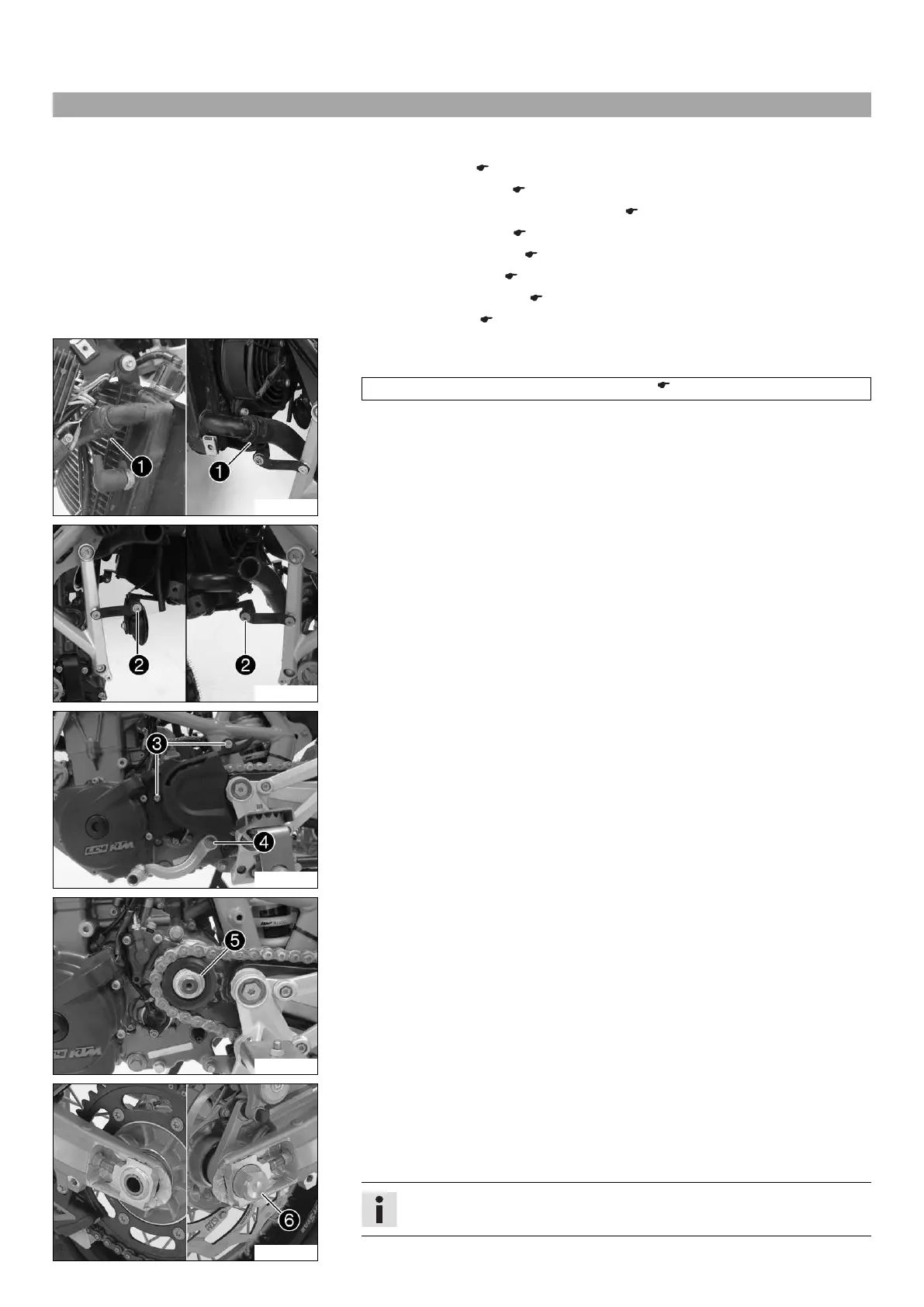

17.1 Removing the engine
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 62)
– Disconnect the battery. ( p. 82)
– Raise the motorcycle with the work stand. ( p. 10)
– Take off the side cover. ( p. 63)
– Remove the air filter box. ( p. 59)
– Remove the manifold. ( p. 56)
– Remove the engine guard. ( p. 36)
– Drain the coolant. ( p. 166)
300211-10
Main work
– Loosen the spring band clamp 1 using the special tool. Detach the radiator hoses.
Pliers for spring band clamp (60029057100) ( p. 217)
202067-10
– Remove screws 2.
202068-10
– Remove screws 3.
– Take off the engine sprocket cover.
– Remove screw 4.
– Take off the shift lever.
202069-10
– Bend open lock washer 5.
– Have an assistant operate the rear brake.
– Remove the nut of the engine sprocket with the lock washer.
300215-10
– Remove nut 6. Remove the chain adjuster.
– Pull out the wheel spindle only far enough to allow the rear wheel to be pushed for-
ward.
– Push the rear wheel forward as far as possible and take the chain off the rear
sprocket.
Info
The rear wheel does not need to be fully removed.
