17 ENGINE 111

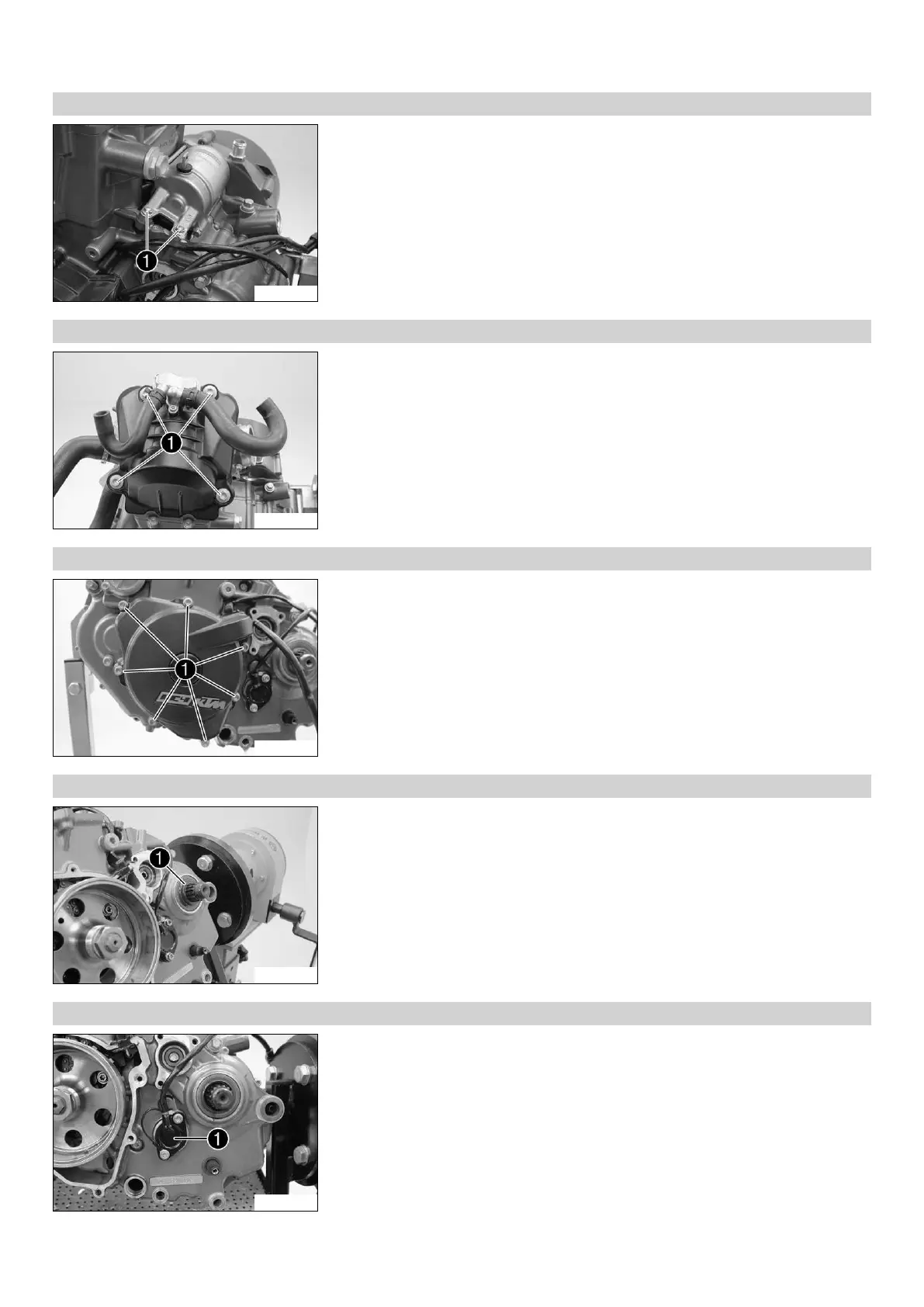

17.3.3 Removing starter motor

300001-01

– Remove screws 1. Take off the starter motor.

17.3.4 Removing valve cover

300003-10

– Remove screws 1. Take off the valve cover with the valve cover seal.

17.3.5 Removing the alternator cover

300004-10

– Remove screws 1. Take off the alternator cover.

– Remove dowels.

17.3.6 Removing spacer

302124-10

– Remove the spacer 1 of the countershaft.

17.3.7 Removing gear position sensor

302126-10

– Remove screws. Remove the gear position sensor 1.
