6 FORK, TRIPLE CLAMP 23
201482-10
Main work

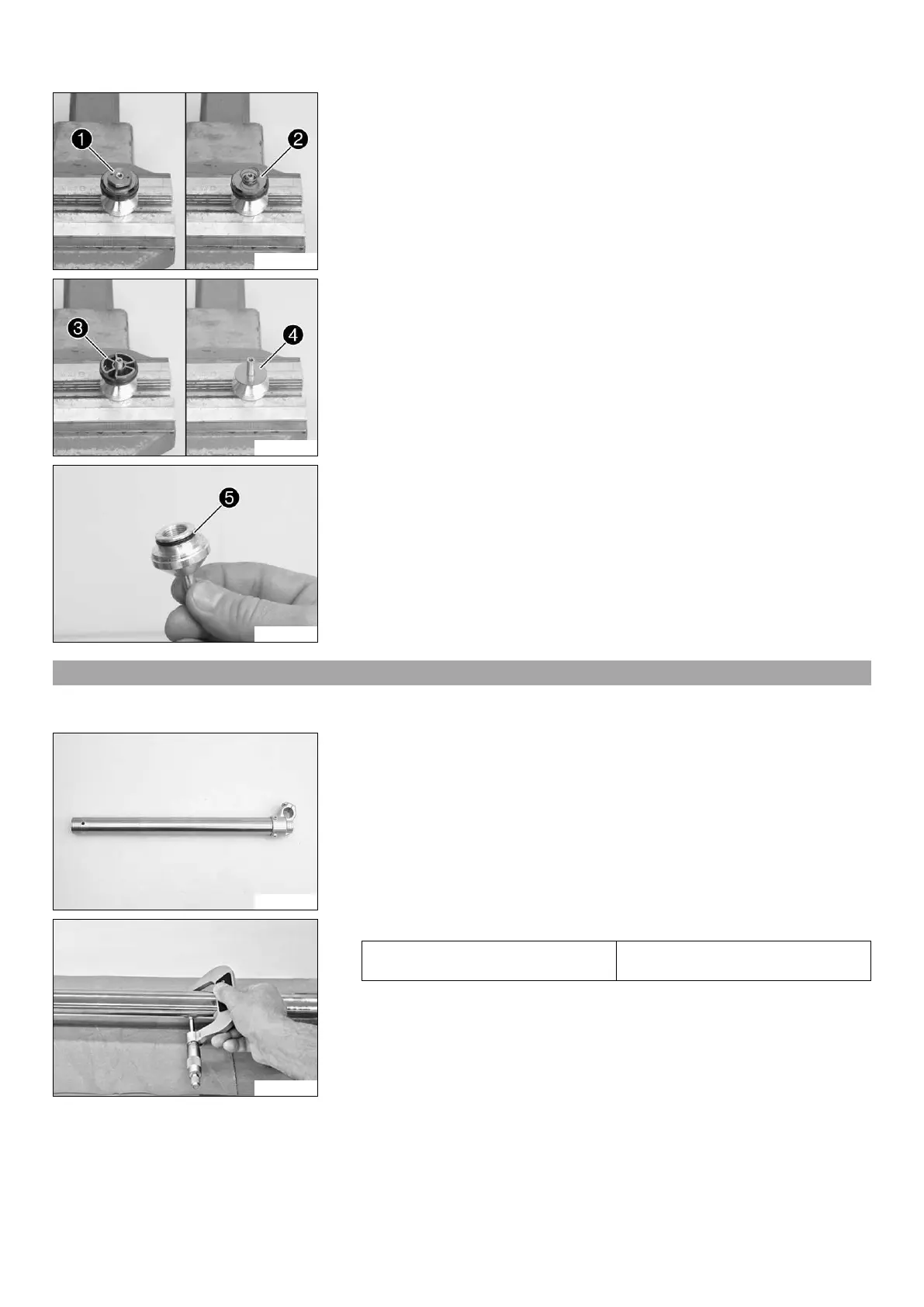

– Clamp the tap compression in a bench vise using soft jaws.
– Remove nut 1.
– Remove the spring.
– Remove washer 2.
201483-10
– Remove piston 3.
– Remove shim stack 4.
201484-10
– Extract the tap compression.
– Remove O-ring 5.
6.13 Checking the fork legs
Condition
Fork dismantled.
200728-10
– Check the inner tube and the axle clamp for damage.
» If damage is found:
– Replace the inner tube.
200684-10
– Measure the external diameter of the inner tube in several places.
External diameter of inner tube 47.975… 48.005 mm (1.88878…
1.88996 in)
» If the measured value is less than the specified value:
– Replace the inner tube.
