17 ENGINE 146

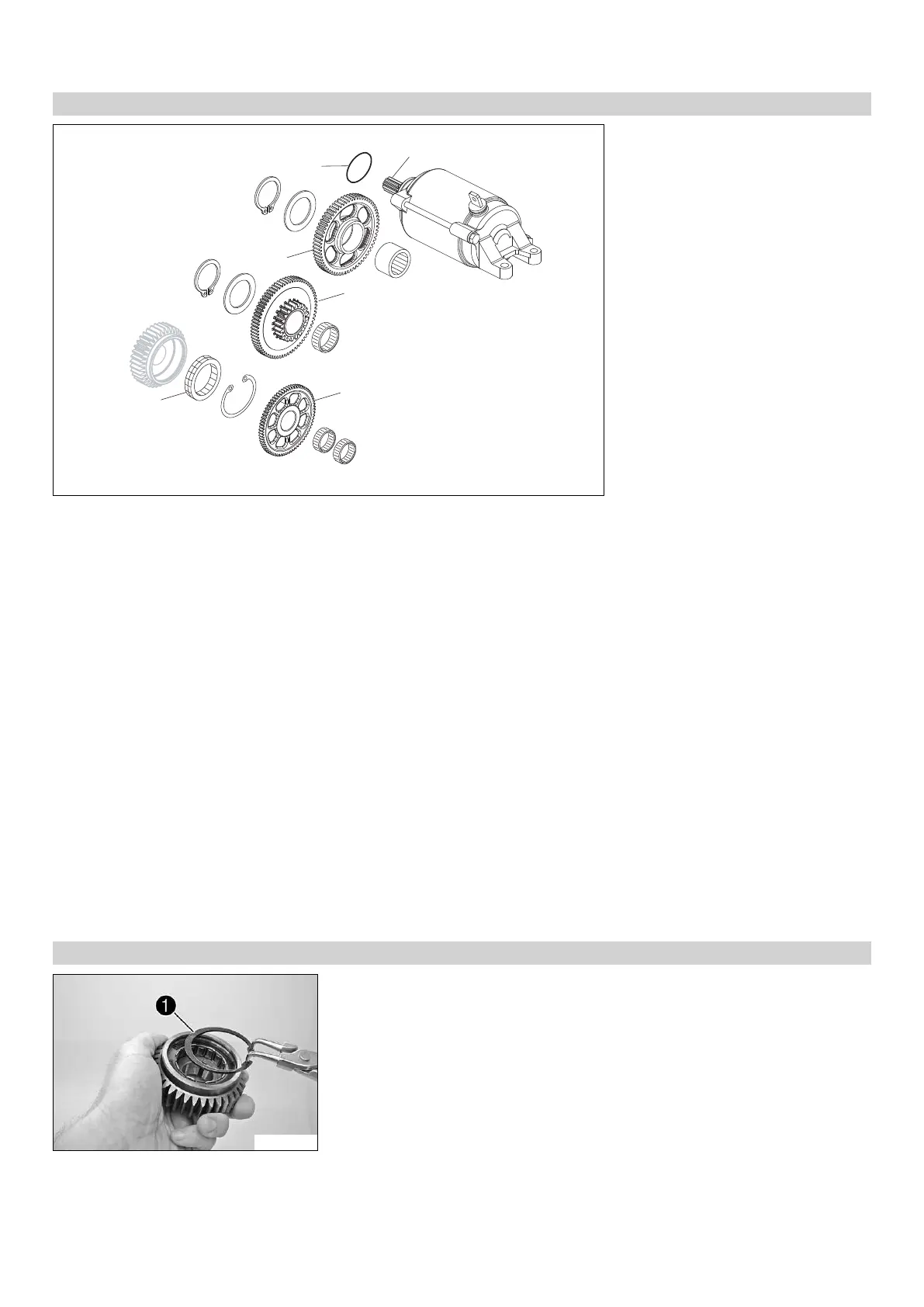

17.4.39 Checking the starter drive
55
66
11
22
44
33
300129-01
– Check the teeth and seating of the starter idler gear 1 for damage and wear.
» If there is damage or wear:
– Replace the starter idler gear and/or needle bushing.
– Check the teeth and seating of the torque limiter 2 for damage and wear.
» If there is damage or wear:
– Replace the torque limiter and/or needle bushing.
– Check freewheel gear 3 and bearing when removed for damage and wear.
» If there is damage or wear:
– Replace the freewheel gear and/or the bearing.
– Check freewheel 4 when removed for damage and wear.
» If there is damage or wear:
– Replace the freewheel.
– Check the toothing of the starter motor 5 for damage and wear.
» If there is damage or wear:
– Replace the starter motor.
– Clamp the minus (negative) cable of a 12 Volt power supply to the starter motor housing. Briefly connect the plus (positive) cable
of the power supply to the starter motor connection.
» If the starter motor does not turn when you close the power circuit:
– Replace the starter motor.
– Replace the O-ring 6 of the starter motor.
17.4.40 Removing freewheel
300127-10
– Extract the lock ring 1 from the groove using suitable pliers.
