KTM 690 Enduro R EU 2012 User Manual

17 ENGINE 133
200172-10

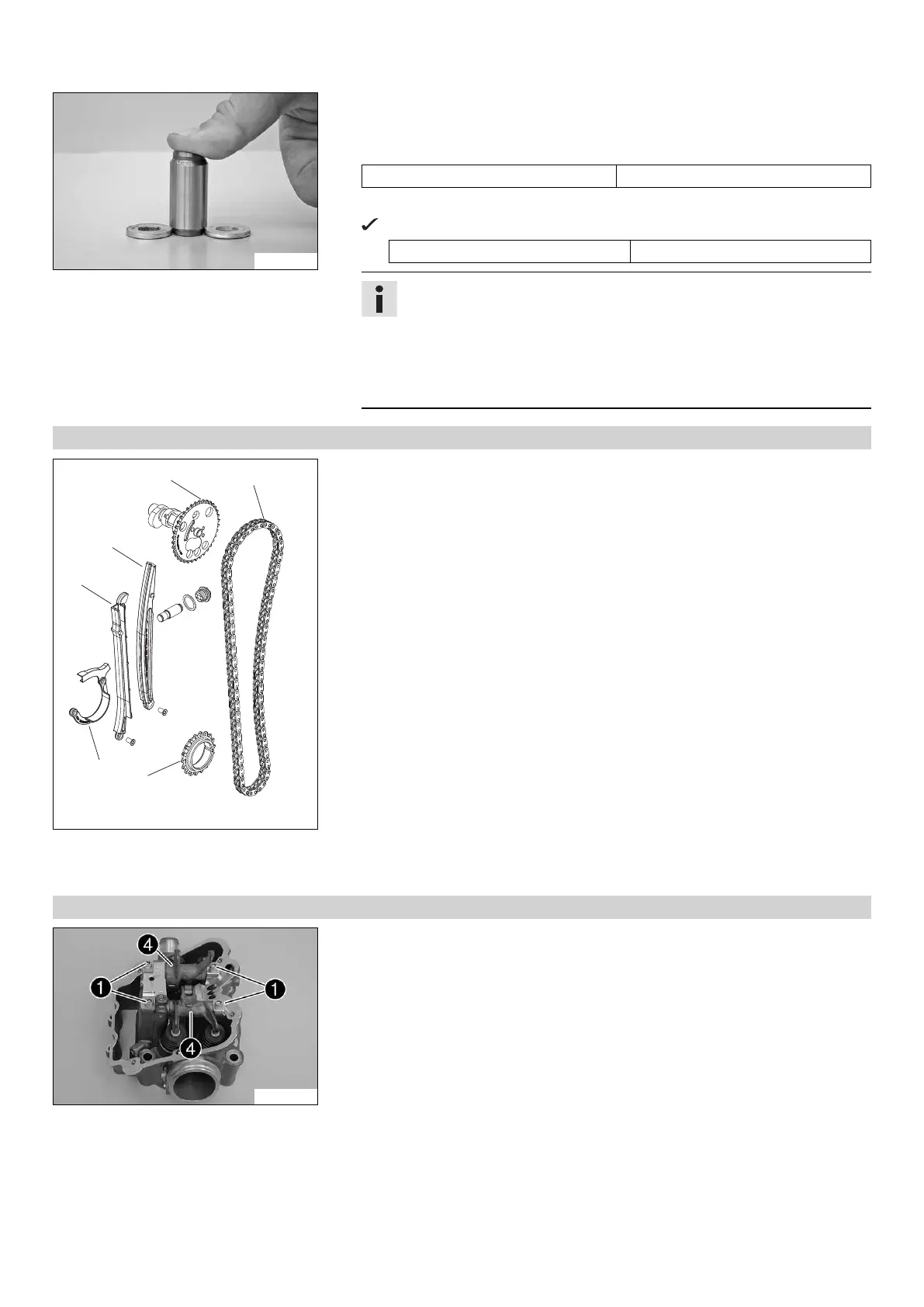

– Place two compensating disks or similar aids next to the piston of the timing chain
tensioner. This should ensure that when pushed down, the piston does not fully
withdraw.
Guideline
Thickness of the compensating disks 2… 2.5 mm (0.08… 0.098 in)
– Release the timing chain tensioner.
The latching system locks and the piston stops moving.
End position of piston after latching 3 mm (0.12 in)
Info
This position is necessary for installation.
If the timing chain tensioner is now pressed in once more (while it is
installed) and then pulled out no more than halfway (preventing it from
coming out fully), the latching system locks and the timing chain tensioner
can no longer be compacted; this function is necessary to ensure sufficient
tension of the timing chain, even at low oil pressure.
17.4.19 Checking timing assembly
0
0
11
0
0
11
0
0
22
0
0
33
0
0
44
0
0
55
300113-01
– Clean all parts well.
– Check the timing chain gear / timing chain sprocket 1 for damage and wear.
» If there is damage or wear:
– Replace the timing chain gear / timing chain sprocket.
– Check timing chain tensioning rail 2 for damage and wear.
» If there is damage or wear:
– Change the timing chain tensioning rail.
– Check timing chain guide rail 3 for damage and wear.
» If there is damage or wear:
– Change the timing chain guide rail.
– Check timing chain securing guide 4 for damage and wear.
» If there is damage or wear:
– Replace the timing chain securing guide.
– Check timing chain 5 for damage and wear.
» If there is damage or wear:
– Change the timing chain.
– Check that the timing chain links move easily. Let the timing chain hang down
freely.
» If the chain links no longer straighten out:
– Change the timing chain.
17.4.20 Removing rocker arm
300113-10
– Remove screws 1.
