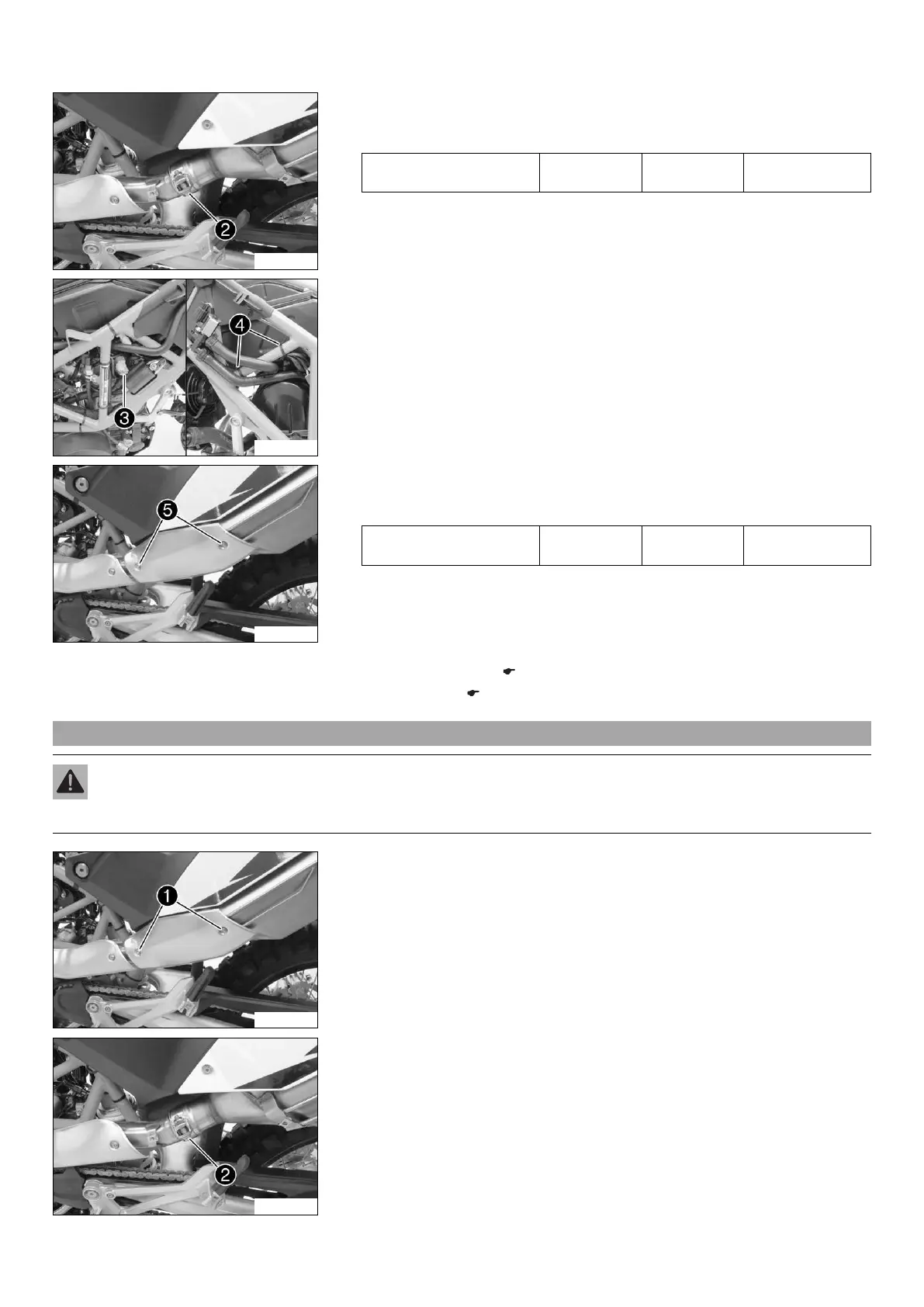

10 EXHAUST 57
202034-11
– Position the exhaust clamp.
– Tighten screw 2.
Guideline
Screw, main silencer
clamp
M8 12 Nm
(8.9 lbf ft)
Copper paste
202035-10
– Plug in connector 3 of the lambda sensor. Position the cable and secure it with
cable binder 4.
202032-11
– Position the heat guard.
– Mount and tighten screws 5.
Guideline
Screw, exhaust heat shield M5 8 Nm
(5.9 lbf ft)
Loctite
®
243™
Finishing work
– Mount the side cover. ( p. 63)
– Mount the seat. ( p. 63)
10.3 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
202032-12
– Remove screws 1.
– Take off the exhaust heat shield.
202034-12
– Loosen screw 2.
