6 FORK, TRIPLE CLAMP 18

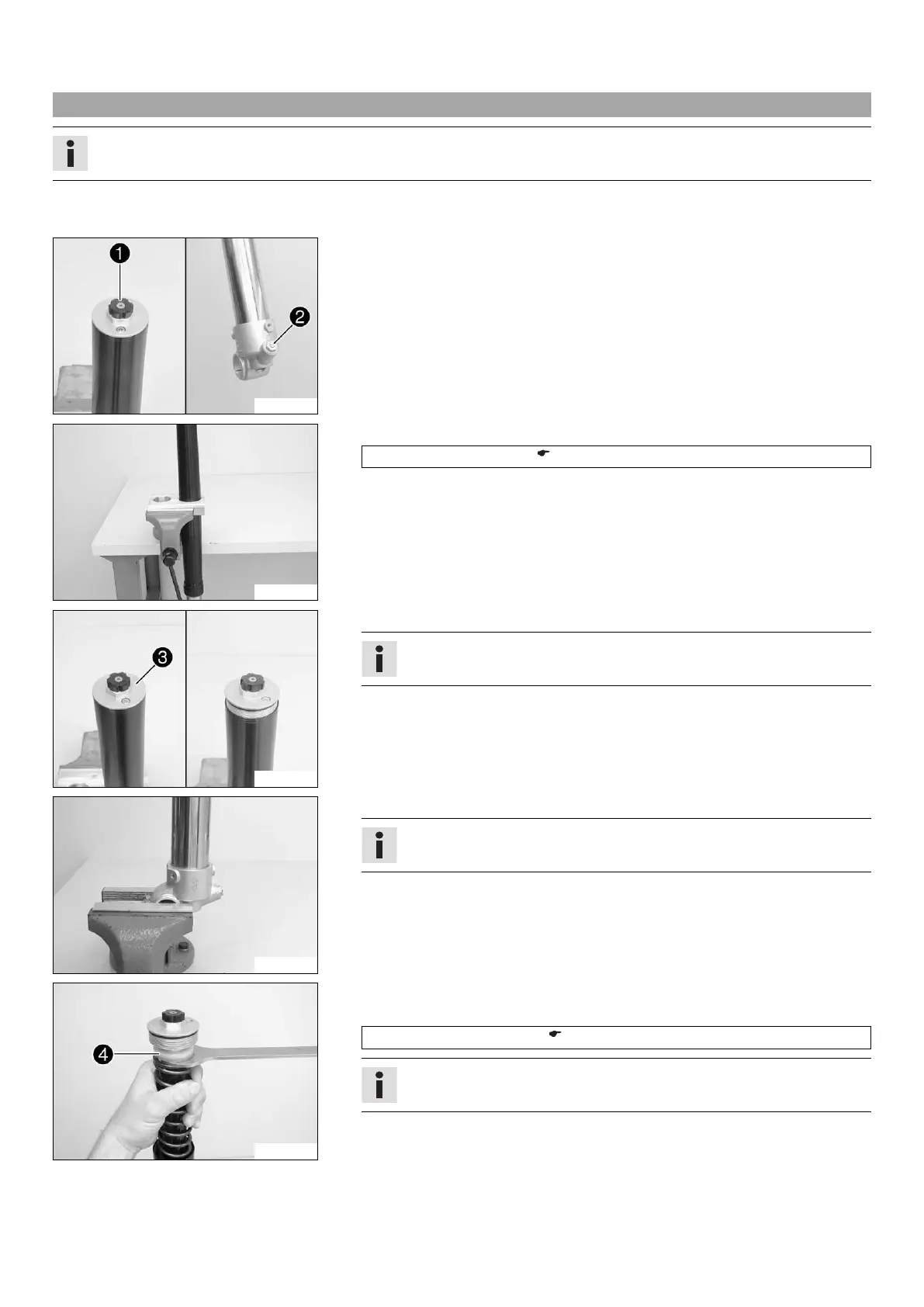

6.10 Disassembling the fork legs
Info
The steps are identical for both fork legs.
Condition
The fork legs are disassembled.
201470-10
– Note down the present state of rebound damping 1 and compression damping 2.
– Completely open the adjusters of the rebound and compression damping.
200643-10
– Clamp the fork leg in the area of the lower triple clamp.
Clamping stand (T1403S) ( p. 225)
200644-12
– Loosen screw cover 3.
Info
The screw cover cannot be removed yet.
201471-10
– Release the fork leg and clamp it with the axle clamp.
Info
Use soft jaws.
200646-12
– Push the outer tube downward.
– Pull the spring down. Mount the special tool on the hexagonal part.
Open-end wrench (T14032) ( p. 225)
Info
Preload spacers 4 should be above the special tool.
