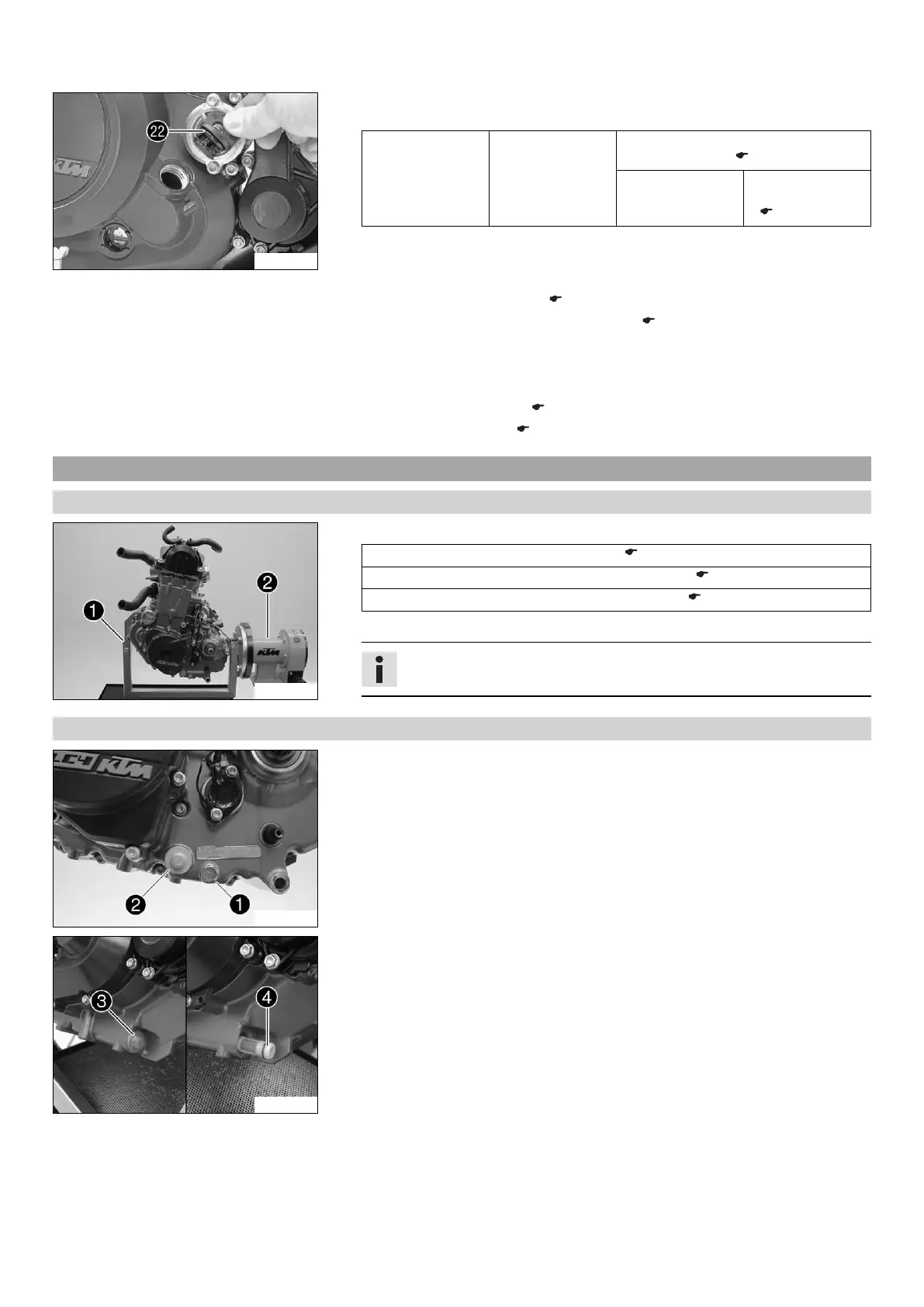

17 ENGINE 110
300802-11
– Remove the oil filler plug with O-ring cm from the clutch cover and fill up with
engine oil.
Engine oil 1.70 l (1.8 qt.) Engine oil (SAE 10W/60)
(00062010035) ( p. 210)
Alternative engine
oil
Engine oil
(SAE 10W/50)
( p. 210)
– Install and tighten the oil filler plug with O-ring cm.
Finishing work
– Fill/bleed the cooling system. ( p. 166)
– Remove the motorcycle from the work stand. ( p. 11)
– Take a short test ride.
– Read out the fault memory using the KTM diagnostics tool.
– Check the engine for leakage.
– Check the engine oil level. ( p. 169)
– Check the coolant level. ( p. 168)
17.3 Engine disassembly
17.3.1 Clamping the engine into the engine assembly stand
300144-10
– Mount special tool 1 on engine work stand 2.
Engine assembly stand (61229001000) ( p. 217)
Support for engine assembly stand (75012001060) ( p. 218)
Holder for engine assembly stand (75012001070) ( p. 218)
– Mount the engine on special tool 1.
Info
Have an assistant help you or use a crane.
17.3.2 Draining the engine oil
300002-10
– Remove the oil drain plug 1 with the magnet and seal ring.
– Remove plug 2 with oil screen and the O-rings.
300161-10
– Remove plug 3 with oil screen 4 and the O-rings.
– Completely drain the engine oil.
