18 CLUTCH 165

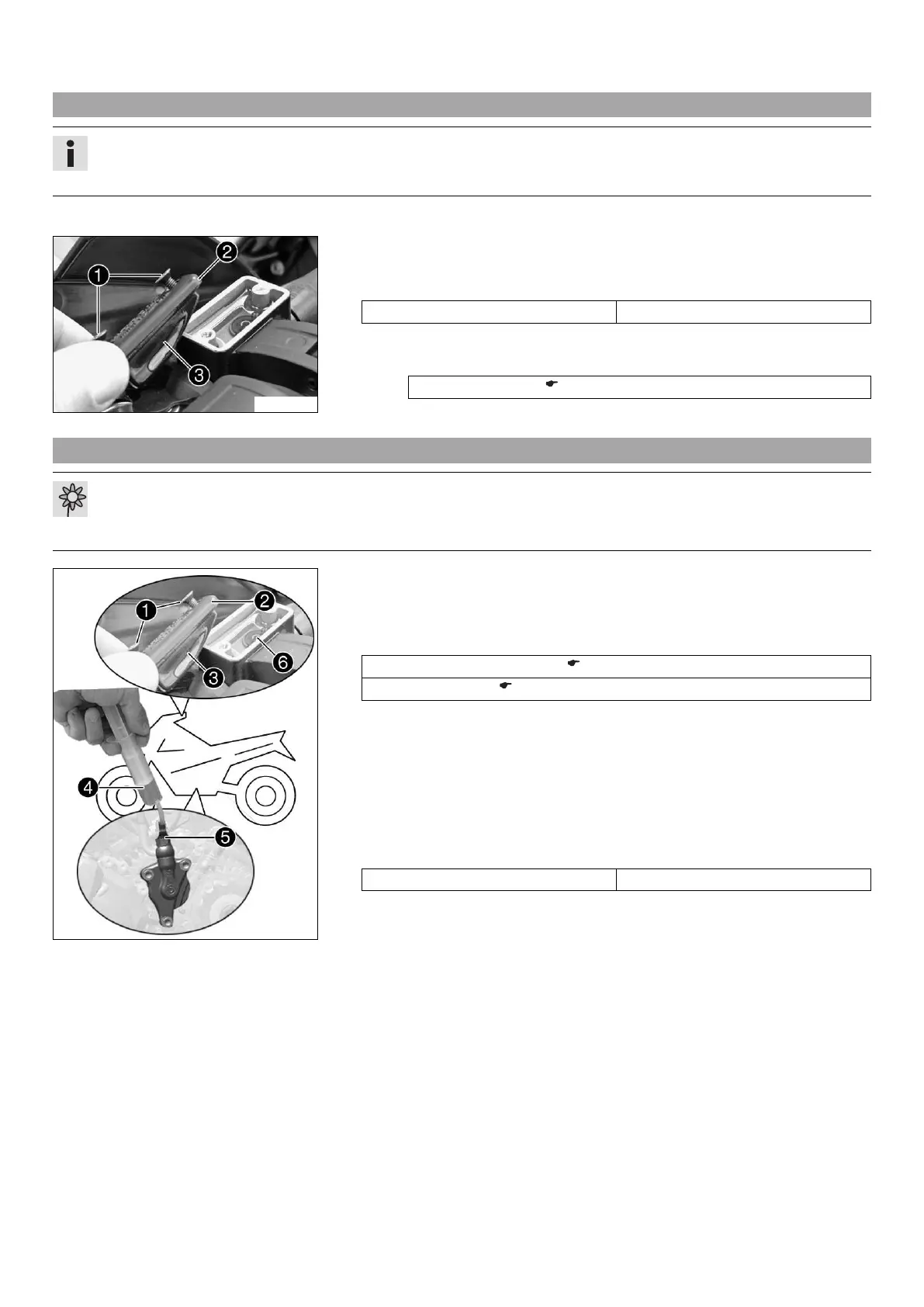

18.1 Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
601788-10
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the coolant does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 211)
– Position the cover with the membrane. Mount and tighten the screws.
18.2 Changing the hydraulic clutch fluid
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
202086-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Fill bleeding syringe 4 with the appropriate hydraulic fluid.
Bleed syringe (50329050000) ( p. 215)
Hydraulic fluid (15) ( p. 211)
– On the clutch slave cylinder, remove bleeder screw 5 and mount bleeding
syringe 4.
– Inject the liquid into the system until it escapes from hole 6 of the master cylinder
without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten the bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below top edge of container 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
