6 FORK, TRIPLE CLAMP 15
6.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
– Tie down the rear of the vehicle.
202022-10

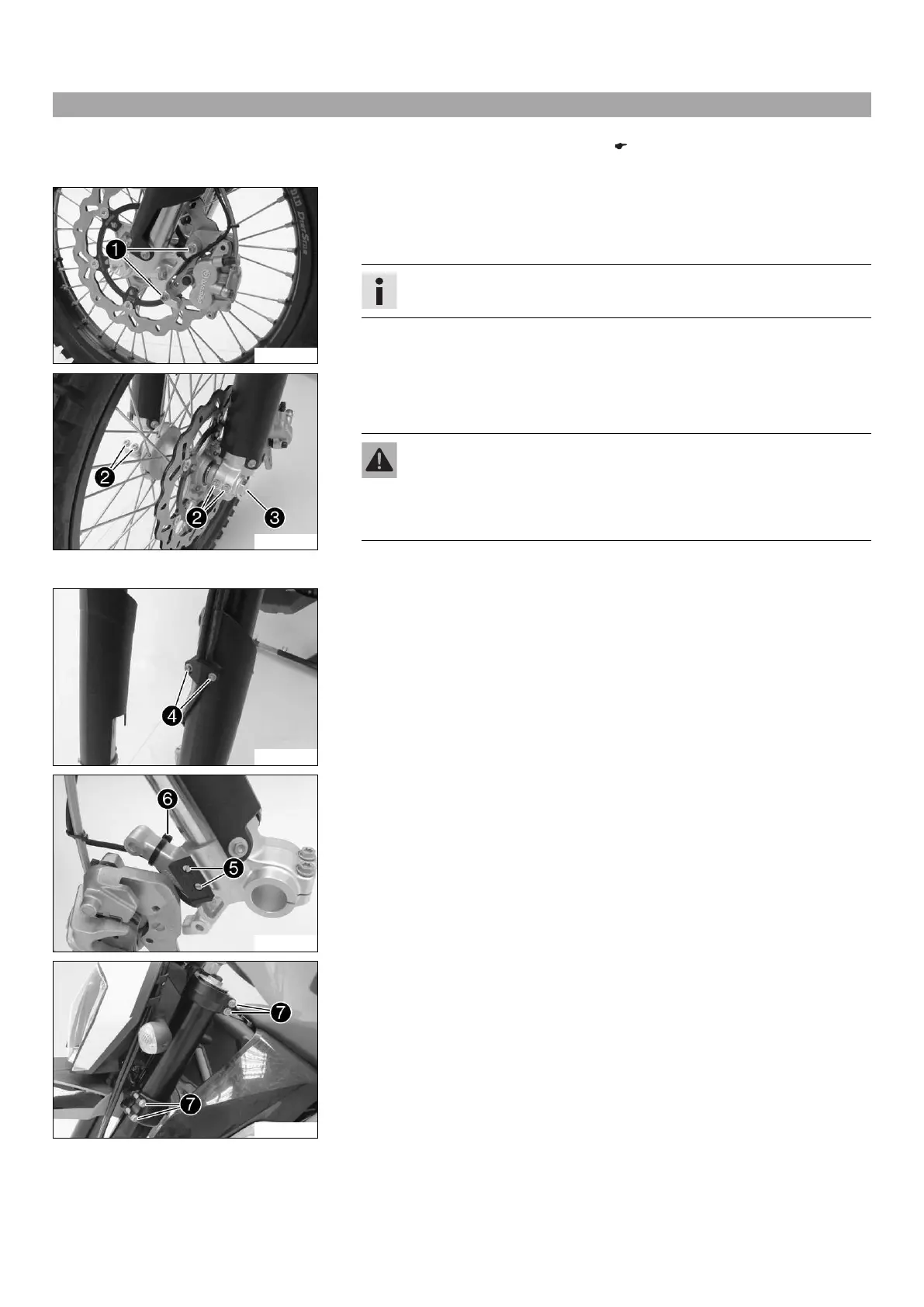

Main work
– Remove screws 1.
– Press back the brake linings with a light lateral tilting of the brake caliper on the
brake disc. Carefully pull the brake caliper backwards from the brake disc.
Info
Do not pull the hand brake lever while the brake caliper is removed.
202023-10
– Loosen screws 2 and screw 3.
– Unscrew screw 3 about 6 turns and press your hand on the screw to push the
wheel spindle out of the axle clamp. Remove screw 3.
Warning
Danger of accidents Reduced braking effect caused by damaged brake
discs.
– Always lay the wheel down in such a way that the brake discs are not
damaged.
– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of
the fork.
202024-10
– Remove screws 4. Take the brake line and wiring harness out of the clamp.
202025-10
– Remove the screws of the wheel speed sensor 5. Hang the wheel speed sensor to
one side.
– Remove cable binder 6.
202026-10
– Loosen screws 7 of the triple clamp on both sides. Remove the fork legs from the
bottom.
