17 ENGINE 150

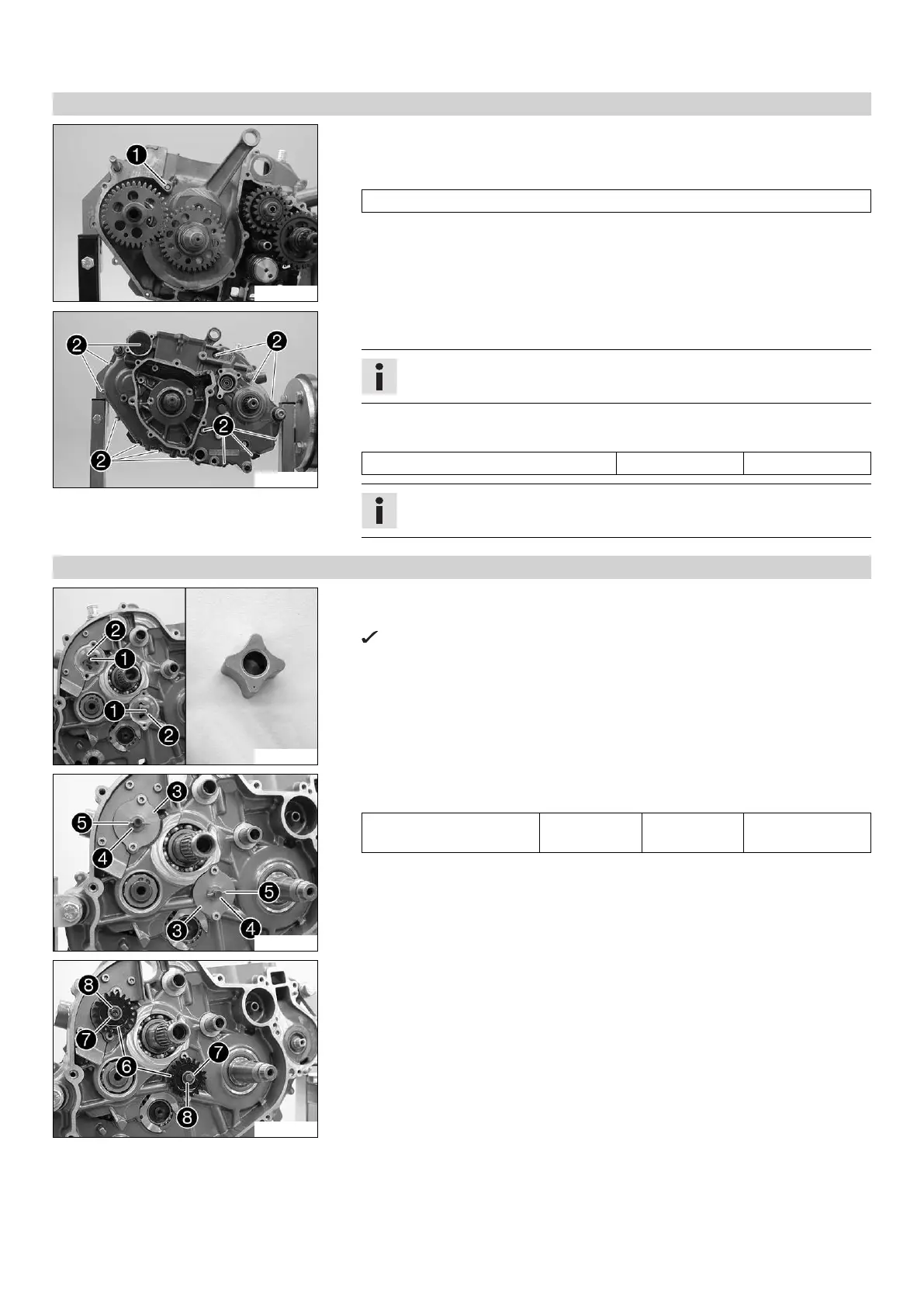

17.5.3 Installing left engine case
302132-11
– Mount the dowels.
– Mount the O-ring 1.
– Degrease the sealing area. Apply the sealing compound to the left engine case half.
Loctite
®
5910
300075-11
– Put on the left engine case half. If necessary, tap lightly with a rubber mallet and
turn the transmission shafts.
Info
Do not tighten the engine case sections using the screws.
– Install the screws 2 and tighten them diagonally.
Guideline
Screw, engine case M6 10 Nm (7.4 lbf ft)
Info
Install the screw in the oil filter housing with a new copper washer.
17.5.4 Installing oil pumps
300073-10
– Install pins and internal rotors on both oil pump shafts.
– Mount external rotors in the engine case.
The marking is not visible after mounting.
– Mount the oil pump shafts 1 with internal rotors 2.
– Oil the parts.
300071-11
– Position both oil pump covers 3. Mount and tighten the screws.
Guideline
Screw, oil pump cover M5 6 Nm
(4.4 lbf ft)
Loctite
®
243™
– Install washers 4 and pins 5.
300070-11
– Mount the oil pump gears 6, washers 7 and lock washers 8.
