17 ENGINE 118
302125-10

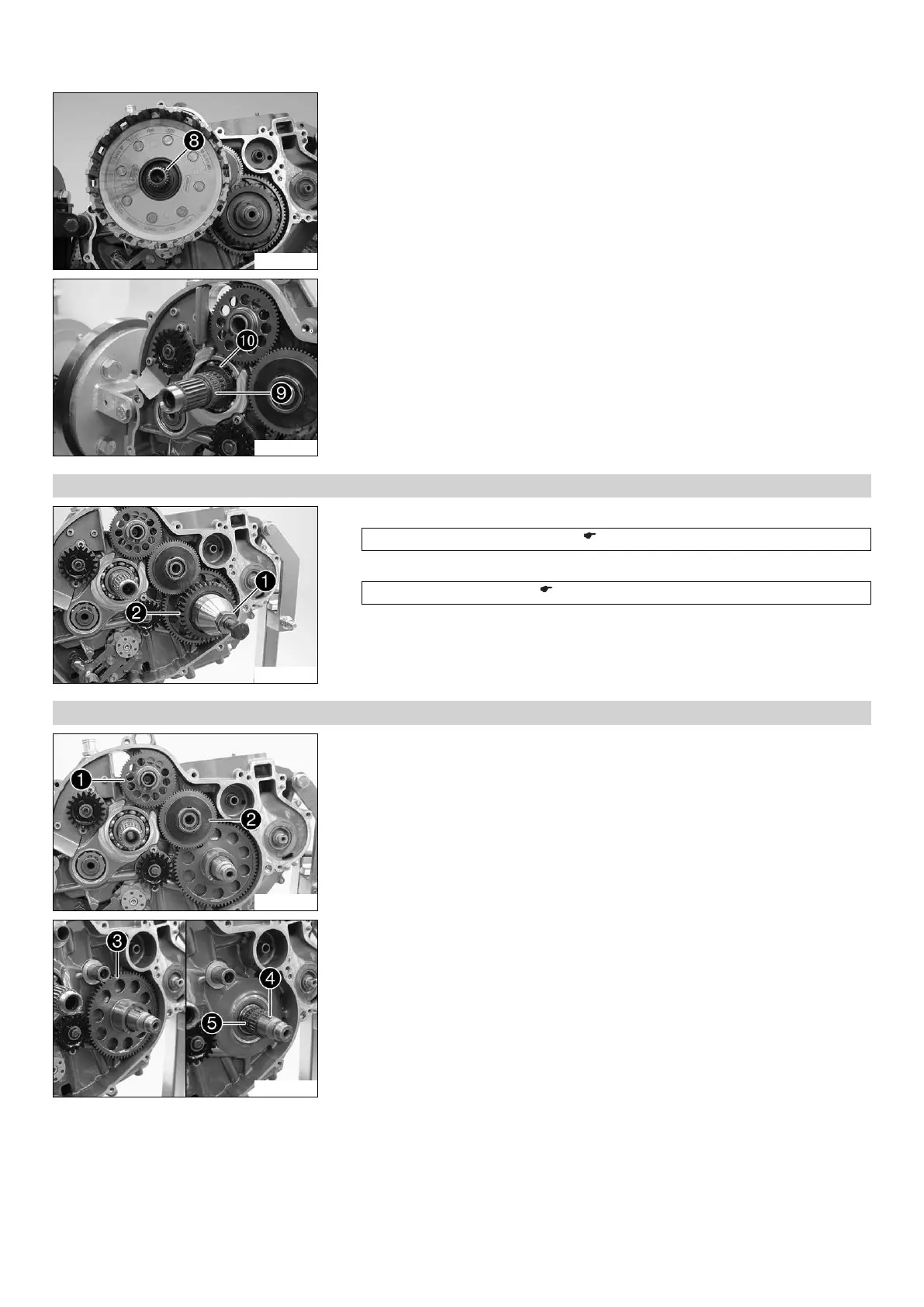

– Take off the stepped washer and remove the half-washers 8.
– Take off the clutch cage.
300056-10
– Remove needle bearing 9 and supporting plate bk.
17.3.24 Removing primary gear
300062-10
– Plug the special tool into the crankshaft.
Protection cover (75029090000) ( p. 221)
– Screw the special tool 1 on to the primary gear 2.
Extractor (75029021000) ( p. 218)
– Hold it using the special tool and pull off the primary gear by turning the screw in.
– Remove the special tools.
17.3.25 Removing starter drive
300064-10
– Remove the lock ring of the starter idler gear 1 and the torque limiter 2.
– Take off the starter idler gear 1 with the washers.
– Remove the torque limiter 2 with the washers and needle bearing.
300065-10
– Take off the free-wheel gear 3.
– Remove the woodruff key 4 and both needle bearings 5.
