6 FORK, TRIPLE CLAMP 22
200697-10

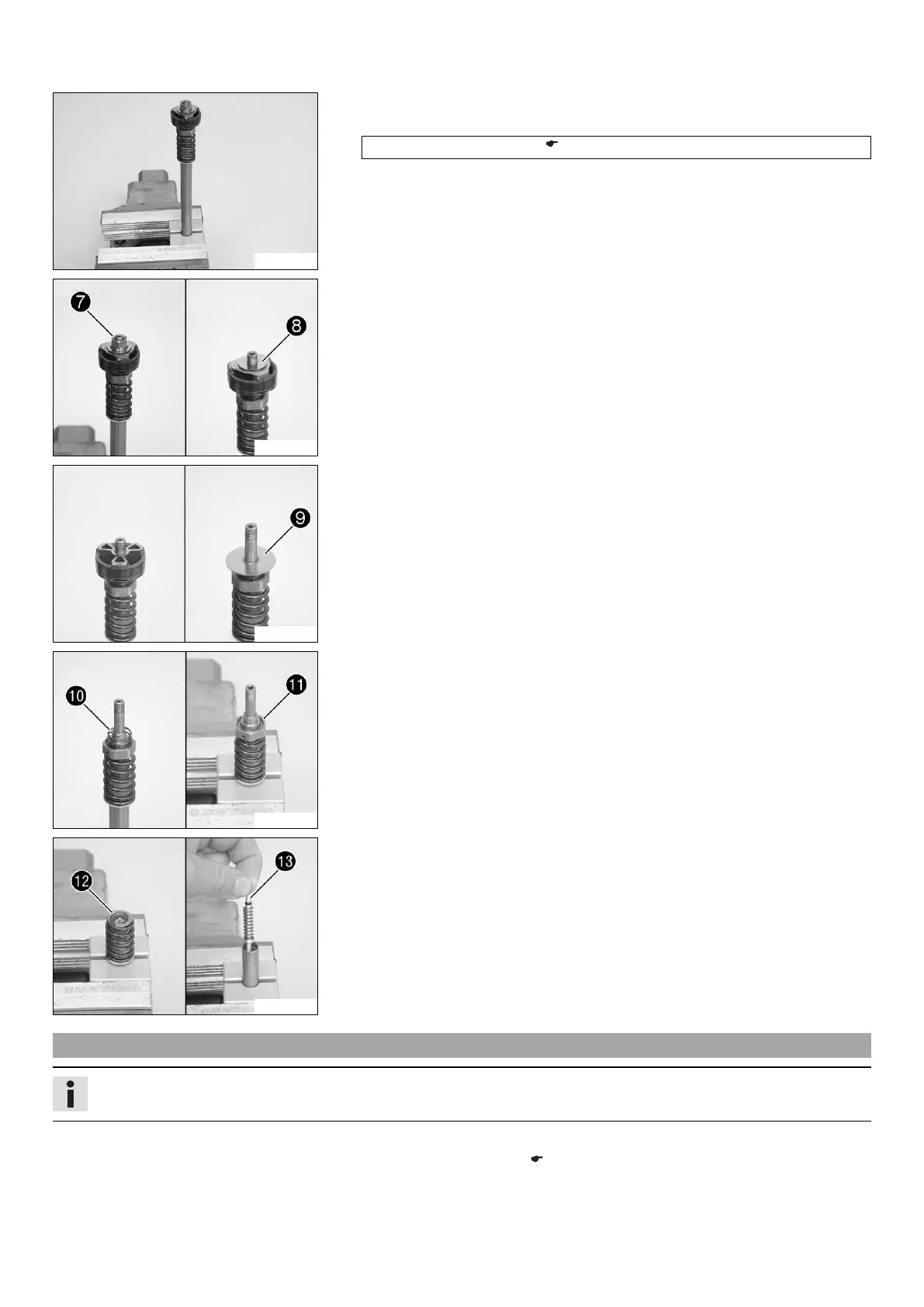

– Degrease the piston rod.
– Clamp the piston rod with the special tool.
Clamping stand (T14016S) ( p. 224)
200698-11
– Remove nut 7.
– Remove shim stack 8 completely.
200699-11
– Remove the piston.
– Completely remove shim stack 9.
200700-10
– Remove spring bk.
– Loosen and remove tap rebound bl.
200701-10
– Remove spring bm.
– Remove valve bn of the rebound damping with the spring.
– Unclamp the piston rod.
6.12 Disassembling the tap compression
Info
The steps are identical for both fork legs.
Preparatory work
– Disassemble the fork legs. ( p. 18)
