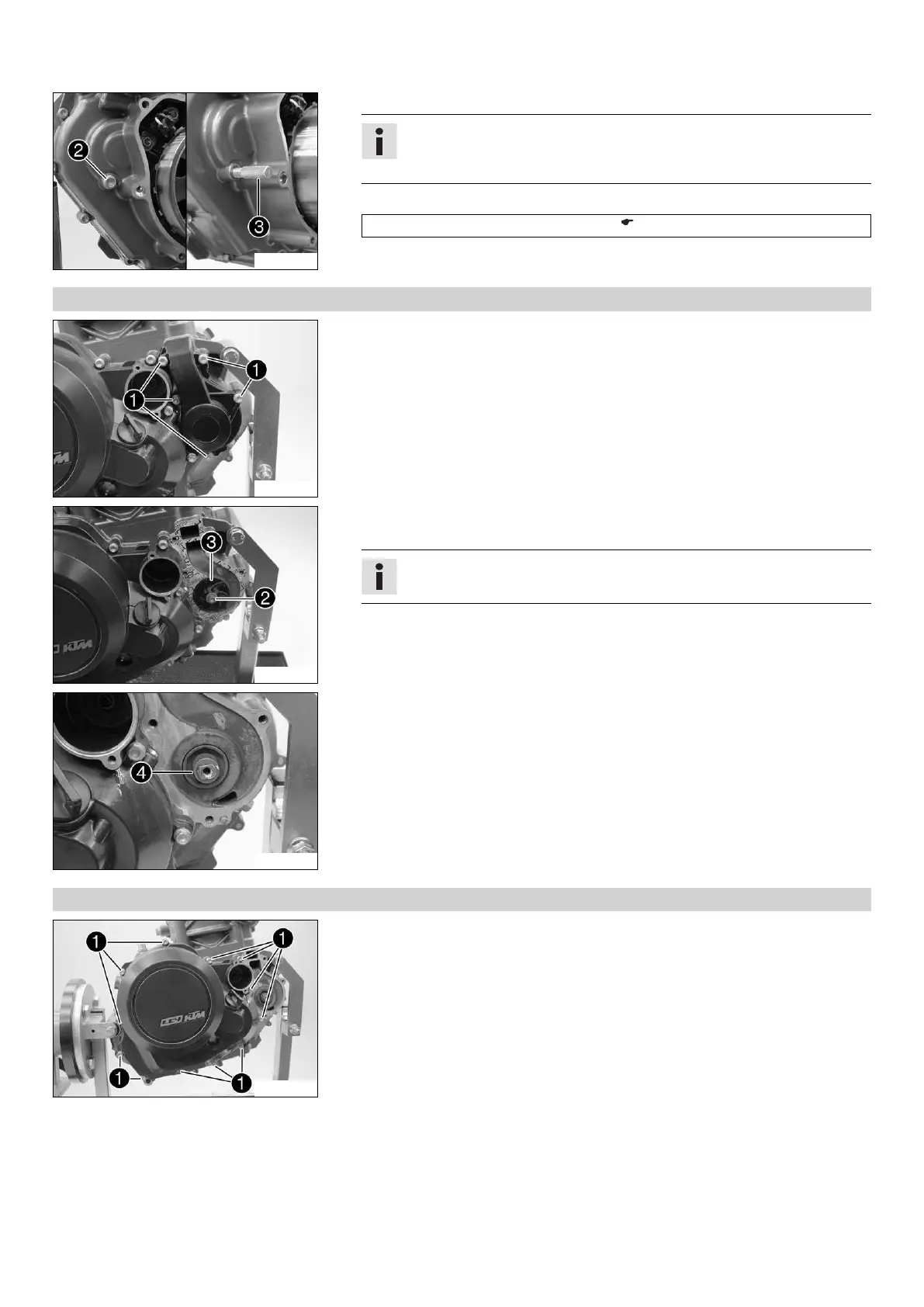

17 ENGINE 113
300024-10
– Remove screw 2.
Info
Look through the hole to check that the position hole of the balancer shaft
is visible.
– Screw in special tool 3.
Engine blocking screw (77329010000) ( p. 222)
17.3.11 Removing water pump wheel
300012-10
– Remove screws 1. Take off the water pump cover.
300013-10
– Remove screw 2. Take off the water pump wheel 3.
– Take off the water pump cover seal.
Info
Do not lose the centering pins.
300014-10
– Remove the shaped washer 4.
17.3.12 Removing clutch cover
300015-10
– Remove screws 1. Take off the clutch cover.
– Take off the dowels. Remove the clutch cover seal.
